| Brand | Cisco |

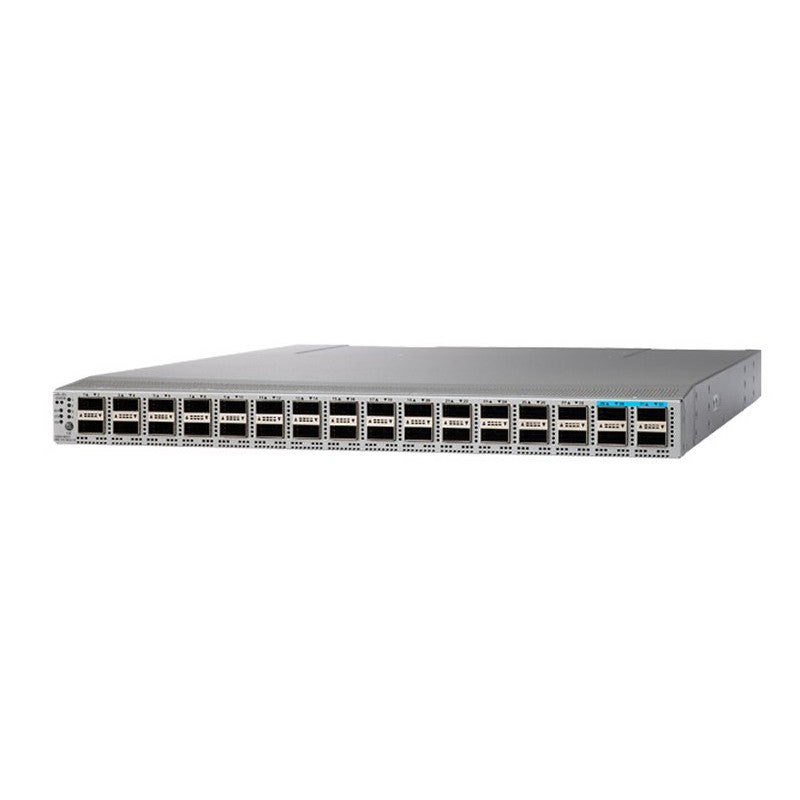

| Model | N9K-C93180LC-EX |
| Series | Cisco Nexus 9300-EX Series Switches |
| Cisco Product Description | Nexus 9K Fixed with up to 32p 40/50G QSFP+ or up to 18p 100G QSFP28 |
| Form Factor | 1RU fixed-port switch |
| Ports, 40/50G QSFP+ | Up to 32 |
| Ports, 100G QSFP28 | Up to 18 |
| Total Bandwidth | 3.6 Tbps |
| Forwarding Rate | Over 2.6 bpps |
| Breakout | Up to 72 x 10G ports using breakout cables |
| CPU | 4 cores |
| System Memory | 24 GB |
| SSD Drive | 64 GB |
| System Buffer | 40 MB |
| Management Ports | 2 (1 RJ-45 and 1 SFP) |
| Console Port | 1 x RS-232 |
| USB Port | 1 |
| Fan Modules | 4 (NXA-FAN-30CFM-B port-side intake, NXA-FAN-30CFM-F port-side exhaust) |
| Fan Fault Behavior | Operates normally if one rotor in any one fan module fails |
| Airflow | Port-side intake or port-side exhaust |
| Power Supplies | Up to 2 (1 for operation and 1 for redundancy) |
| Power Supply Options | 500 W AC, 930 W DC (NXA-PDC-930W-PI, NXA-PDC-930W-PE), 1200 W HVAC/HVDC (N9K-PUV-1200W) |
| AC Input Voltage | 100 to 240 V, 50 to 60 Hz |
| HVAC Input Voltage | 200 to 277 V |
| DC Input Voltage | -48 to -60 V |
| HVDC Input Voltage | -240 to -380 V |
| Typical Power | 220 W |
| Maximum Power | 500 W |
| Heat Dissipation | 1706 BTU per hour |
| Hot-Swappable Modules | Fan modules and power supply modules can be replaced during operation, one at a time |
| Acoustics | 49.9 dBA at 50% fan speed, 66 dBA at 70% fan speed, 73.9 dBA at 100% fan speed |
| Dimensions (H x W x D) | 1.72 x 17.3 x 22.5 in (4.4 x 43.9 x 57.1 cm) |
| Weight, Chassis Without Power Supplies or Fans | 17.2 lb (7.8 kg) |
| Weight, Power Supply Module | 2.42 lb (1.1 kg) |
| Weight, Fan Module | 0.26 lb (0.12 kg) |
| MTBF | 323,440 hours |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Nonoperating Temperature | -40 to 158 F (-40 to 70 C) |
| Humidity | 5% to 95%, noncondensing |
| Operating Altitude | 0 to 13,123 ft (0 to 4,000 m) |
| RoHS Compliance | Yes |
| Related Models | N9K-C93180YC-EX (48 x 1/10/25G SFP, 6 x 40/100G QSFP28), N9K-C93108TC-EX (48 x 10G BASE-T, 6 x 40/100G QSFP28) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
