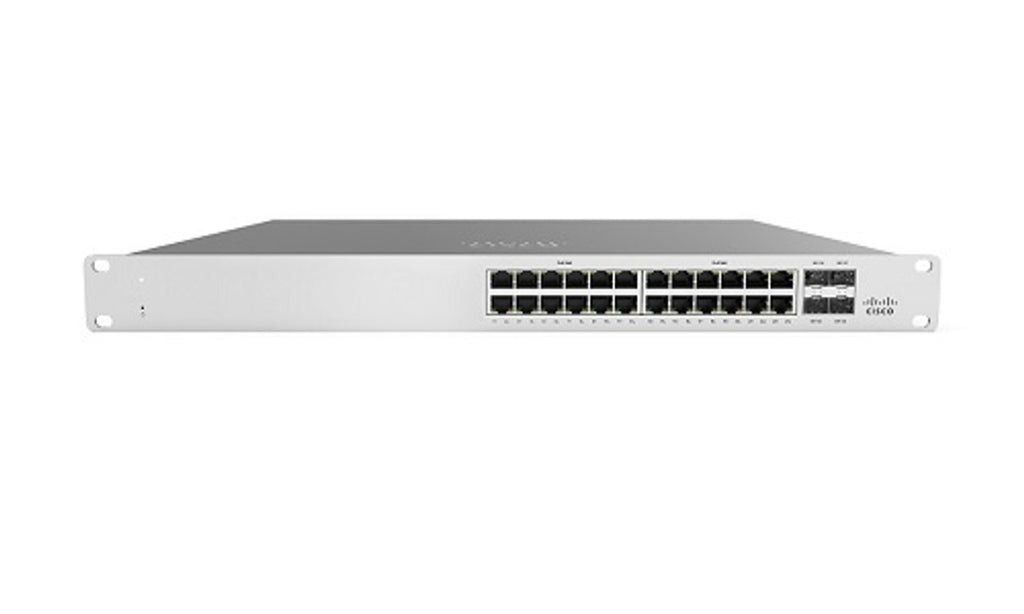

| Manufacturer | Cisco |
| Product Line | Meraki MS120 |
| Series | MS120-24P |
| Product Type | Cloud-Managed Layer 2 Access Switch |
| Access Ports | 24x 10/100/1000Base-T RJ45 PoE+ (auto-negotiation, auto-MDIX) |
| Uplink Ports | 4x 1G SFP |
| Management Port | 1x RJ45 |
| Switching Capacity | 56 Gbps non-blocking |
| Forwarding Rate | 41.67 Mpps |
| MAC Address Table | 16,000 entries |
| PoE Standard | PoE+ (802.3at); up to 30W per port |
| PoE Budget | 370W |
| Power Supply | Fixed internal; 28W idle / 425W full load |
| VLANs | 802.1q |
| Spanning Tree | RSTP, BPDU Guard, Root Guard |
| Link Aggregation | 802.3ad |
| Security | 802.1X, MAB, Hybrid authentication; RADIUS monitoring; DHCP snooping; ACLs |
| QoS | 8 CoS queues per port; DSCP, 802.1p; Layer 7 traffic shaping |
| Additional Features | Port mirroring; Layer 7 application identification |
| Design | Fanless |
| Form Factor | 1U rack-mountable |
| Dimensions | 1.73 x 17.32 x 9.84 in |
| Weight | 9.26 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
