| Brand | Cisco |

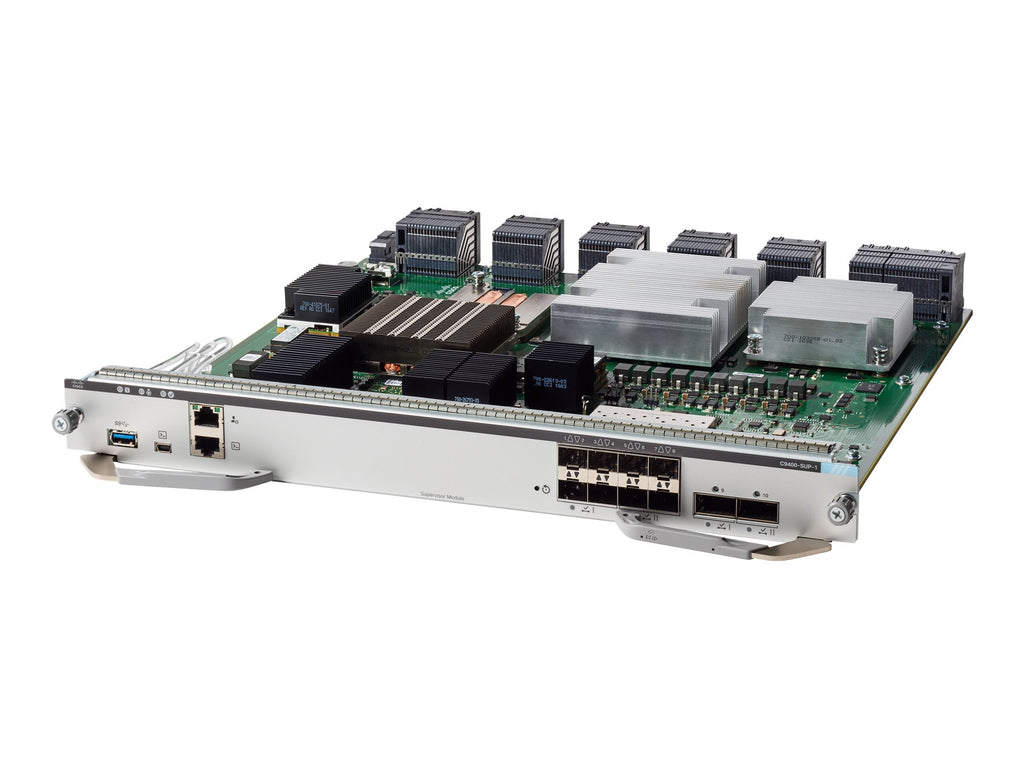

| Model | C9400-SUP-1 |
| Series | Catalyst 9400 Series |
| Type | Supervisor Engine |
| ASIC | UADP 2.0 |
| SFP/SFP+ Uplink Ports | 8 x 1G/10G (ports 1 to 8) |
| QSFP Uplink Ports | 2 x 40G (ports 9 and 10) |
| Uplink Modes (single supervisor) | 8 x 10G; 2 x 40G; or 4 x 10G plus 1 x 40G |
| Uplink Modes (dual supervisors) | Per supervisor: 4 x 10G (ports 1 to 4) or 1 x 40G (port 9) |
| Management Port | 1 x 10/100/1000 RJ-45 Ethernet |
| Console Ports | 1 x RJ-45 serial; 1 x USB mini Type B |
| USB Port | 1 x USB Type A host |
| DRAM | 16 GB DDR4 |
| Flash | 10 GB |
| Optional SSD (sold separately) | M.2 SATA SSD, 240 GB, 480 GB or 960 GB options |
| Bandwidth per Slot | 80 Gbps (C9404R, C9407R and C9410R) |
| Forwarding Rate | 900 Mpps IPv4 |
| Packet Buffer | 96 MB |
| Jumbo Frames | 9216 bytes |
| MAC Addresses | Up to 64,000 |
| IPv4 Routes | Up to 112,000 |
| Multicast Routes | Up to 16,000 |
| Security and QoS ACL Entries | 18,000 each |
| VLAN IDs | 4,096 |
| SVIs | 1,000 |
| Supported Chassis | C9404R, C9407R, C9410R |
| Supervisor Slots | C9404R: 2 and 3; C9407R: 3 and 4; C9410R: 5 and 6 |
| Redundancy | 1+1 supervisor redundancy; NSF/SSO |
| Hot-Swappable Uplink Ports | Yes |
| Minimum Software | C9404R: Cisco IOS XE 16.9.1; C9407R and C9410R: Cisco IOS XE 16.6.1 |
| Maximum Power | 400 W |
| AC Input Power Allocated | 444 W |
| Heat Dissipation | 1516 BTU/hr |
| Related Supervisors (sold separately) | C9400-SUP-1XL (240/120/80 Gbps per slot), C9400-SUP-1XL-Y (adds 25G uplinks), C9400X-SUP-2 (240 Gbps per slot), C9400X-SUP-2XL (480 Gbps per slot) |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in (4.06 x 37.90 x 37.00 cm) |
| Weight | 9.9 lb (4.5 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
