NEW CISCO C6800-8P10G CATALYST 6800 8-PORT 10GE

Roll over image to zoom in Click on image to zoom

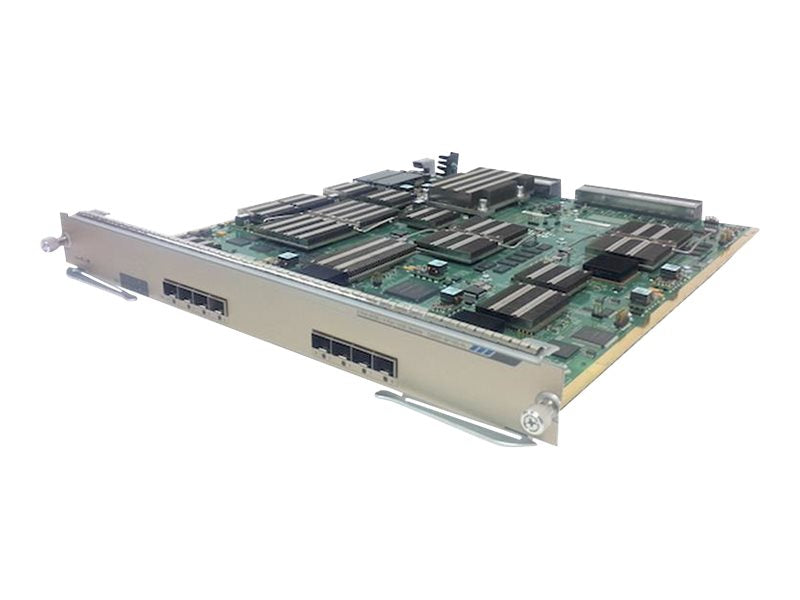

Cisco C6800-8P10G

Cisco C6800-8P10G is part of the Cisco Catalyst 6800 Family of Switches that offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules. C6800-8P10G is the Catalyst 6800 8-port 10-Gigabit Ethernet Fiber Module Spare, it provides two 40G, eight 10G, eight 1G full-duplex transceiver ports.

The modules support hardware-based multicast replication, quality of service (QoS), access control lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. All three share a common ASIC architecture and support the same set of features in hardware. They support Small Form-Factor Pluggable (SFP/SFP+), 10/100/1000M GLC-T (1G copper SFP) transceivers, and 100M FX. The modules are designed to meet the increasing demand for aggregation of 10-Gigabit Ethernet streams in campus deployments, as well as for high-density 10-Gigabit Ethernet transport in the core.

The modules consist of port groups of eight ports each. The 32-port and 16-port modules can operate in either of two modes: 1) oversubscribed mode (default), which provides for maximum port density, using all of the ports with 2:1 oversubscription; and 2) performance mode, which uses half of the ports, enabling line rates and double the port buffer size. The mode of operation can be changed for each eight-port port-group (mixed mode), and is described in more detail in the following sections. The eight-port 10-Gigabit Ethernet Module always operates in performance mode.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit: https://netmode.com/warranty-support/

Device Type	Expansion module
Form Factor	Plug-in module
Ports	10 Gigabit SFP / SFP (mini-GBIC) x 8
Connectivity Technology	Wired
Cabling Type	Ethernet 10GBase-X
Data Link Protocol	10 Gigabit Ethernet
Data Transfer Rate	40 Gbps
Performance	Switching fabric bandwidth: 80 Gbps ¦ Forwarding performance: 60 Mpps
Capacity	Multicast entries (IPv4): 64000 ¦ Multicast entries (IPv6): 64000 ¦ Hardware forwarding entries: 256000 ¦ NetFlow entries: 1000000 ¦ ACL entries: 512000 ¦ Jumbo frame size: 9216
MAC Address Table Size	128K entries
Remote Management Protocol	RMON SMON
Status Indicators	Status link/activity
Features	MPLS support IGMP snooping Low-latency queuing (LLQ) Class-Based Weighted Fair Queuing (CBWFQ) Weighted Random Early Detection (WRED) Access Control List (ACL) support Quality of Service (QoS) Jumbo Frames support MLD snooping Deficit Weighted Round Robin (DWRR) Shaped Round Robin (SRR) NetFlow Virtual Private LAN Service (VPLS)
Compliant Standards	IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.3ak IEEE 802.1ae IEEE 802.3an IEEE 802.3aq
RAM	2 GB
Interfaces	8 - SFP/SFP
Encryption Algorithm	128-bit AES
Compliant Standards	CISPR 22 Class A CISPR 24 EN 61000-3-2 EN 61000-3-3 EN50082-1 EN 61000-6-1 AS/NZS 60950-1 ICES-003 Class A UL 60950-1 IEC 60950-1 EN 60950-1 FCC Part 15 A IEC 60825-1 EN 60825-1 GR-1089-CORE CAN/CSA C22.2 No. 60950 VCCI Class A CNS 13438(95) Class A GR-63-CORE KN22 Class A ETS 300 386 AS/NZS CISPR 22 ETSI 300 019 21 CFR 1040.10 EN 55022 Class A
Power Consumption Operational	303.68 Watt

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.

CISCO C6800-8P10G CATALYST 6800 8-PORT 10GE WITH INTEGRATED DFC4 - New
