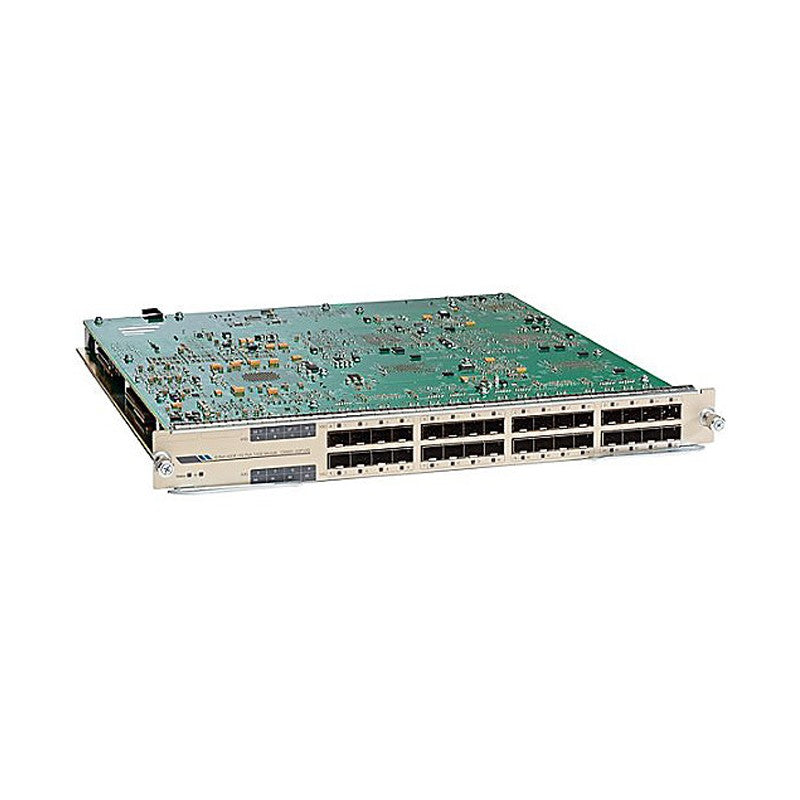

NEW CISCO C6800-32P10G-XL CATALYST 6800 32-PORT 10GE W/ DUAL INTEGRATED DFC4

Roll over image to zoom in Click on image to zoom

NEW CISCO C6800-32P10G-XL CATALYST 6800 32-PORT 10GE W/ DUAL INTEGRATED DFC4

New Cisco C6800-32P10G-XL Catalyst 6800 32-Port 10GE W/ Dual Integrated DFC4 part of the Cisco Catalyst 6800 Family Switches offer a variety of 10-Gigabit Ethernet modules. Working in conjunction with the Catalyst 6500-E/6807-XL Supervisor Engine 2T/2TXL (VS-S2T-10G & VS-S2T-10GXL), they can serve different needs on campus deployments. The family includes three modules: the Catalyst 6800 32-port, 16-port, and 8-port 10-Gigabit Ethernet Fiber Modules.

The modules support hardware-based multicast replication, quality of service (QoS), access control lists (ACLs), jumbo frames, and low latency to enable secure and predictable performance for bandwidth-intensive applications. All three share a common ASIC architecture and support the same set of features in hardware. They support Small Form-Factor Pluggable (SFP/SFP+), 10/100/1000M GLC-T (1G copper SFP) transceivers, and 100M FX. The modules are designed to meet the increasing demand for aggregation of 10-Gigabit Ethernet streams in campus deployments, as well as for high-density 10-Gigabit Ethernet transport in the core.

The modules consist of port groups of eight ports each. The 32-port and 16-port modules can operate in either of two modes: 1) oversubscribed mode (default), which provides for maximum port density, using all of the ports with 2:1 oversubscription; and 2) performance mode, which uses half of the ports, enabling line rates and double the port buffer size. The mode of operation can be changed for each eight-port port-group (mixed mode), and is described in more detail in the following sections. The eight-port 10-Gigabit Ethernet Module always operates in performance mode.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Product Code	C6800-32P10G-XL=
Ports per module	·32 ports—Thirty-two 1G ports, or thirty-two 10G ports, or eight 40G ports·Ports are numbered left to right. ·The top row has odd numbered ports 1 to 31. ·The bottom row has even numbered ports 2 to 32.·4 port groups. Port ranges per port group: ·1, 3, 5, 7, 9,11, 13, 15 ·2, 4, 6, 8, 10, 12, 14, 16 ·17, 19, 21, 23, 25, 27, 29, 31 18, 20, 22, 24, 26, 28, 30, 32
Backplane connection	160-Gbps backplane bandwidth in 6807XL; 80 Gbps backplane bandwidth in 6500-E chassis
Chassis/slot support	Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL. Can occupy any slot in Cisco Catalyst 6503E, 6504E, 6506E, 6509E, and 6509-V-E. Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E
Distributed forwarding and performance	Comes equipped with factory-installed dual (2) DFC4-E or DFC4-EXL daughter cards
Maximum frame size	Up to 9216 bytes per frame
Module oversubscription rate	·2:1 oversubscription in a Cisco Catalyst 6807-XL chassis. (When all thirty-two 10G ports are used.)·4:1 oversubscription in a Cisco Catalyst 6500 E-series chassis.(When all thirty-two 10G ports are used.)
Supervisor engine support	Supervisor Engine 2T-10GE Supervisor Engine 6T
Software support	With Supervisor Engine 2T-10GE —Cisco IOS Release 15.2(1)SY or later With Supervisor Engine 6T – Cisco IOS Release 15.3(1)SY or later
Fabric channel speed	In a Cisco Catalyst 6807-XL chassis—160 GB per second In a Cisco Catalyst 6500-E series chassis—80 GB per second
TDR support	Supported with GLC-T (1G Copper SFP) transceivers
Digital Optical Monitoring (DOM) support	The DOM-supported 1G transceivers and 10G Fiber SFP/SFP transceivers
Port connector type	LC (optical) or RJ-45 (copper) depending on the SFP transceiver installed. Depending on the distance between the end ports, different QSFP transceivers can be used
Dimensions (H x W x D)	1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
Weight	14.33 lb (6.5 kg)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
