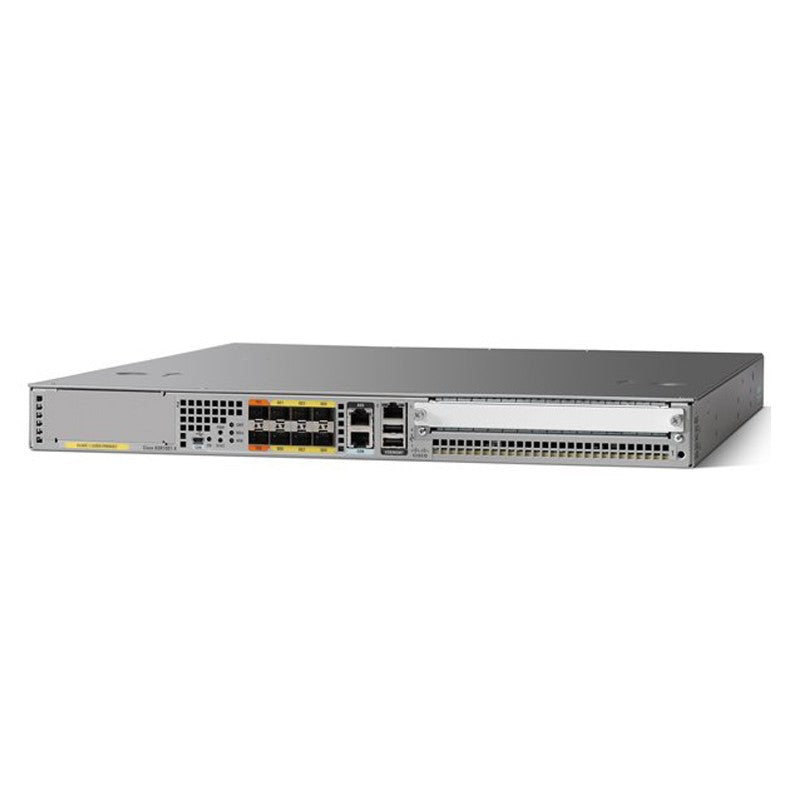

| Device Type | Router - with Cisco ASR 1000 Series Embedded Services Processor 2.5Gbps |
| Enclosure Type | Rack-mountable - modular - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance | Bandwidth: 2.5 Gbps |
| Network / Transport Protocol | IPSec |
| Encryption Algorithm | AES |
| Features | Firewall protection VPN support |
| Compliant Standards | EN55022 UL 60950 CISPR 22 EN50082-1 EN 61000-6-1 AS/NZS 60950-1 EMC ICES-003 Class A FCC CFR47 Part 15 IEC 60950-1 EN 60950-1 AS/NZS CAN/CSA C22.2 No. 60950-1-03 VCCI Class A EN 55024: CISPR 24:2010 EN 300 386 |
| Processor | 1 x |
| RAM | 8 MB (installed) / 16 GB (max) |
| Status Indicators | Power status alarm console |
| Interfaces | Management: 1 x 10Base-T/100Base-TX - RJ-45 ¦ Management: 1 x console - RJ-45 ¦ Management: 1 x auxiliary - RJ-45 ¦ USB: 1 x console ¦ USB: 2 x 4 pin USB Type A ¦ 6 x SFP (mini-GBIC) ¦ 2 x SFP |
| Expansion Slots | 1 (total) / 0 (free) x expansion slot |
| Installed Modules Qty (Max) | 0 (installed) / 1 (max) |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 (installed) / 2 (max) |
| OS Provided | Cisco IOS Universal |
| Width | 17.3 in |
| Depth | 22.5 in |
| Height | 1.7 in |
| Weight | 0.4 oz |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 5 - 85% |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
