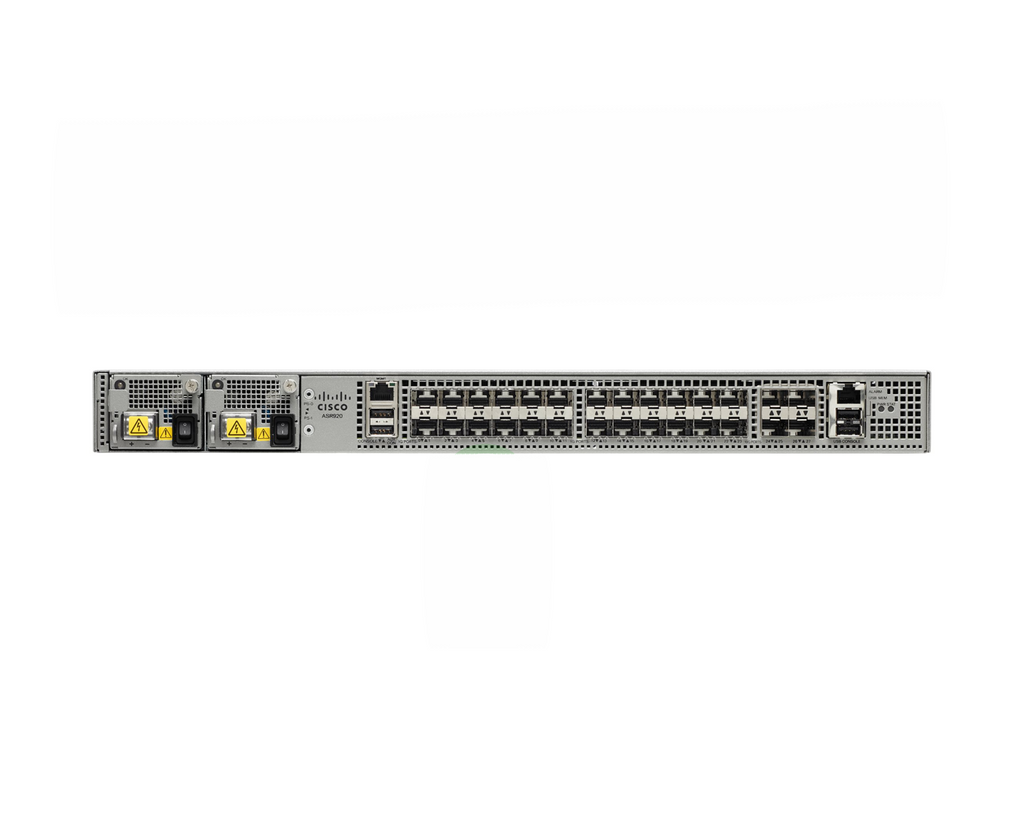

| Device Type | Router |
| Enclosure Type | Front to back airflow rack-mountable - 1U |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet 10 Gigabit Ethernet |
| Features | Access Control List (ACL) support Virtual Private LAN Service (VPLS) |
| Compliant Standards | ETSI BSMI CISPR 22 Class A EN55022 IEC 61000-4-11 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-8 VCCI Class A ITE EN55024 EN50082-1 EN 61000-6-1 ACA TS001 AS/NZS 60950-1 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 ICES-003 Class A EN 61000-4-5 EN 61000-4-11 FCC CFR47 Part 15 EN 61000-4-8 EN 60825 FDA EN 300 386 |
| Status Indicators | Power status fan |
| Interfaces | 24 x 1000Base-X - SFP (mini-GBIC) | 2 x 10Gb Ethernet - SFP | 1 x console | Management: 1 x | 1 x auxiliary | Alarm: 1 x RJ-45 | USB: 1 x console | USB: 1 x |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Installed Qty | 2 |
| Voltage Required | AC 100/230 V (50 - 60 Hz) |
| Power Consumption Operational | 145 Watt |
| Rack Mounting Kit | Optional |
| Width | 17.5 in |
| Depth | 9.4 in |
| Height | 1.7 in |
| Weight | 12.19 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
