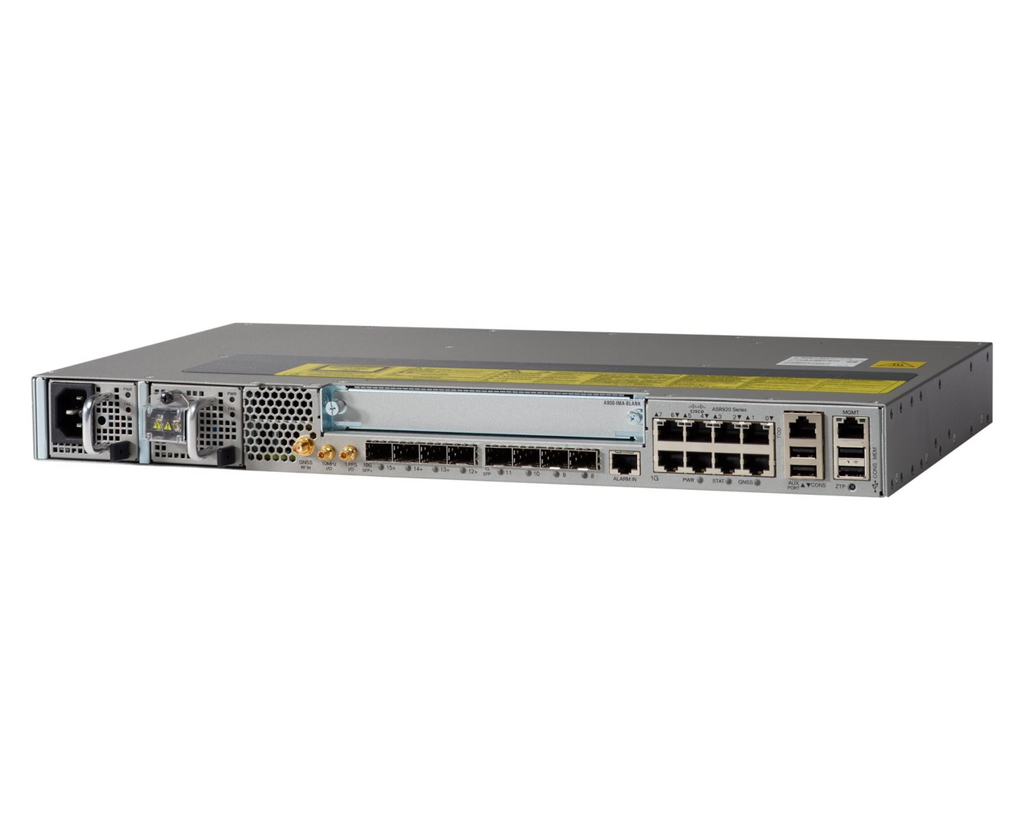

| Series | ASR 920 Series Aggregation Services Router |
| Fixed Ports | 8x 10/100/1000 copper GE, 4x SFP GE, 4x dual-rate SFP+ (1G or 10G) |
| Interface Module Slot | 1 field-replaceable IM slot; supports 8-port copper or SFP GE modules, 8/16/32-port T1/E1 modules, and 10GE XFP or SFP+ modules |
| Timing | Built-in GNSS receiver for grandmaster clock, Synchronous Ethernet (SyncE), IEEE 1588 PTP, Synchronization Status Messages (SSM) |
| Routing | MPLS-based Layer 2 and Layer 3 VPN, VPLS |
| Security | Hardware crypto engine for IPSec |
| Power Consumption | Max 150W, typical 130W (without PoE) |
| Power Input | AC 85 to 264V, nominal 100 to 240VAC, 47 to 63Hz; DC -18 to -32VDC or -40 to -72VDC, nominal -24/-48/-60VDC |
| Power Supplies | 2 power supplies, AC or DC, redundant configuration |
| MTBF | 407,230 hours |
| Operating Temperature | -40° to 70°C, up to 1000 feet (300m) |
| Storage Environment | -40° to 70°C, up to 15000 feet (4570m) |
| Humidity | 5 to 95 percent, noncondensing |
| Acoustic Noise | Maximum 59 dBA sound pressure level at bystander position, 20°C operation |
| Seismic | Zone 4 |
| Airflow | Front-to-Back |
| Dimensions | 1.73 x 17.5 x 9.88 in. (44 x 444.5 x 250.95 mm), 1RU |
| Weight | 4.83 kg (10.65 lb) |
| Mounting | 19-inch or 23-inch rail, ETSI 300mm cabinet, or wall mount |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
