| Brand | Juniper |

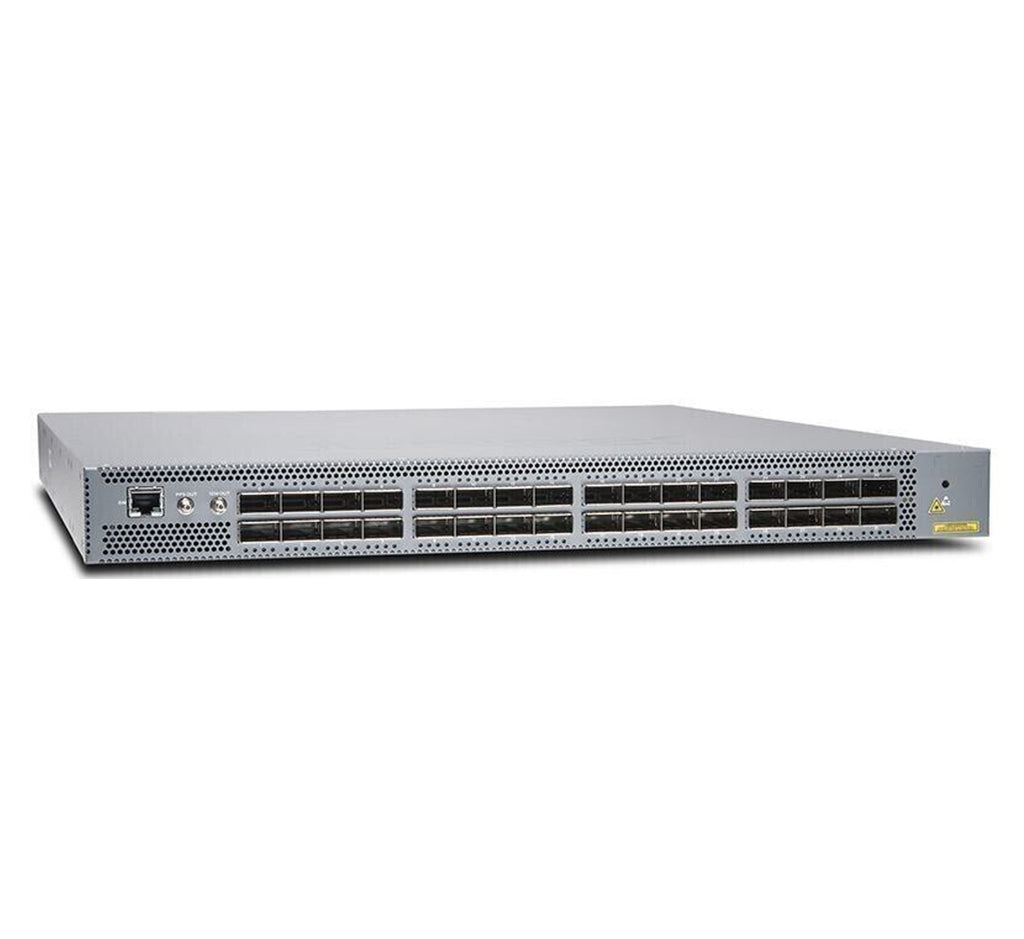

| Model | QFX5200-32C-AFO2 |
| Series | Juniper QFX5200 Series |
| Product Type | Fixed 1U access, aggregation and lean spine switch |
| Rack Units | 1 U |
| QSFP28 Ports | 32 |
| Default Port Speed | 100GbE |
| Configurable Port Speeds | 100GbE, 50GbE, 40GbE, 25GbE, 10GbE |
| Channelization | 100GbE as 2 x 50GbE or 4 x 25GbE; 40GbE as 4 x 10GbE |
| Port Densities | 128 x 10/25GbE, 64 x 50GbE, 32 x 40/100GbE |
| Throughput | 6.4 Tbps bidirectional, 3.2 Tbps unidirectional |
| Forwarding Capacity | 3.2 Bpps |
| Latency | 420 ns |
| Packet Buffer | 16 MB |
| MAC Addresses | 136,000 |
| ARP Entries | 32,000 |
| IPv4 Unicast Routes | 128,000 |
| IPv4 Multicast Routes | 52,000 |
| VLAN IDs | 4096 |
| Jumbo Frame | 9216 bytes |
| CPU | 1.8 GHz quad-core Intel |
| DRAM | 16 GB |
| Internal Storage | 64 GB SSD |
| Power Supplies | 2 x 850 W AC, JPSU-850W-AC-AFO, 1+1 redundancy, hot-swappable |
| Fan Modules | 5 x QFX5200-32C-FANAFO, 4+1 redundancy, hot-swappable |
| Maximum Power Consumption | 312 W |
| Airflow Direction | Front-to-back (port-to-FRU) |
| Airflow Volume | 130 CFM |
| Console Port | 1 x RJ-45 |
| Management Ports | 1 x RJ-45, 2 x SFP |
| USB Port | 1 x Type A |
| Timing Ports | 10 MHz, PPS and timing |
| Dimensions (H x W x D) | 1.72 x 17.36 x 20.48 in (4.37 x 44.09 x 52.02 cm) |
| Weight | 23.8 lb (10.79 kg) |
| Operating Temperature | 32 to 104 F (0 to 40 C) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Operating Humidity | 5% to 90%, noncondensing |
| Nonoperating Humidity | 5% to 95%, noncondensing |
| Operating Altitude | 10,000 ft (3048 m) |
| Related Models | QFX5200-32C-DC-AFO2 (DC power supplies) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
