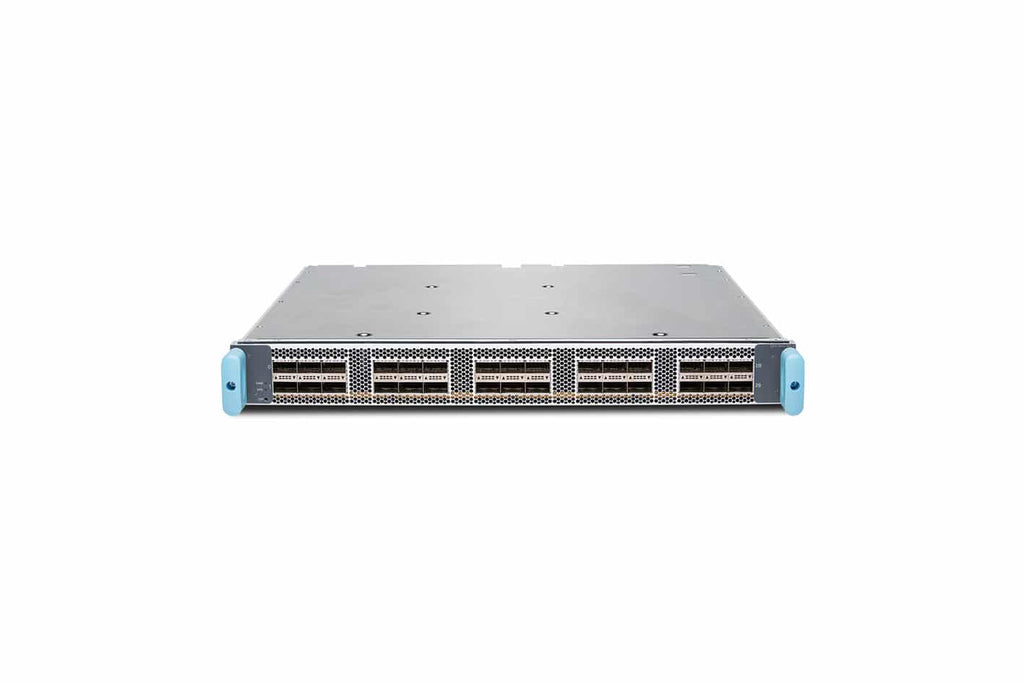

| Manufacturer | Juniper Networks |
| Product Line | Juniper QFX Series |
| Series | QFX10000 |
| Product Type | Switch Line Card, plug-in module |
| Ports | 30 x 100GbE QSFP28 / 40GbE QSFP+ |
| Port Speed | 100GbE or 40GbE (auto-detected per transceiver) |
| 10GbE Breakout | Up to 96 x 10GbE (4x10G channelization per 40GbE port via fiber breakout cable) |
| Max 100GbE Port Density | 30 |
| Max 40GbE Port Density | 30 |
| Max 10GbE Port Density | 96 |
| Packet Buffer | 12 GB (100 ms per port) |
| Queue Architecture | Virtual Output Queue (VOQ), no head-of-line blocking |
| Per-Slot Fabric Bandwidth | 7.2 Tbps (full duplex) |
| ASIC | Juniper Q5 (custom, per-port ASIC association) |
| MACsec | No (use QFX10000-30C-M for MACsec) |
| Hot-Swap | Yes, field-replaceable unit (FRU) |
| Compatible Chassis | QFX10008 (up to 48 Tbps system), QFX10016 (up to 96 Tbps system) |
| Layer 3 | BGP, OSPF, IS-IS, MPLS, EVPN, VXLAN, MC-LAG, DCI, GRE, PIM |
| Operating System | Junos OS |
| Dimensions | 17.20 x 1.89 x 20.54 in. |
| Weight | 27.00 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
