Juniper MX104-AC SFP RE-S-MX104 w/ x2 PWR-MX104-AC - Universal Edge Router

Roll over image to zoom in Click on image to zoom

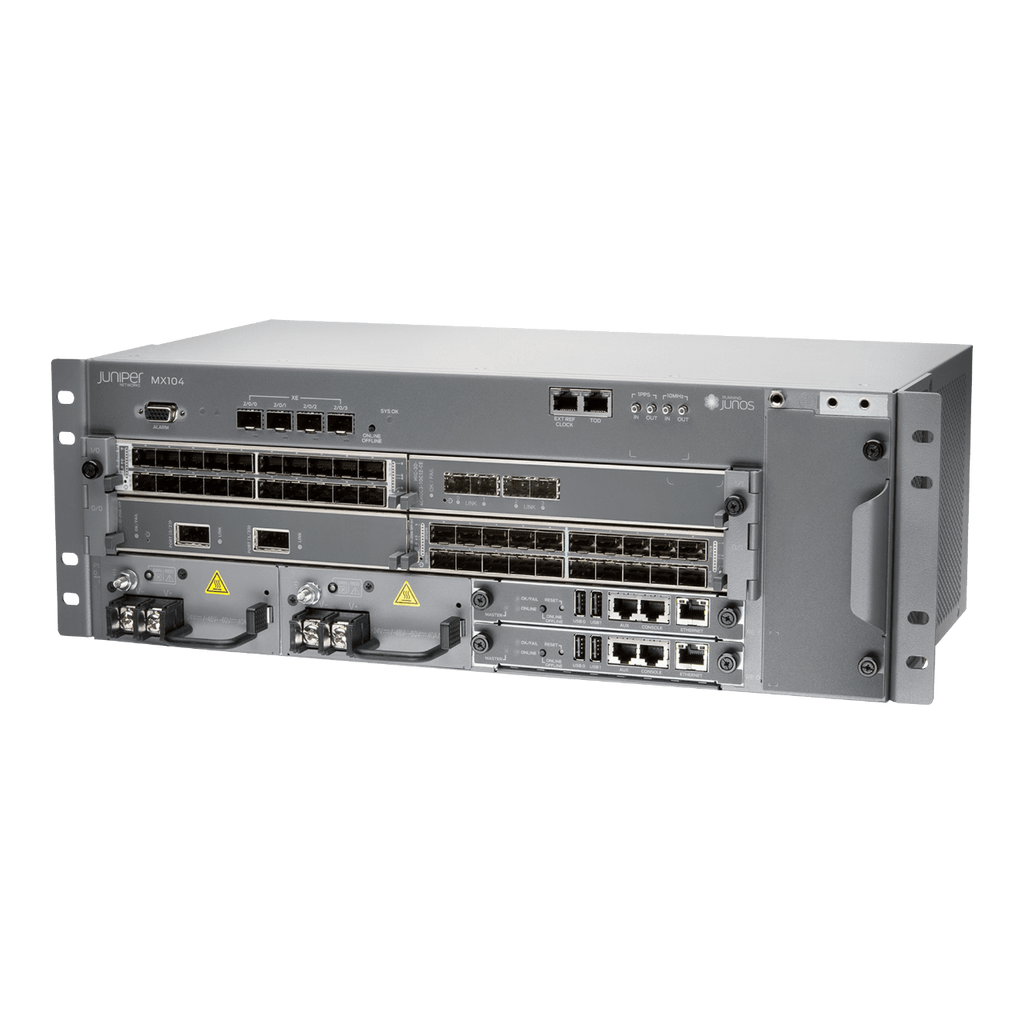

Juniper MX104-AC

The MX104 Universal Routing Platform provides an ideal solution for space- and power-constrained environments. It offers 80-Gbps capacity and a redundant control plane for high availability. It features four fixed 10GbE ports and four Modular Interface Card (MIC) slots for flexible network connectivity and virtualized services.

Optimized for mobile applications and central offices, the MX104 is ETSI 300-compliant and hardened for outside cabinets and remote terminals. It also supports advanced timing features.

Powered by Junos OS and the programmable Trio chipset, the MX104 has the same advanced routing, switching, security, and features as other large MX Series platforms. It supports a wide range of Layer 2 and Layer 3 VPN services and advanced broadband network gateway functions.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Product Name	MX104 Chassis with 4MIC Slots 4X10GE SFP Built-In Port Licenses Required
Product Type	Router Chassis
Ethernet Technology	10 Gigabit Ethernet
Number of Total Expansion Slots	8
Product Family	MX
Redundant Power Supply Supported	Yes
Form Factor	Rack-mountable Desktop
Powerline	No
Management Port	Yes
PoE (RJ-45) Port	No
Height	6.1"
Width	17.5"
Depth	9.5"
Expansion Slot Type	Modular Interface Card (MIC) SFP
Product Series	MX
Product Model	MX104-AC
Limited Warranty	1 Year
Token Ring Port	No
USB	Yes
Serial V.35 Interface	No
Security Features	NAT
Input Voltage	110 V AC 220 V AC

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
