| Manufacturer | Juniper |
| Product Line | MX Series (MPC10E) |
| Product Type | Modular Port Concentrator |
| QSFP28 Ports | 12x (10/40/100GbE) |
| QSFP56-DD Ports | 3x (10/40/100/400GbE) |
| License Tier | Perpetual Base — 128K FIB, 8 VRFs, 128K MAC, Standard Junos Features |

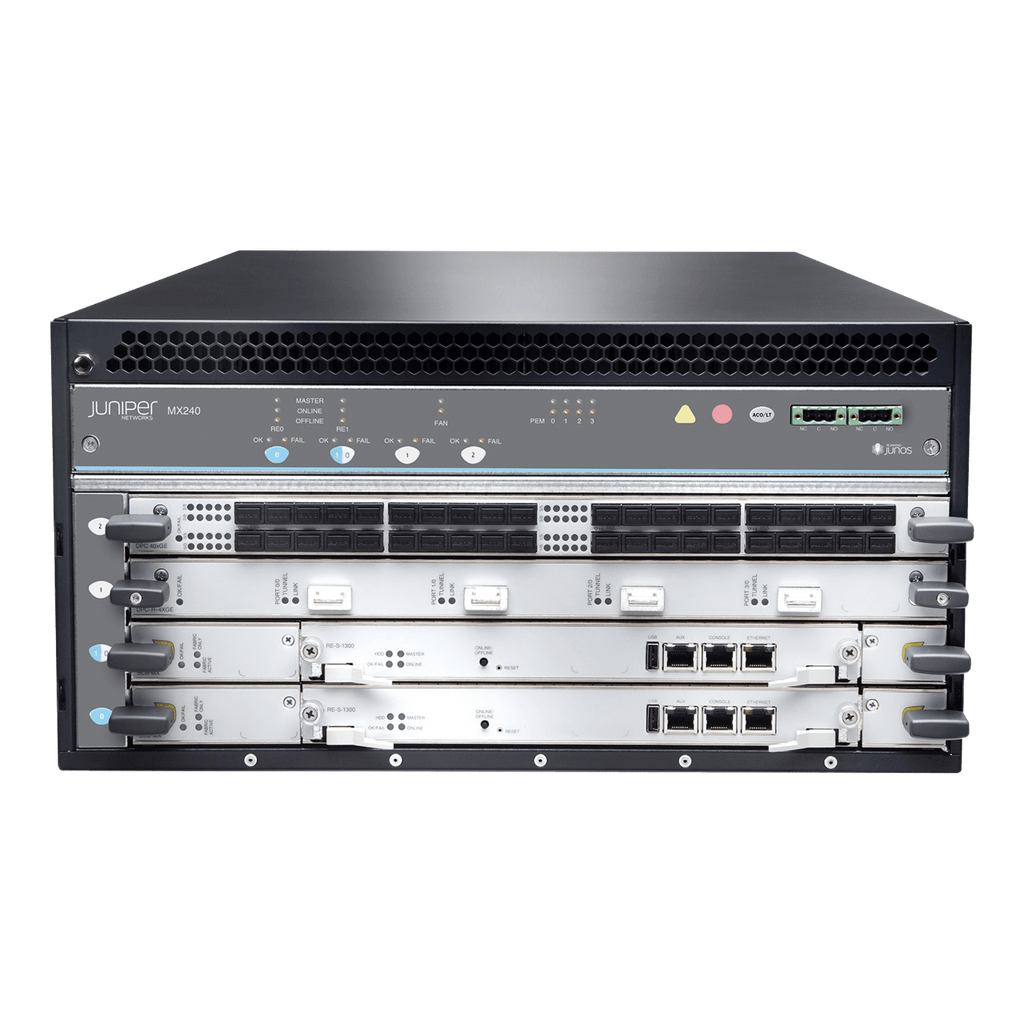

| Compatible Chassis | MX240, MX480, MX960, MX2008, MX2010, MX2020 |
| Line-Rate Throughput (Enhanced Midplane) | Up To 1.5 Tbps |
| Line-Rate Throughput (Standard Midplane) | Up To 800 Gbps |
| Packet Forwarding Engines | 3, 500 Gbps Each |
| Silicon | Juniper Trio 5 |
| Onboard Processor (PMB) | 1.6GHz 8-Core Intel Broadwell CPU, 100GB SATA SSD, 32GB ECC DDR4 DRAM |
| MTU (Transit / Host-Bound) | 256-16,000 Bytes / 256-9,500 Bytes |
| Required Switch Control Boards | 3x SCBE3-MX (MX960), 2x SCBE3-MX (MX240/MX480) |
| MX960 Slot Restriction | Not Supported In Slots 0, 1, 11 |
| Security | MACsec (10/25/40/100Gbps Ports), Secure Boot |
| Power (At 1.5Tbps Line-Rate) | 785W at 104°F (40°C) / 720W at 77°F (25°C) |
| Operating Temperature | Up To 104°F (40°C) |
| Cooling | Front-to-Back Airflow, High-Capacity Fan Trays Required |
| Weight | 20.4 lb (9.25 kg) |
| Form Factor | Half-Height Slot |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
