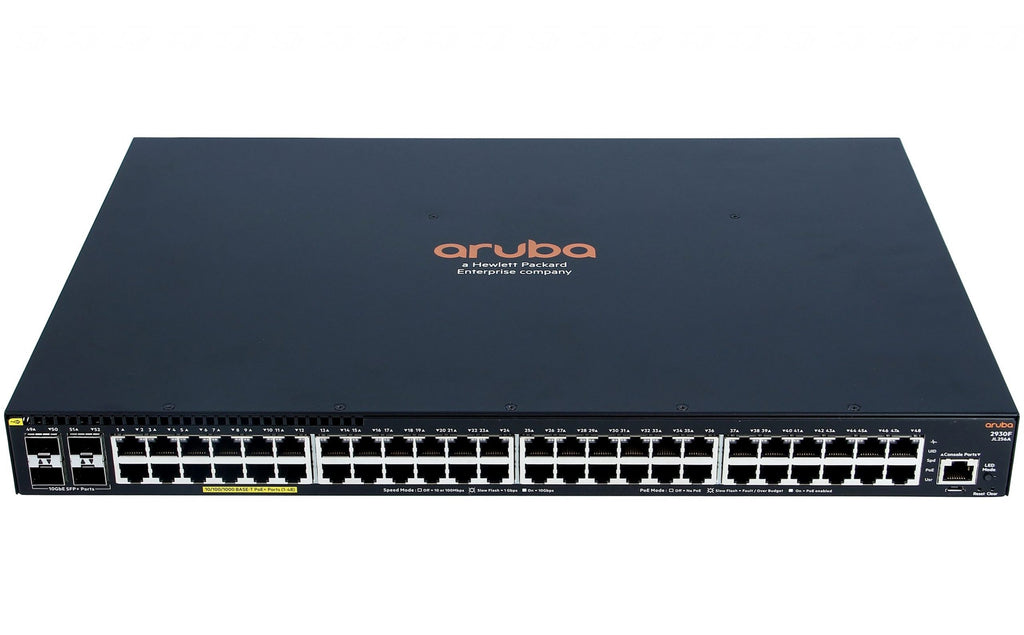

| Manufacturer | HPE Aruba |
| Product Line | 2930F Series |
| Product Type | Layer 3 Managed Switch |
| Access Ports | 48x Autosensing 10/100/1000 PoE+ (RJ-45) |
| Uplink Ports | 4x SFP+ (1/10GbE, PHY-Less) |
| Console Port | 1x Dual-Personality (RJ-45 or USB Micro-B) |
| PoE Budget | 370W |
| Switching Capacity | 176 Gbps |
| Throughput | Up To 112 Mpps |
| Latency | 3.8µs (1 Gbps) / 1.6µs (10 Gbps) |
| CPU | Dual-Core ARM Cortex A9 @ 1016 MHz |
| RAM | 1GB DDR3 SDRAM |
| Packet Buffer | 12.38MB (4.5MB Ingress / 7.875MB Egress) |
| Flash | 4GB eMMC |
| MAC Address Table | 32,768 entries |
| IPv4/IPv6 Routing (Hardware) | 2,000 / 1,000 entries |
| VLANs | 4,094 IDs, 512 Simultaneous |
| Jumbo Frames | Up To 9,220 Bytes |
| Stacking | Virtual Stacking Framework (VSF), Up To 8 Members |
| Routing Protocols | OSPF, RIP, BGP, IGMP, Static IPv4/IPv6 |
| Licensing | No Software Licensing Required |
| Power Input | 100-127/200-240VAC, 50/60Hz |
| Max Power Consumption | 459W |
| Idle Power | 48.6W |
| Heat Dissipation | 293.0 BTU/hr |
| Operating Temperature | 32 to 113°F (0 to 45°C) |
| Altitude | Up To 15,000 ft |
| Dimensions (W x D x H) | 17.42 x 11.98 x 1.73 in |
| Weight | 9.83 lb (4.46 kg) |
| Form Factor | 1U Rack Mountable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
