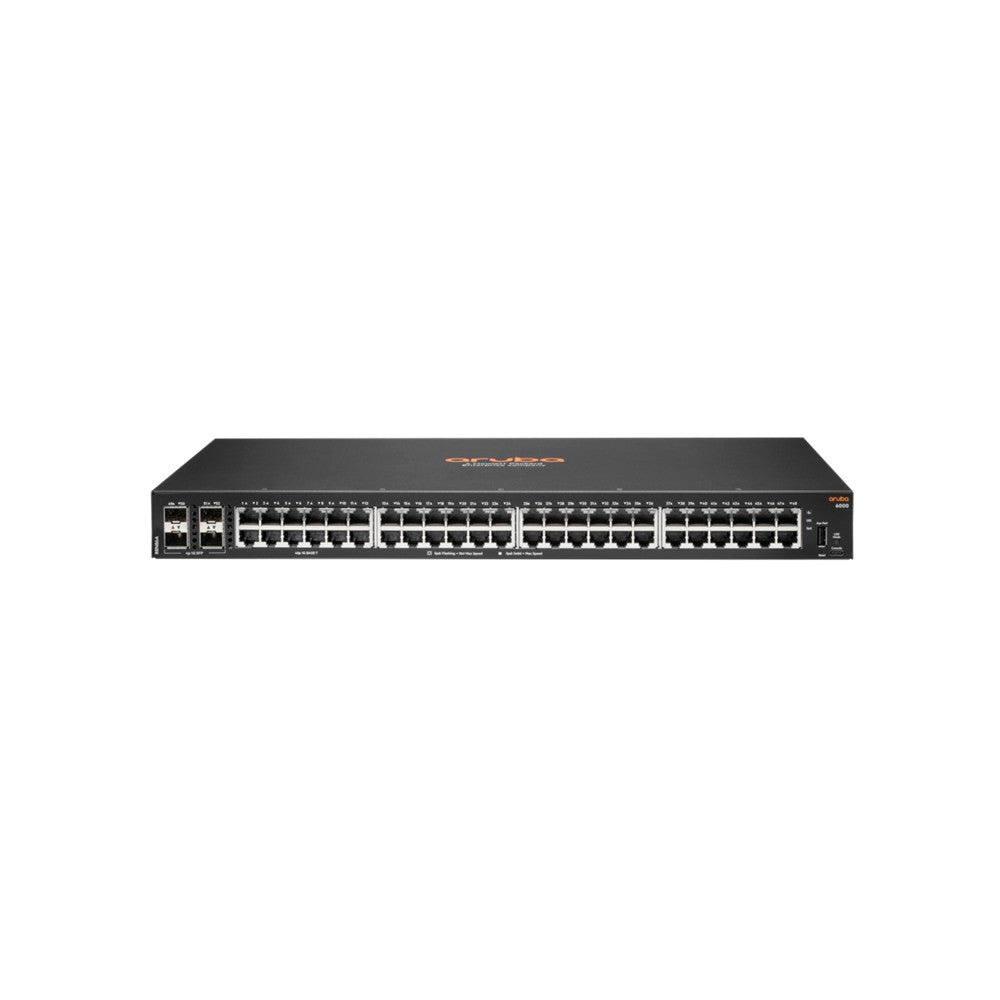

HPE Aruba R8N86A 6000 Series 48x1G Switch
Roll over image to zoom in Click on image to zoom
HPE Aruba R8N86A 6000 Series 48x1G Switch

HPE Aruba R8N86A 6000 Series 48x1G Switch

Condition:  refurbished     MPN:  R8N86A
Price:
$1,395.00
Stock:
In stock
View full product specifications

Overview

R8N86A specification
General
Device Type Switch - 48 ports - L3 - managed - stackable
Enclosure Type Side to side airflow rack-mountable 1U
Subtype Gigabit Ethernet
Ports 48 x 10/100/1000 4 x Gigabit SFP
Performance Packet buffer size: 12.38 MB | Throughput: 77.3 Mpps | Switching capacity: 104 Gbps | Latency (1 Gbps): 1.9 µs
Capacity Switched virtual interfaces (SVIs): 16 | ARP entries: 1024 | IPv4 routes (Unicast): 512 | IPv6 routes (Unicast): 512 | IGMP groups: 512 | MLD groups: 512 | IPv4 ACL entries (ingress): 256 | IPv6 ACL entries (ingress): 128 | MAC ACL entries (ingress): 256
MAC Address Table Size 8192 entries
Jumbo Frame Support 9198 bytes
Routing Protocol IGMPv2, IGMP, IGMPv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, CLI, ICMP, DHCP, RADIUS
Encryption Algorithm SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS , Secure Shell v.2 (SSH2)
Features Flow control, BOOTP support, ARP support, VLAN support, DiffServ support, IPv6 support, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, MLD snooping, Trusted Platform Module (TPM), LACP support, LLDP support, DHCP client, Management Information Base (MIB), Neighbor Discovery Protocol (NDP), SNMP support, Internet Control Message Protocol (ICMP), DNS client, LLDP-MED, User Datagram Protocol (UDP), Rapid Reconfiguration of Spanning Tree (RSTP), IPv6 addressing, UDP support, Any Source Multicast (ASM)
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.3az
Processor 1 x ARM A9: 1.016 GHz
RAM 4 GB DDR3 SDRAM
Flash Memory 16 GB
Expansion / Connectivity
Interfaces 48 x 10/100/1000 Base-T RJ-45 | 4 x Gigabit LAN SFP | 1 x USB Type A | 1 x USB-C console
Power
Power Device Internal power supply
Voltage Required AC 100 - 127 V / 200 - 240 V (50/60 Hz)
Power Consumption Operational 44.2 Watt
Miscellaneous
Compliant Standards CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950, CNS 13438, IEC 60825-1 Class 1, EN 55024:2010, EN 60825-1:2007, FCC CFR47 Part 15 A, ICES-003 issue 6 Class A, UL 62368-1 Second Edition, CISPR 32 Class A, EN 62368-1:2014, VCCI-CISPR 32:2016 Class A, CISPR 35, EN 55035:2017, EN 55032:2015/AC:2016-07 Class A, IEC 62368-1 Second Edition
Dimensions
Width 17.4 in
Depth 9.7 in
Height 1.7 in
Manufacturer Warranty
Service & Support Limited warranty - lifetime
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Humidity Range Operating 15 - 95% (non-condensing)
Min Storage Temperature -40 °F
Max Storage Temperature 158 °F
Humidity Range Storage 15 - 90% (non-condensing)

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
