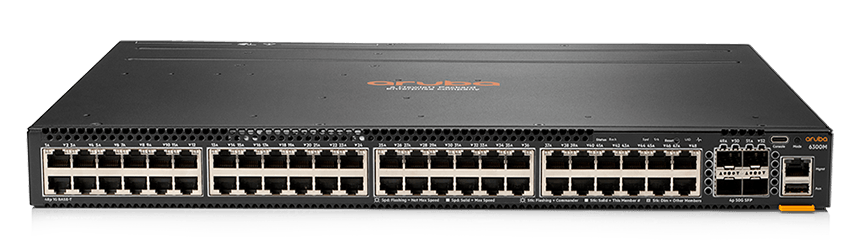

HPE Aruba JL663A CX 6300M 48-Port GbE 4x SFP56 Layer 3 Stackable Switch - New

Roll over image to zoom in Click on image to zoom

HPE Aruba JL663A CX 6300M 48-Port GbE 4x SFP56 Layer 3 Stackable Switch - New

Condition: new MPN: JL663A

Price:

$2,205.00

Stock:

In stock

Quantity:

Tech Overview

The HPE Aruba JL663A is a 1RU modular Layer 3 stackable access switch from the Aruba CX 6300M Series with 48x 10/100/1000BASE-T RJ-45 ports (non-PoE) and 4x SFP56 uplink ports configurable at 1G/10G/25G/50G. Switching capacity is 496 Gbps with 369 Mpps throughput. VSF stacking supports up to 10 members with up to 200 Gbps stacking bandwidth. Runs AOS-CX with BGP, OSPF, EVPN/VXLAN, VRF, and MACsec 256. For the PoE variant see JL662A.

View full product specifications

The HPE Aruba JL663A is a 1RU modular Layer 3 stackable access switch from the Aruba CX 6300M Series, designed for enterprise campus, aggregation, and data center top-of-rack deployments requiring high-density standard Gigabit access with 50G uplink flexibility. The switch provides 48 10/100/1000BASE-T RJ-45 ports (non-PoE) and four SFP56 uplink ports configurable at 1G/10G/25G/50G for high-speed stacking or core connectivity. Switching capacity is 496 Gbps with a throughput of 369 Mpps. VSF stacking supports up to 10 members via chain or ring topology with up to 200 Gbps of stacking bandwidth. The CX 6300M runs AOS-CX, a microservices-based programmable OS supporting BGP, OSPF, EVPN/VXLAN, VRF, MACsec 256, and Dynamic Segmentation. The Network Analytics Engine provides telemetry and automated monitoring. Power supplies and fan trays are hot-swappable. The JL663A is the 48-port non-PoE GbE variant of the CX 6300M lineup, differentiated from the JL662A by higher port density and the absence of PoE.

Manufacturer	HPE Aruba
Part Number	JL663A
Product Line	Aruba CX 6300M Series
Product Type	Layer 3 Modular Stackable Access Switch
Access Ports	48x 10/100/1000BASE-T RJ-45 (non-PoE)
Uplink/Stacking Ports	4x SFP56 (1G/10G/25G/50G; also used for VSF stacking)
Switching Capacity	496 Gbps
Throughput	369 Mpps
Latency	2.28 µs (1 Gbps); 1.46 µs (10 Gbps); 1.90 µs (25 Gbps)
Stacking	VSF up to 10 members; chain or ring; up to 200 Gbps stacking bandwidth
CPU	Quad-core ARM Cortex-A72 @ 1.8 GHz; 8 GB DDR4; 32 GB eMMC
Operating System	AOS-CX (microservices-based; programmable; modular Linux architecture)
Layer 3	BGP; OSPF; EVPN/VXLAN; VRF; static; IPv4/IPv6; Dynamic Segmentation
Security	MACsec 256; 802.1X; ACLs; DHCP snooping; DAI; Dynamic Segmentation; role-based access
Management	Aruba Central (cloud); AirWave; web GUI; CLI; REST APIs; Switch Multi-Edit; NAE telemetry; CX Mobile App
Hot-Swappable	Power supplies and fan trays
Power Supply	Not included; minimum 1 PSU required (JL086A 680W; JL087A 1050W; JL670A 1600W — ordered separately)
Console/Mgmt Ports	1x USB-C console; 1x OOBM; 1x USB-A
Form Factor	1RU rack-mountable; modular (CX 6300M)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
