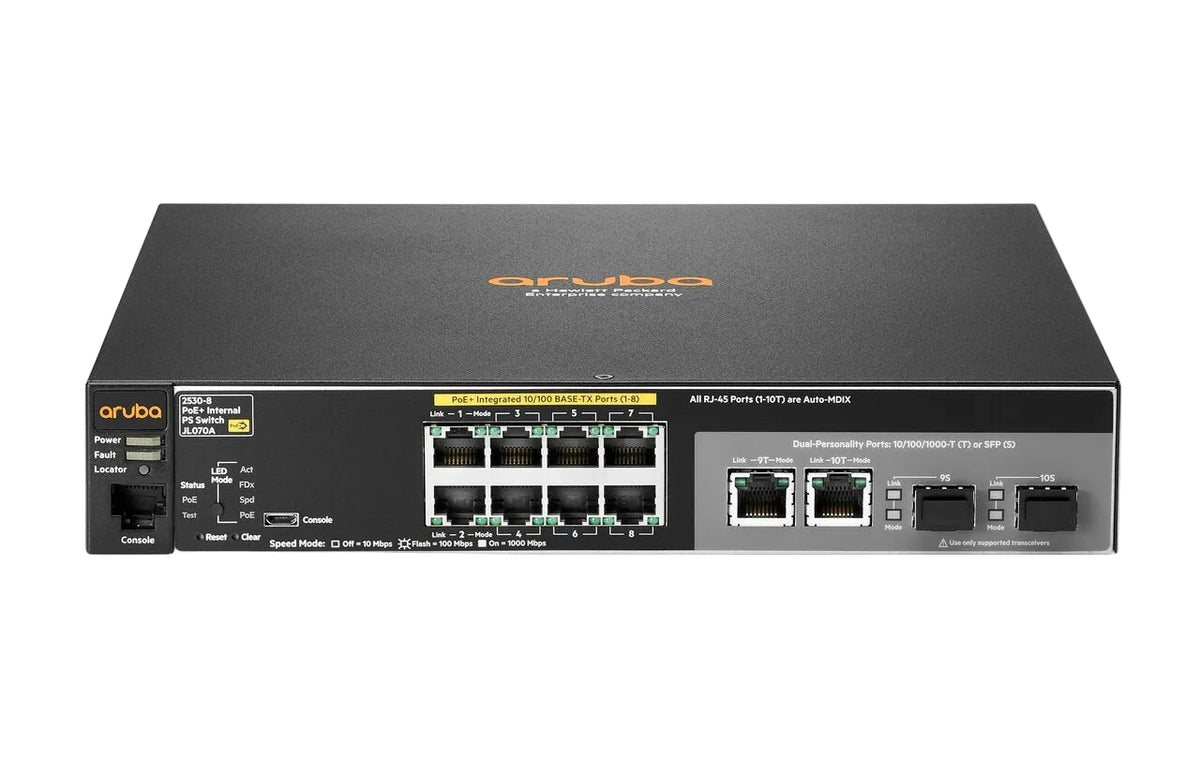

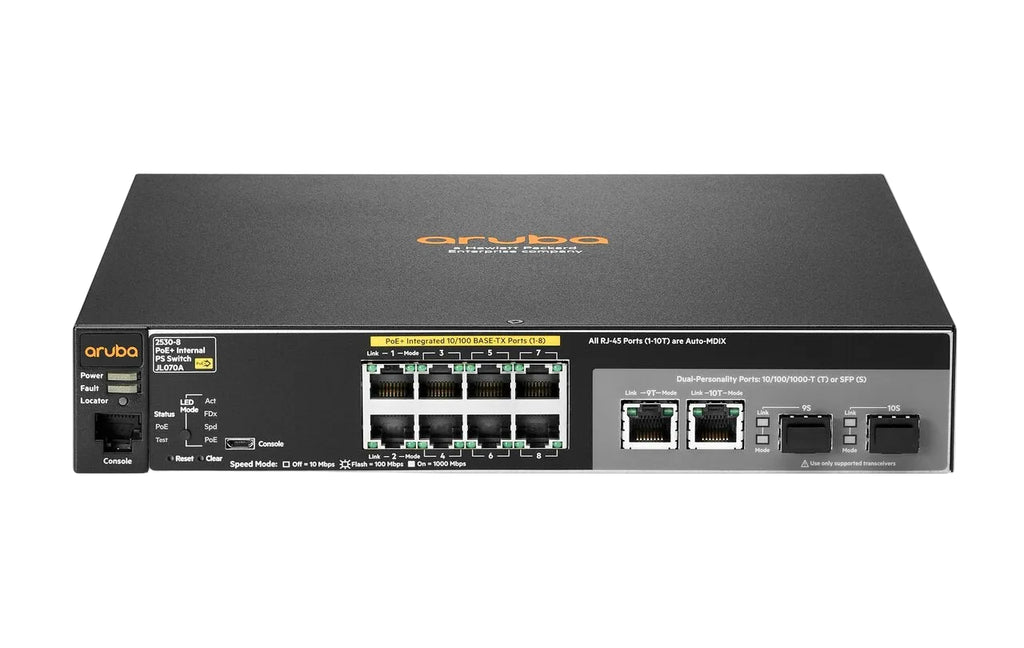

| Brand | HPE Aruba |
| Model | JL070A |
| Series | Aruba 2530 Switch Series |
| Type | Managed Layer 2 PoE+ Switch |
| 10/100 PoE+ RJ-45 Ports | 8 (802.3at, Auto-MDIX, half or full duplex) |
| Dual-Personality Ports | 2 (each RJ-45 10/100/1000 or SFP) |
| Serial Console Port | 1 (RJ-45 or USB micro-B) |
| PoE Power Budget | 67 W total, up to 30 W per port |
| Switching Capacity | 5.6 Gbps |
| Throughput | Up to 4.1 Mpps (64-byte packets) |
| Latency, 100 Mb and 1000 Mb | Less than 1.3 microseconds (64-byte packets) |
| MAC Address Table | 16,000 entries |
| Processor | ARM9E, 800 MHz |
| Memory | 256 MB DDR3 |
| Flash | 128 MB |
| Packet Buffer | 1.5 MB, dynamically allocated |
| IPv6 | IPv6 Ready Certified |
| Management | Command line interface, web browser, configuration menu, IMC, out-of-band serial (RS-232C or micro-USB) |
| Power Source | Internal power supply |
| Input Voltage | 100 to 127 VAC / 200 to 240 VAC, 50 or 60 Hz |
| Rated Current | 0.9 A / 0.5 A |
| Maximum Power | 70.2 W |
| Idle Power | 5.3 W |
| Heat Dissipation | 29 BTU/hr (switch only), 239 BTU/hr (with maximum PoE load) |
| Acoustic Noise | 0 dB power, 0 dB pressure |
| Operating Temperature | 0 C to 45 C (32 F to 113 F) |
| Operating Humidity | 15% to 95% at 40 C, non-condensing |
| Storage Temperature | -40 C to 70 C (-40 F to 158 F) |
| Storage Humidity | 15% to 90% at 65 C, non-condensing |
| Altitude | Up to 10,000 ft (3 km) |
| Mounting | 19 in EIA rack (rack mount kit sold separately), horizontal surface, wall |
| Rack Units | 1U |
| Dimensions (W x D x H) | 10 x 9.68 x 1.75 in (25.4 x 24.59 x 4.45 cm) |
| Weight | 4.65 lb (2.11 kg) |
| Compatible SFP Transceivers | J9054D (100M SFP LC FX, 2 km MMF), J4858D (1G SFP LC SX, 500 m OM2 MMF), J4859D (1G SFP LC LX, 10 km SMF), J4860D (1G SFP LC LH, 70 km SMF) |
| Compatible Accessories (sold separately) | J9700A (X510 1U cable guard), J9583B (X414 1U 4-post rack mount kit), JL448A (X2C2 RJ-45 to DB9 console cable) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
