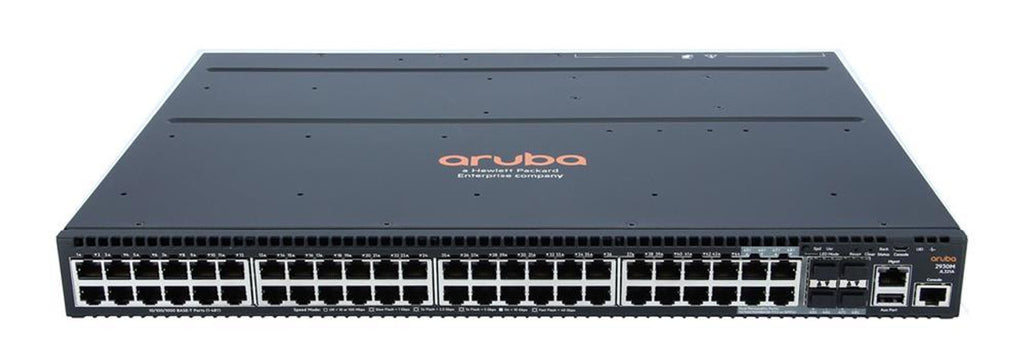

| <tbody> <tr> <td> Aruba 2930M 48G 1-slot Switch (JL321A)</td></tr> <tr> <td> I/O ports and slots</td> <td> 44 Autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASETX, IEEE 802.3ab Type 1000Base-T); Duplex | 10BASE-T/100BASE-TX:half or full;1000BASE-T:full only</td></tr> <tr> <td> 4 Combo 10/100/1000BASE-T or 100/1000Mbps SFP Ports</td></tr> <tr> <td> Additional ports and slots</td> <td> 1 Dual Personality (RJ-45 or USB Micro-B) serial console port 1 USB A port for uploading/ downloading files 1 100BASE-T Out of Band Management Port 1 Uplink Slot 1 Stacking Module Slot 2 Power Supply Slots (power supplies not included)</td></tr> <tr> <td> Physical characteristics</td> <td> Dimensions</td> <td> 1.73" (Height) x 17.42" (Width) x 12.77" (Depth) (4.39cm x 44.25cm x 32.43cm)</td></tr> <tr> <td> Weight</td> <td> 10.14 lbs 4.60 kg</td></tr> <tr> <td> Memory and processor</td> <td> Dual Core ARM Cortex A9 @ 1016 MHz</td></tr> <tr> <td> 1 GB DDR3 SDRAM</td></tr> <tr> <td> Packet Buffer Size: 12.38 MB 4.5MB Ingress/7.875MB Egress</td></tr> <tr> <td> 4GB eMMC</td></tr> <tr> <td> Performance</td> <td> IPv6 Ready certified</td> <td> </td></tr> <tr> <td> 10 Mbps Latency</td> <td> < 98.5us (FIFO 64 byte packets)</td></tr> <tr> <td> 100 Mbps Latency</td> <td> <11.8us (FIFO 64-byte Packets)</td></tr> <tr> <td> 1000 Mbps Latency</td> <td> < 3.1us (FIFO 64-byte packets)</td></tr> <tr> <td> 10Gbps Latency</td> <td> <3.4us (FIFO 64-byte packets)</td></tr> <tr> <td> Throughput</td> <td> Up to 112 Mpps</td></tr> <tr> <td> Stacking Performance</td> <td> 100 Gbps</td></tr> <tr> <td> Switching Capacity</td> <td> 176 Gbps</td></tr> <tr> <td> Switching Capacity (including Stacking)</td> <td> 276 Gbps</td></tr> <tr> <td> Routing table Size</td> <td> 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP</td></tr> <tr> <td> Mac Address Table Size</td> <td> 32768 entries</td></tr> <tr> <td> Environment</td> <td> Operating temperature</td> <td> 32˚ F to 131˚F (0° C to 55° C) up to 5000ft, 32˚ F to 122˚F (0° C to 50° C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft</td></tr> <tr> <td> Operating relative humidity</td> <td> 15%to 95% (Non-condens- ing) 10,000 ft</td></tr> <tr> <td> Non-operating/Storage temperature</td> <td> -40°C to 70°C up to 15000 ft</td></tr> <tr> <td> Non-operating/Storage relative humidity</td> <td> 90% at 65°C (non-condens- ing); 15,000 ft</td></tr> <tr> <td> Acoustic</td> <td> Sound Power LWaD=4.1 Bel, Sound Pressure LpAm, Bystander = 23.7 dB</td></tr> <tr> <td> Electrical Characteristics</td> <td> Primary Airflow direction </td> <td> Front to Back</td></tr> <tr> <td> Electrical Characteristics</td> <td> Frequency</td> <td> 50/60Hz</td></tr> <tr> <td> Maximum Heat Dissipation</td> <td> 263 BTU/hr 278kJ/hr</td></tr> <tr> <td> Voltage</td> <td> JL085A PSU: 100-127/200- 240</td></tr> <tr> <td> Current</td> <td> JL085A PSU: 1A/0.5A</td></tr> <tr> <td> Maximum power rating</td> <td> 78W</td></tr> <tr> <td> Idle Power</td> <td> 52W</td></tr> <tr> <td> PoE Power(Max Possible)</td> <td> N/A</td></tr> <tr> <td> Hibernate Power</td> <td> 11W</td></tr> <tr> <td> </tr></tbody> |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
