| Manufacturer | Dell EMC |

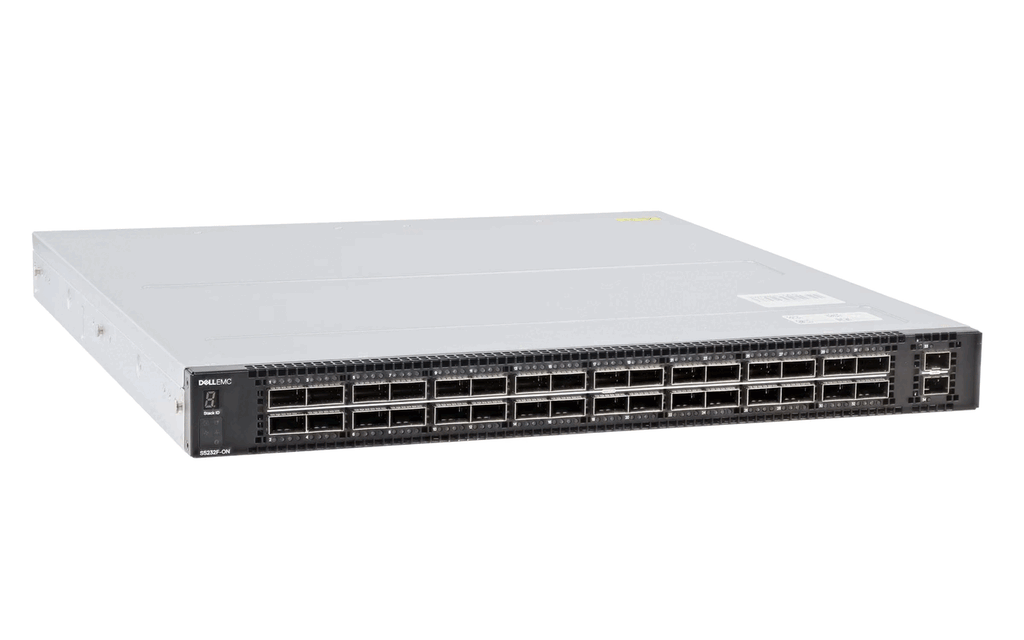

| Part Number | S5232F-ON |
| Product Line | PowerSwitch S5200-ON Series |
| Product Type | Open Networking Data Center Spine/Leaf/ToR Switch |
| QSFP28 Ports | 32x multi-rate (40GbE or 100GbE per port) |
| Breakout Capacity | 128x 10GbE or 128x 25GbE (via QSFP28 breakout cable) |
| Management Ports | 2x 10GbE SFP+; 1x RJ-45 OOB management; 1x RJ-45 console; 1x USB 2.0 |
| Switching Capacity | 6.4 Tbps (full duplex; nonblocking) |
| Forwarding Rate | 2,380 Mpps |
| Latency | Sub-877 ns |
| Packet Buffer | 32 MB |
| Timing | IEEE 1588v2 PTP hardware timestamping |
| Operating System | Dell EMC SmartFabric OS10; Enterprise SONiC by Dell Technologies; ONIE-compatible |
| Layer 3 Routing | OSPF; BGP; IS-IS; EVPN; VXLAN; MPLS; VLT; mVLT; static routing; IPv4/IPv6 |
| DCB / RoCE | PFC; DCBX; ETS — lossless fabric support |
| High Availability | VLT; mVLT; active/active; 2x hot-swap PSU (1+1); 4x hot-swap fans |
| Airflow | Front-to-back or back-to-front — order by SKU suffix |
| Power Consumption | 360W typical; 635W max |
| Form Factor | 1RU rack-mountable |
| Dimensions (H x W x D) | 1.7 x 17.1 x 18.1 in (4.4 x 43.4 x 46.0 cm) |
| Weight | 21.6 lbs (9.8 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
