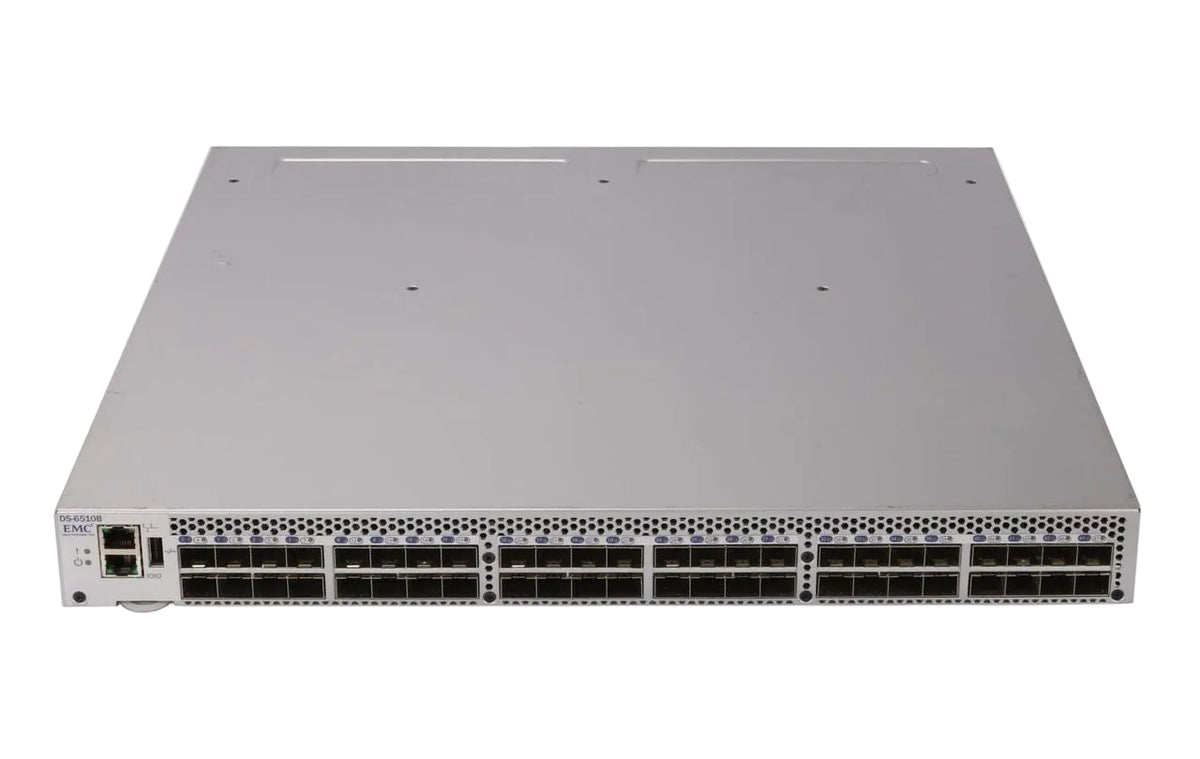

| Brand | Dell EMC |
| Model | DS-6510B |
| Series | Connectrix DS-6500B Switches |
| Product Type | 16 Gbps Fibre Channel SAN switch, 48 ports |
| Rack Height | 1U |
| Rack Mount | 19-inch cabinet conforming to EIA 310 |
| Standard Ports | 24 (16 Gbps or 8 Gbps) |
| Port Configurations | 24, 36 or 48 ports, in 12-port increments |
| Port Upgrades | 36 or 48 ports via Ports On Demand (POD) |
| Port Speeds | 2, 4, 8 and 16 Gbps, auto-sensing |
| Port Types | D_Port, E_Port, EX_Port, F_Port, M_Port; U_Port self-discovery; universal E, F, M, FL or N ports |
| Access Gateway Mode | F_Port and NPIV-enabled N_Port |
| Media Type | Hot-pluggable SFP+ (2, 4, 8, 10, 16 Gbps), LC connector |
| Aggregate Bandwidth | 768 Gbps (48 ports x 16 Gbps x 2, full duplex) |
| Latency, Locally Switched Ports | 700 ns |
| Frame Buffers | 8,192 per 24-port group, dynamically allocated |
| Maximum Frame Size | 2,112-byte payload |
| Classes of Service | Class 2, Class 3, Class F (inter-switch frames) |
| Data Traffic Types | Fabric switches supporting unicast |
| Fabric Services | Simple Name Server, RSCN, NTP, RADIUS, LDAP, switch and port binding, Reliable Commit Service, Advanced Zoning, Advanced Web Tools |
| ISL Compression and Encryption | In-flight, up to 2 ports at 16 Gbps or 4 ports at 8 Gbps |
| Diagnostics | D_Port offline diagnostics, POST, embedded online and offline diagnostics, RAS trace logging, FCping, Pathinfo |
| Management Ports | 10/100 Mbps Ethernet (RJ-45), in-band over Fibre Channel, RJ-45 serial, 1 USB |
| Management Interfaces | HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH, CLI, Advanced Web Tools, Auditing, Syslog, SMI-S compliant |
| Firmware Upgrades | Non-disruptive download and activation |
| Power Supplies | Dual, hot-swappable, redundant, with integrated system cooling fans |
| Airflow | Front to back or back to front, set by the power supply and fan unit option |
| AC Input Voltage | 85 to 264 V |
| AC Input Current | 5 to 2.5 A |
| AC Input Frequency | 47 to 63 Hz |
| Power Consumption, 48 Ports Populated | 110 W with 16 Gbps SWL optics |
| Power Consumption, Empty Chassis | 72 W without optics |
| Heat Dissipation | 338 BTU/hr with 48 ports |
| Dimensions (H x W x D) | 1.7 x 17.23 x 17.45 in. (43.18 x 437.6 x 443.23 mm) |
| Weight | 20.20 lb (9.16 kg) with two power supply FRUs, without transceivers |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Non-Operating Temperature | -25 to 70 C (-13 to 158 F) |
| Operating Humidity | 10 to 85% non-condensing |
| Non-Operating and Storage Humidity | 10 to 90% non-condensing |
| Operating Altitude | Up to 3,000 m (9,842 ft) |
| Shock | Operating 20 G, 6 ms half-sine; non-operating 33 G, 11 ms half-sine |
| Vibration | Operating 0.5 G sine, 0.4 grms random, 5 to 500 Hz; non-operating 2.0 G sine, 1.1 grms random, 5 to 500 Hz |
| Regulatory Compliance | UL 60950, FCC Part 15 Class A, CSA No. 60950, ICES-003 Class A, VCCI Class A, EN 60950, EN 55022 Level A, EN 55024, CNS 13438 Class A, IEC 60950 |
| Related Models | DS-6505B (1U, 12 or 24 ports), DS-6520B (2U, 48, 72 or 96 ports) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
