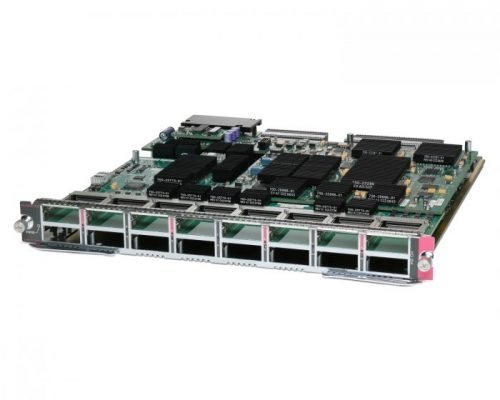

CISCO WS-X6716-10T-3C 16 PORT COPPER 10 GIGABIT ETHERNET 10G WS-F6700-DFC3C MM
Roll over image to zoom in Click on image to zoom
CISCO WS-X6716-10T-3C 16 PORT COPPER 10 GIGABIT ETHERNET 10G WS-F6700-DFC3C MM

CISCO WS-X6716-10T-3C 16 PORT COPPER 10 GIGABIT ETHERNET 10G WS-F6700-DFC3C MM

Save 85%
Condition:  refurbished     MPN:  WS-X6716-10T-3C
Price:
$1,050.00 $7,240.00
Stock:
In stock

Tech Overview

WS-X6708-10G-3C Catalyst 6500 10 Gigabit Ethernet Module
View full product specifications

Overview

Product Code WS-X6716-10T-3C
Feature 16-Port 10GbE Copper Module
Ports 16
Optics   No optics   Copper (RJ-45) connectors
Switch fabric connection 40 Gbps (80 Gbps full duplex)
Oversubscription 4:1
Forwarding engine   WS-X6716-10T-3C: equipped with DFC3C for distributed forwarding, supporting 256,000 routes   WS-X6716-10T-3CXL: equipped with DFC3CXL for distributed forwarding, supporting 1 million routes
Queues Oversubscription mode:   Receive: 1p7q2t per port   Transmit: 1p7q4t per port group Performance mode:   Receive: 8q4t per port   Transmit: 1p7q4t per port
Queuing mechanisms   CoS-based queue mapping   DSCP-based queue mapping
Scheduler Oversubscription mode:   DWRR   WRED Performance mode:   DWRR   WRED   SRR at egress
Port buffers Oversubscription mode:   90 MB per port group Performance mode:   200 MB per port
Hardware-based multicast replication (Layer 2)   Ingress and egress   Approximately 20 GB per replication engine   2 replication engines per module
Hardware-based multicast replication (Layer 3)   Ingress and egress   Approximately 20 GB per replication engine   2 replication engines per module
Jumbo frame support for bridged and routed packets Up to 9216 bytes
Maximum port density per chassis 130 ports (9-slot chassis)
Maximum port density per VSS 260 ports
Can be used to form virtual switch link   Performance mode: Yes (supported in a subsequent software release)   Oversubscription mode: No
Supervisor engines supported Cisco Catalyst 6500 Series Virtual Switching Supervisor Engine 720 with 10GE uplinks or Supervisor Engine 720 with any PFC (chassis will work in lowest common denominator mode)
Chassis supported   Any Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E, and C6509-NEB-A chassis with dual fan tray (NEBS compliant: operating temperature up to 55°C), or:   Non-E-Series chassis with fan tray 2, including Cisco Catalyst 6506, 6509, 6513, and C6509-NEB-A with single fan tray (non-NEBS compliant: operating temperature up to 40°C)   Not supported in Cisco Catalyst 6503 non-E Series chassis and 7600 Series chassis
Slot requirements   Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506, 6506-E, 6509, 6509-E, 6509-V-E, or 6509-NEB-A chassis   Can occupy only slots 9 through 13 in a Cisco Catalyst 6513 chassis
Onboard memory 1 GB default

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
