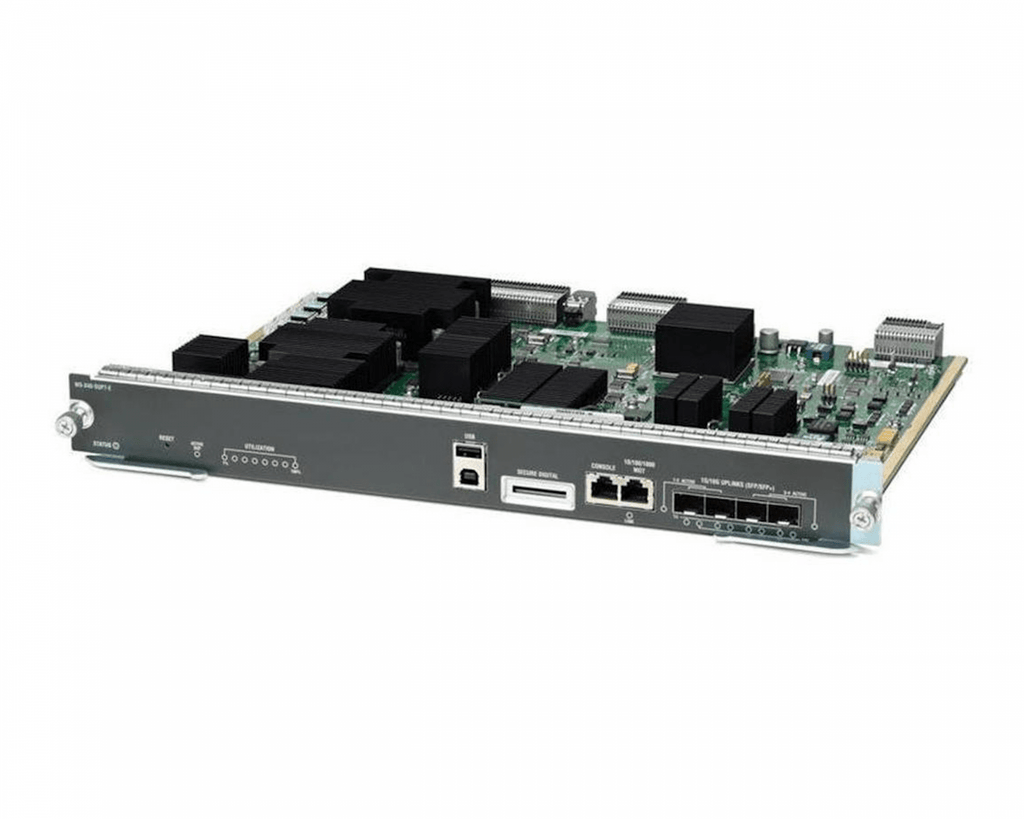

| Product Code | WS-X45-SUP7-E |
| Centralized switching capacity | 848 Gbps |
| Per-slot switching capacity | 48 Gbps |
| Throughput | 250 Mpps for IPv4 125 Mpps for IPv6 250 Mpps for L2 Bridging |
| IPv4 routing entries | 256,000 |
| IPv6 routing entries | 128,000 |
| Multicast routes | 16,000 (available with Cisco IOS XE 3.1.0 SG) 32,000 (Available with Cisco IOS XE 3.2.0 SG or later) |
| CPU | Dual core; 1.5 GHz |
| CPU queues | 64 |
| Synchronous dynamic RAM (SDRAM) | 2 GB upgradable to 4 GB |
| Nonvolatile RAM (NVRAM) | 1 GB |
| Security and QoS hardware entries | 128,000 |
| Cisco Network Admission Control (NAC) andDynamic Host Configuration Protocol (DHCP) snooping entries | 12,000 |
| MAC addresses | 55,000 |
| Active VLANs | 4,094 |
| Address Resolution Protocol (ARP) entries | 47,000 |
| Spanning Tree Protocol instances | 10,000 |
| Switched virtual interfaces (SVIs) | 4,094 |
| Switched Port Analyzer (SPAN) | Maximum of 8 sessions: ingress or egress |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
