| Brand | Cisco |
| Model | WS-C3650-12X48UR-L |

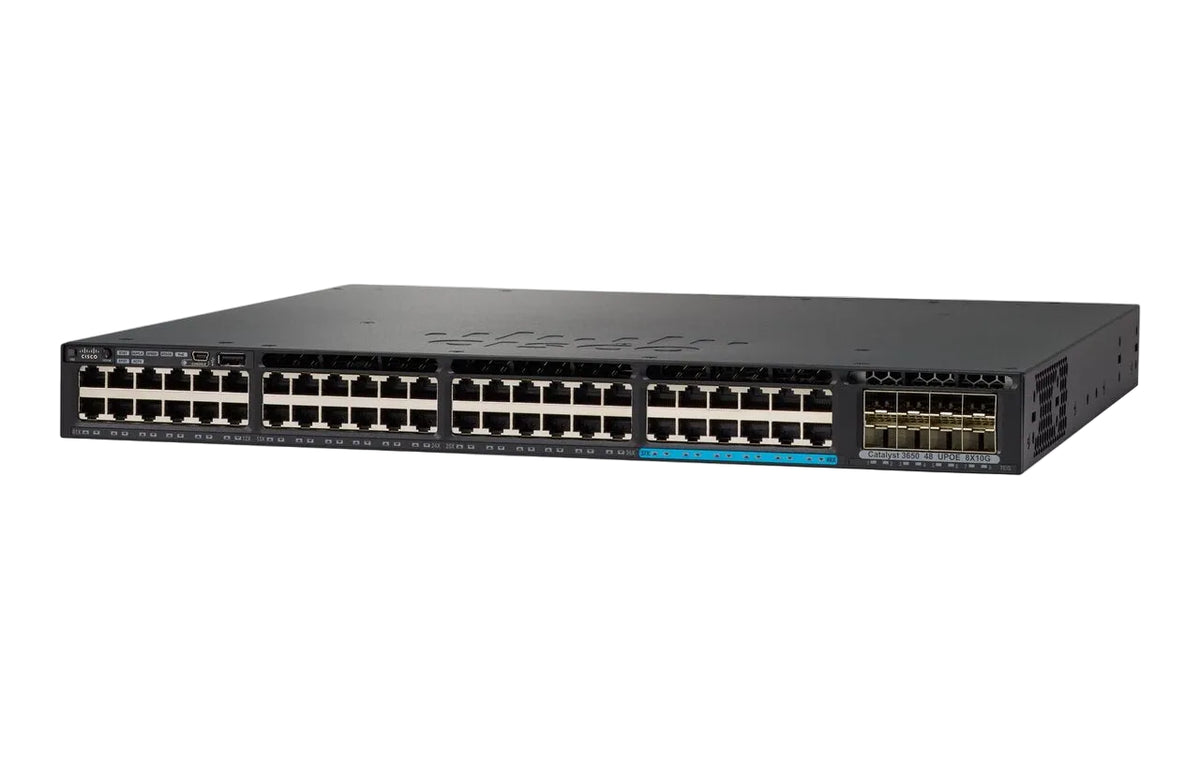

| Product Name | Catalyst 3650 48-Port Multigigabit UPOE Switch with 8 x 10G Uplinks |
| Series | Catalyst 3650 Series |
| Ethernet Ports | 36 x 10/100/1000 Mbps RJ-45 |
| Multigigabit Ports | 12 x 100 Mbps, 1, 2.5, 5 and 10 Gbps RJ-45 |
| PoE Standard | Cisco UPOE, 60 W per port |
| Available PoE Power | 660 W |
| UPOE Port Limit | 29 ports at 60 W with two 1100 W power supplies |
| Uplinks | 8 x 10 Gigabit SFP+ or 8 x Gigabit SFP, any combination |
| Switching Capacity | 472 Gbps |
| Forwarding Rate | 351.19 Mpps |
| Stacking | StackWise-160, 160 Gbps, up to 9 switches |
| MAC Addresses | 32,000 |
| VLAN IDs | 4,094 |
| Jumbo Frame | 9,198 bytes |
| DRAM | 4 GB |
| Flash | 4 GB |
| Wireless Bandwidth | 40 Gbps per switch |
| Default Power Supply | 1100 W AC |
| Power Supplies | Dual redundant modular |
| Fans | 3 modular fans |
| Dimensions | 1.73 x 17.5 x 19.125 in (4.4 x 44.5 x 48.6 cm) |
| Rack Units | 1 RU |
| Weight | 17.80 lb (8.08 kg) |
| Operating Temperature | 23 to 113°F (-5 to 45°C) up to 5,000 ft (1,500 m) |
| Storage Temperature | -40 to 158°F (-40 to 70°C) |
| Relative Humidity | 5% to 96%, noncondensing |
| Acoustic Noise | 45 dB typical, 48 dB maximum |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
