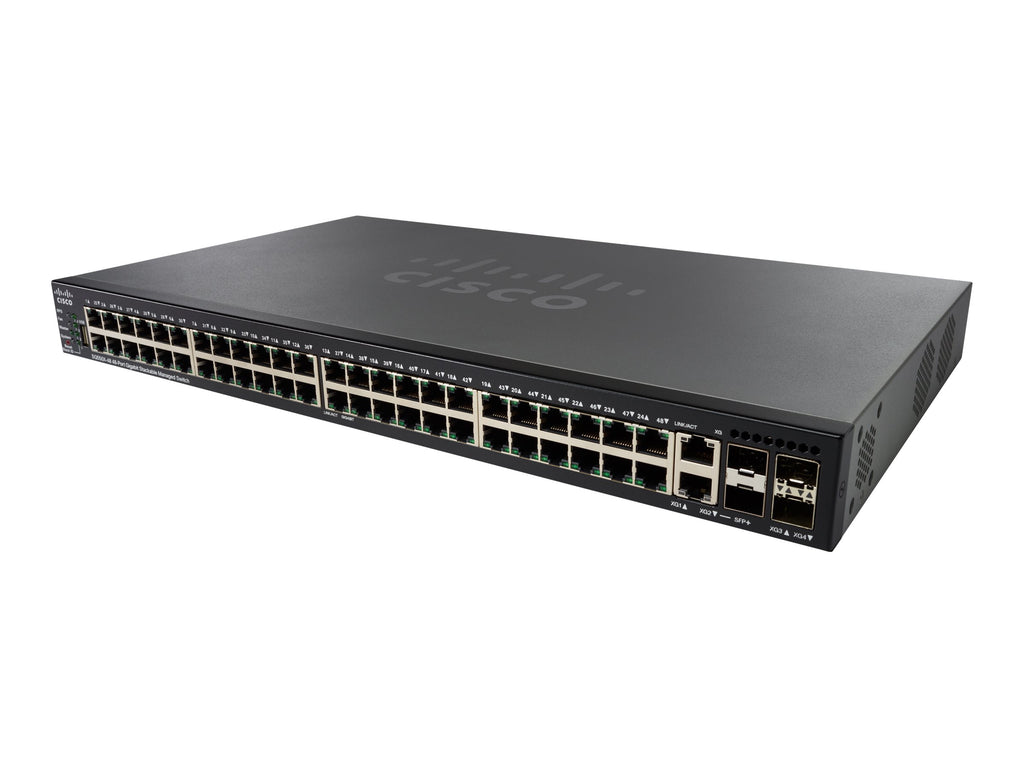

CISCO SG550X-48P-K9 48-PORTS STACKABLE MANAGED SWITCH POE SG550X-48P

NEW CISCO SG550X-48P-K9 550X SERIES 48 PORT POE GIGABIT MANAGED SWITCH 4X 10GE

Roll over image to zoom in Click on image to zoom

CISCO SG550X-48P-K9 48-PORTS STACKABLE MANAGED SWITCH POE+ SG550X-48P

The Cisco SG550X-48P-K9 48-Ports Stackable Managed Switch POE+ SG550X-48P part of the Cisco 550X Series are the next-generation stackable managed Ethernet switches that provide the advanced capabilities and superior performance you need to support a more demanding network environment at an affordable price. These switches incorporate fan and power hardware redundancy, increasing overall network availability. The SG550X and SF550X models provide 24 or 48 ports of Gigabit Ethernet and Fast Ethernet connectivity with 10 Gigabit uplinks. The SX550X models provide 12, 16, 24, or 48 ports of 10 Gigabit Ethernet with both copper and fiber connection options, providing a solid foundation for your current business applications, as well as those you are planning for the future. At the same time, these switches are easy to deploy and manage, without a large IT staff.

Cisco 550X Series switches are designed to protect your technology investment as your business grows. Unlike switches that claim to be stackable but have elements that are administered and troubleshot separately, the Cisco 550X Series provides true stacking capability, allowing you to configure, manage, and troubleshoot multiple physical switches as a single device and more easily expand your network.

A true stack delivers a unified data and control plane, in addition to a management plane, providing flexibility, scalability, and ease of use because the stack of units operate as a single entity constituting all the ports of the stack members. The switches also protect your technology investment with an enhanced warranty, dedicated technical support, and the ability to upgrade equipment in the future and receive credit for your Cisco 550X Series switch. Overall, the Cisco 550X Series provides the ideal technology foundation for a growing business.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Product Name	SG550X-48P
General
Product ID	SG550X-48P-K9
Short Description	Switch: L3 managed, 48 x 10/100/1000 2 x 10 GE combo 2 x 10GE SFP , rack-mountable, PoE
Device type	Switch: 1G, 48 ports, L3 managed
Enclosure type	Rack-mountable, 1RU
Ports	48 x 10/100/1000 2 x 10GE copper/SFP combo 2 x 10GE SFP
Power over Ethernet (PoE)	PoE, PoE and 60W PoE (382W)
Switching capacity	176 Gbps
Forwarding performance (64-byte packets)	130.94 Mpps
MAC address table size	16,000 entries
Capacity (active VLANS)	4000
Routing protocol	RIPv2, VRRP, PBR, static IPv4/IPv6 routing
Remote management protocol	SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI
Features	Stacking, flow control, Layer 2 switching, Layer 3 switching, VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, ?60W PoE, hardware redundancy
Compliant IEEE standards	802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, 802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3af, 802.3at, 802.3az
RAM	512 MB
Flash memory	256 MB
Status indicators	System, Master, Fan, RPS, Stack ID, Link/Speed/PoE per port
Expansion and Connectivity
Interfaces	48 x 10BASE-T/100Base-TX/1000BASE-T, RJ-45, PoE, 2 x 10GBASE-T/SFP combo, 2 x SFP , 1 x console, RJ45, 1 x RPS port
Power
Power supply	Internal
Voltage required	AC 120/230V (50/60 Hz)
Miscellaneous
Width	17.3 in. (440 mm)
Depth	13.8 in. (350 mm)
Height	1.7 in. (44 mm)
Weight	12.83 lb (5.82 kg)
Cables included	1 x console cable
Compliance standards	UL 60950, FCC Part 15 A, CSA 22.2
Manufacturer Warranty
Service and support	Enhanced limited lifetime warranty
Service and support details	Next business day hardware replacement. Software updates. 1-year complimentary telephone and online technical support.
Environmental Parameters
Minimum operating temperature	32-F (0-C)
Maximum operating temperature	122-F (50-C)
Humidity range operating	10-90% (noncondensing)
Minimum storage temperature	-4-F (-20-C)
Maximum storage temperature	158-F (70-C)
Humidity range storage	10-90% (noncondensing)

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
