| QSFP-100G-SM-SR= Specification | |

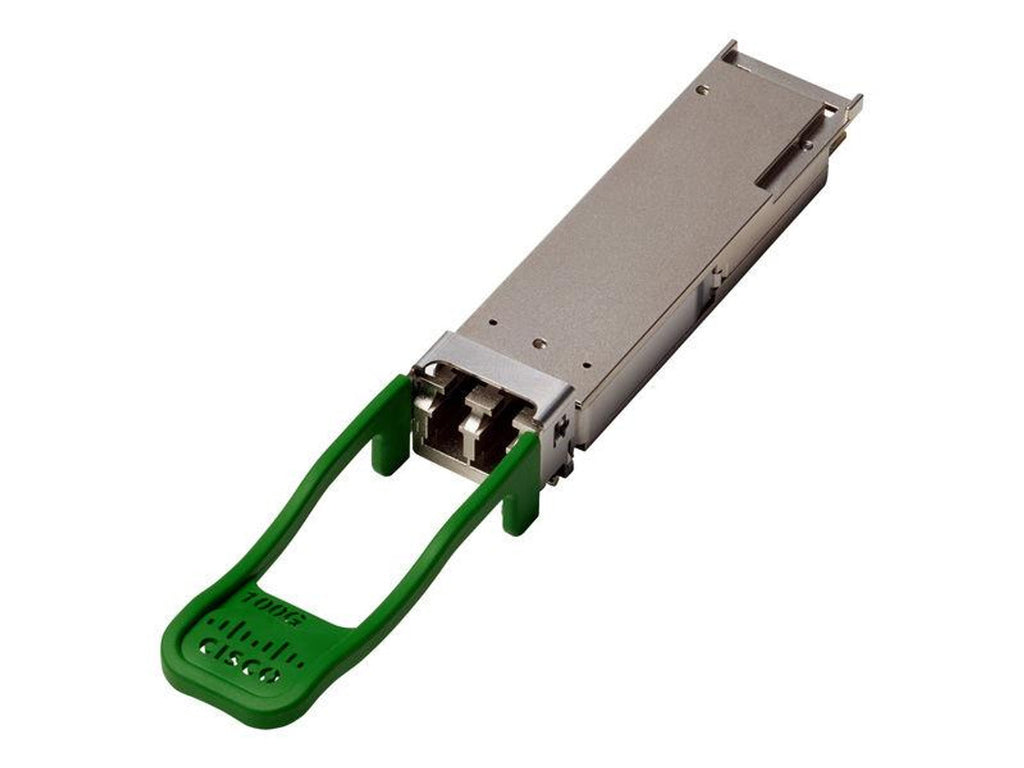

| Description | Cisco 100GBASE CWDM4 Lite QSFP Transceiver, 2km over SMF, 10-60C |
| Dimensions | 13.5 x 18.4 x 72.4 mm |
| QSFP Port cabling specifications | |
| Nominal Wavelength (nm) | 1271, 1291, 1311, 1331 |
| Cable Type | SMF |
| Core Size (Microns) | G.652 |
| Modal Bandwidth (MHz*km)*1 | \ |
| Cable Distance | 2km |
| Power Consumption (W) | 3.5 |
| Pull Tab Color | Green |
| *1 Specified at transmission wavelength. For QSFP-40/100-SRBD, Modal Bandwidth is specified at 850nm | |
| Optical characteristics | |
| Transmit Power (dBm) per lane*2 | Max: 2.5 Min:-6.9 |
| Receive Power (dBm) per lane*2*3 | Max: 2.5 Min: -11.1 |
| Receive Power (dBm) per lane | Four lanes: 1271, 1291, 1311, 1331 |
| *2 Transmitter and receiver power is average optical power, unless specified *3 Optical power at RX is informative only. A received power within this range is required but does not ensure operation | |
| Environmental Conditions and Power Requirements | |
| Commercial temperature | 10 to 60°C (50 to 140°F) |
| Storage temperature | -40 to 85°C (-40 to 185°F) |
| Regulatory and Standards compliance | |
| Standards | •SFF-8665: QSFP 28 Gb/s 4X Pluggable Transceiver Solution (QSFP28) - Rev 1.8 May 10, 2013 •SFF-8636: Common Management Interface - DRAFT Rev 1.9 May 12, 2014 •802.3™-2012 IEEE Standard for Ethernet •IEEE 802.3ba Amendment of IEEE Std 802.3-2012 •IEEE 802.3bm Amendment of IEEE Std 802.3-2012 (D3.1, 1st August 2014) •GR-20-CORE: Generic Requirements for Optical Fiber and Optical Fiber Cable •GR-326-CORE: Generic Requirements for Single-Mode Optical Connectors and Jumper Assemblies •GR-468-CORE: Generic Requirements for Optoelectronic Devices Used in Telecommunications Equipment •GR-1435-CORE: Generic Requirements for Multifiber Optical Connectors •RoHS 6 |
| Safety | •Cable jacket of QSFP copper modules is UL E116441 Compliant •QSFP copper cables are ELV compliant |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
