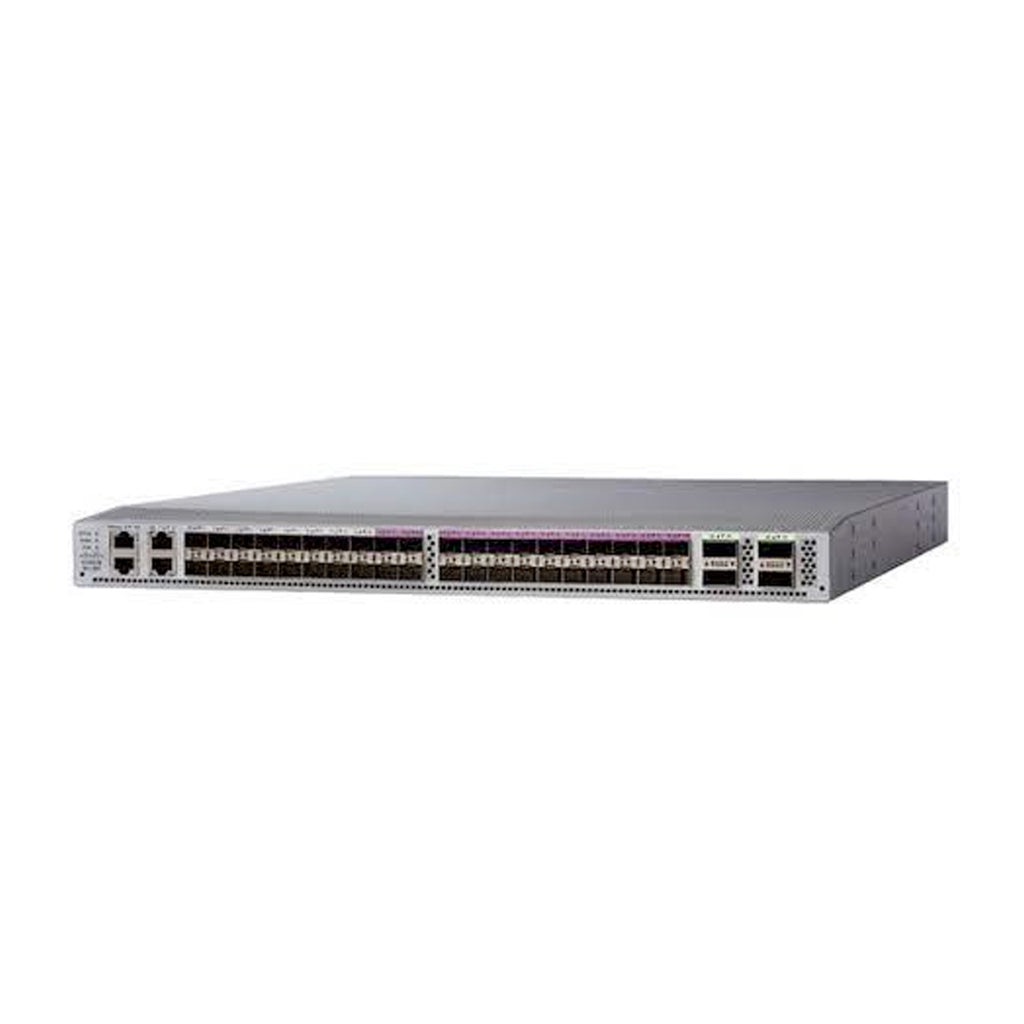

CISCO NCS-5501-SE 40-PORT 10GE SFP+ QSFP-100G NCS-1100W-DCRV ROUTER
Roll over image to zoom in Click on image to zoom
CISCO NCS-5501-SE 40-PORT 10GE SFP+ QSFP-100G NCS-1100W-DCRV ROUTER

CISCO NCS-5501-SE 40-PORT 10GE SFP+ QSFP-100G NCS-1100W-DCRV ROUTER

Condition:  refurbished     MPN:  NCS-5501-SE
Price:
$5,695.00
Stock:
In stock

Tech Overview

Cisco Network Convergence System 5501 SE Chassis - Expansion module - 1U - rack-mountable
View full product specifications

Overview

Feature Specification
Chassis PIDs NCS-5501 NCS-5501-SE
Interfaces NCS-5501: 48 ports of 1GE/10GE 6 ports of 40GE/100GE
NCS-5501-SE: 40 ports of 1GE/10GE 4 ports of 40GE/100GE
Integrated Route Processor IOS-XR 64-bit software running on an 8 cores x86 CPU @ 2Ghz
Management Ports 3x RJ45, one for console and two for management LAN ports
Flexible Forwarding Ports NCS-5501-SE 4x 100 Gigabit Ethernet with QSFP28 optics QSFP optics to support 40GE and 4x 10GE breakout options available 40x 10 Gigabit Ethernet with SFP or SFP optics to support 1GE speed
NCS-5501 6x 100 Gigabit Ethernet with QSFP28 optics QSFP optics to support 40GE and 4x 10GE breakout options available 48x 10 Gigabit Ethernet with SFP or SFP optics to support 1GE speed
Performance Up to 800 Gbps of system throughput
Route Scale NCS-5501: Up to 1M FIB entries NCS-5501-SE: Up to 2M FIB entries
Power and Cooling Features 2 hot-swappable power supplies providing 1 1 redundancy. Reversible airflow available (power supply PID determines airflow direction) 2 hot-swappable fan trays provide redundant system cooling
Power Consumption Output power. For input power, divide by 0.91, which represents average supply efficiency. NCS-5501 Typical: 240W at 25 degrees Celsius Maximum: 370W at 55 degrees Celsius
NCS-5501-SE Typical: 260W at 25 degrees Celsius Maximum: 420W at 55 degrees Celsius
Physical Specification Height: 1RU 1.72 in (4.37 cm) Width:17.4 in (44.20 cm) Depth: 21.7 in (55.12 cm) NCS5501 Weight: 22.8 lbs (10.34 kgs) NCS5501-SE Weight: 23.5 lbs (10.66 kgs)

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
