| Model | Cisco NCS-5501 |
| Series | Cisco NCS 5500 Series |

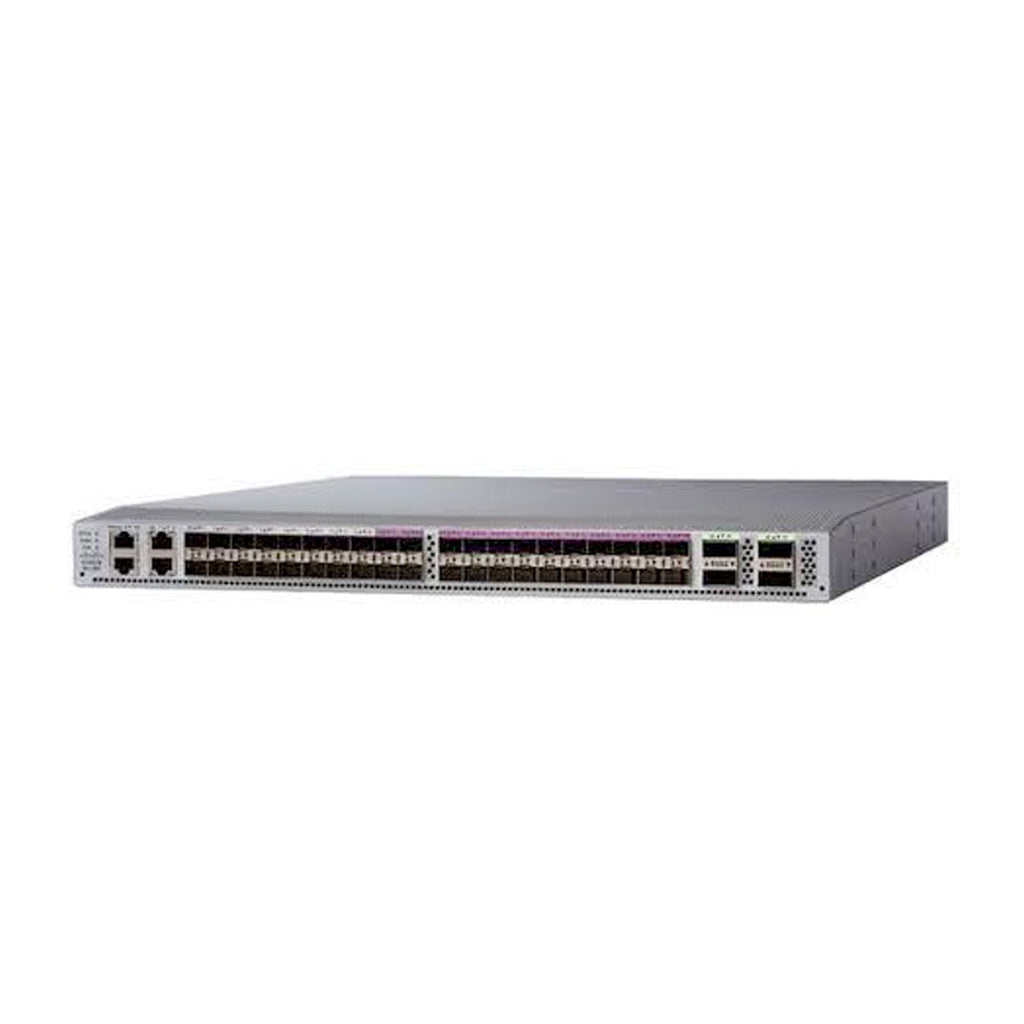

| Product | NCS5501 Fixed 48x10G and 6x100G chassis |
| Form Factor | Fixed, 1RU |
| SFP/SFP+ Ports | 48 ports, 1GE and 10GE |
| QSFP+/QSFP28 Ports | 6 ports, 40GE and 100GE |
| Breakout | 4x10GE on QSFP+/QSFP28 ports |
| Throughput | Up to 800 Gbps |
| FIB Scale | Up to 1M entries |
| Route Processor | 8-core x86 CPU at 2 GHz, 64-bit IOS XR |
| Software | Cisco IOS XR Release 6.1.1 or later |
| Management Ports | 3 x RJ45: 1 console, 2 management LAN |
| External USB Port | Yes |
| Embedded USB Storage | Yes (eUSB) |
| Power Supplies | 2 hot-swappable, 1+1 redundant |
| Power Input | AC 90 to 265V, 50 to 60 Hz or DC -40V to -72V |
| Typical Output Power | 240W at 25 C |
| Maximum Output Power | 370W at 55 C |
| Fans | 2 hot-swappable fan trays |
| Airflow | Front to back or back to front, set by power supply |
| Dimensions (H x W x D) | 1.72 x 17.4 x 21.7 in |
| Weight | 22.8 lb (10.34 kg) |
| Operating Temperature | 0 to 40 C (32 to 104 F) |
| Storage Temperature | -40 to 70 C (-40 to 158 F) |
| Operating Humidity | 5% to 95%, noncondensing |
| Storage Humidity | 5% to 95% at 40 C |
| Altitude | 0 to 3000 m (0 to 10,000 ft) |
| Layer 2 | Q-in-Q, LACP bundles up to 32 ports, jumbo frames up to 9216 bytes, Ethernet Flow Points, VRRP |
| Layer 3 | IPv4 and IPv6 unicast, OSPF, IS-IS, BGP, BFD, ACLs, HSRP/VRRP, L3VPN, 32-way ECMP |
| MPLS | Label switching, LDP, MPLS Traffic Engineering, EoMPLS |
| Segment Routing | SR transport, SR-TE, TI-LFA, BGP egress peering engineering |
| QoS | Hierarchical QoS, DSCP marking, 8 user-traffic queues, priority queuing |
| Security | ACLs, control-plane and management-plane protection, routing authentication, AAA, TACACS+, SSH, SNMPv3 |
| Automation | Zero-Touch Provisioning, iPXE, NETCONF/YANG |
| Management Protocols | SNMP, MIB, XML, JSON, GPB, MPLS and Ethernet OAM |
| Supported 1G Optics | GLC-TE, GLC-SX-MMD, GLC-LH-SMD |
| Supported 10G Optics | SFP-10G-SR, SFP-10G-SR-S, SFP-10G-SR-X, SFP-10G-LR, SFP-10G-LR-S, SFP-10G-LR-X |
| Supported 40G Optics | QSFP-40G-SR4, QSFP-40G-SR4-S, QSFP-40G-CSR4, QSFP-40G-SR-BD, QSFP-40G-LR4, QSFP-40G-LR4-S, WSP-Q40GLR4L, QSFP-4x10G-LR-S, QSFP-40G-ER4 |
| Supported 100G Optics | QSFP-100G-SR4-S, QSFP-100G-LR4-S, QSFP-100G-CWDM4-S, QSFP-100G-PSM4-S, QSFP-100G-AOC cables 1 to 30 m |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
