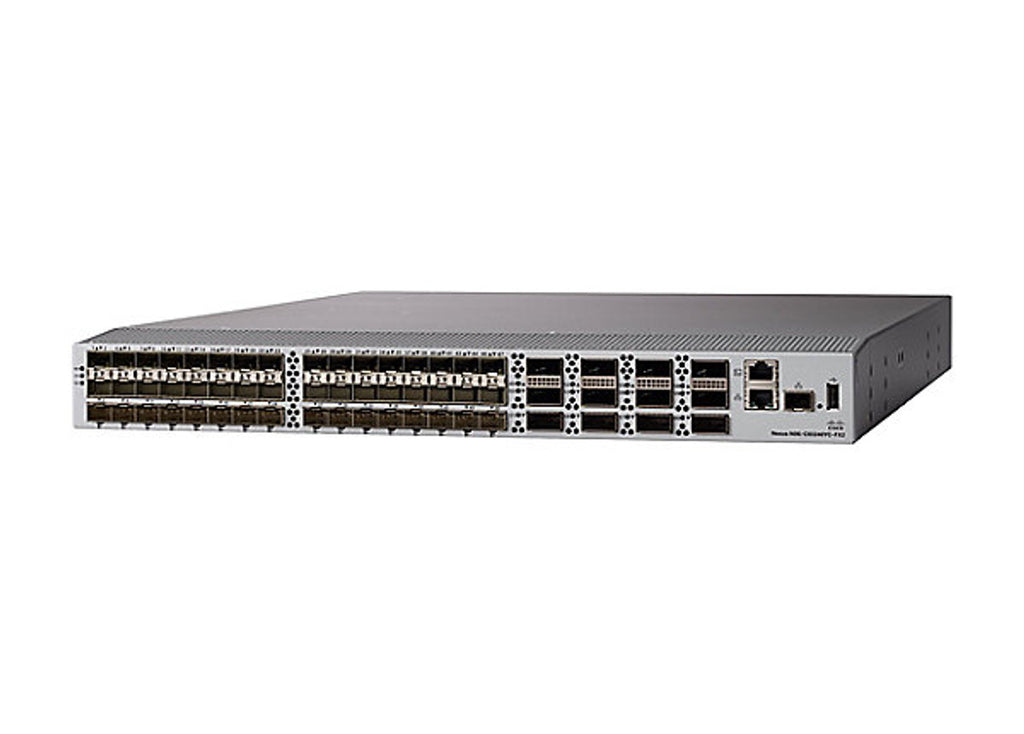

CISCO N9K-C9348GC-FXP /1G BASE-T ports and 2 x 40/100-Gbps QSFP28
Roll over image to zoom in Click on image to zoom
CISCO N9K-C9348GC-FXP /1G BASE-T ports and 2 x 40/100-Gbps QSFP28

CISCO N9K-C9348GC-FXP /1G BASE-T ports and 2 x 40/100-Gbps QSFP28

Condition:  refurbished     MPN:  N9K-C9348GC-FXP
Price:
$450.00
Stock:
In stock
View full product specifications

Overview

Device Type Switch - 48 ports - L3 - managed
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Ports 48 x 1 Gigabit SFP/ 10 Gigabit SFP 6 x 40 Gigabit QSFP (breakout compatible)
Performance Switching capacity: 1.44 Tbps | Switching capacity: 1.07 Bpps
Capacity IPv4 routes (Unicast): 128000 | Virtual interfaces (VLANs): 4091 | IPv4 hosts: 208000 | IPv4 routes (Multicast): 104000 | IPv6 routes (Multicast): 52000 | IPv6 routes (Unicast): 64000 | ARP entries: 48000 | Multiple Spanning Tree Protocol instances: 64 | VLAN Spanning Tree Protocol instances: 253
MAC Address Table Size 288K entries
Jumbo Frame Support 9216 bytes
Fibre Channel FC-BB-5 FC-BB-6
Routing Protocol OSPF RIP RIP-2 IGMPv2 IGMP VRRP PIM-SM static IP routing IGMPv3 MSDP ECMP Bidirectional Forwarding Detection (BFD) CIDR
Remote Management Protocol SNMP 1 SNMP 2 RMON Telnet SNMP 3 SSH CLI
Encryption Algorithm MD5 AES
Authentication Method Secure Shell (SSH) RADIUS TACACS Secure Shell v.2 (SSH2)
Features Flow control VPN support BOOTP support RARP support ARP support trunking VLAN support IGMP snooping DoS attack prevention store and forward MAC address filtering IPv6 support High Availability SNTP support Low-latency queuing (LLQ) Weighted Random Early Detection (WRED) sFlow Spanning Tree Protocol (STP) support Rapid Spanning Tree Protocol (RSTP) support Multiple Spanning Tree Protocol (MSTP) support tunneling Data Center Bridging Exchange (DCBX) support DHCP snooping Trivial File Transfer Protocol (TFTP) support Access Control List (ACL) support Quality of Service (QoS) DHCP server Dynamic ARP Inspection (DAI) Redundant trunk group (RTG) Non-Stop Bridging (NSB) Non-Stop Routing (NSR) Graceful Route Engine Switchover (GRES) IPv4 support DHCP relay Data Center Bridging (DCB) Management Information Base (MIB) Strict Priority Queuing (SPQ) VLAN Spanning Tree Protocol (VSTP) loop prevention redundant hot swappable fans FCoE forwarding Class of Service (CoS) cut-through 12 MB shared buffer
Compliant Standards IEEE 802.1D IEEE 802.1Q IEEE 802.1p IEEE 802.3x IEEE 802.3ad (LACP) IEEE 802.1w IEEE 802.1s IEEE 802.1ad IEEE 802.1ab (LLDP) IEEE 802.1Qbb IEEE 802.1Qaz IEEE 802.1Qau IEEE 802.1Qbg Shaped Deficit Weighted Round-Robin (SDWRR)
Processor 1 x Intel: 1.5 GHz
RAM 8 GB
Built-in Devices 32 GB SSD
Interfaces 48 x SFP | 6 x QSFP (breakout compatible) | 1 x console management | 1 x USB management | 1 x RJ-45 management | 2 x SFP management
Power Device Internal power supply - hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy Yes
Power Redundancy Scheme 1 1
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 150 Watt
80 PLUS Certification 80 PLUS
MTBF 200000 hour(s)
Compliant Standards NEBS level 3 EN5502
N9K-C9348GC-FXP Specification
Hardware performance and scalability
Ports 48 x 1-GBASE-T ports, 4 x 1/10/25-Gbps SFP28 ports and 2 x 40/100 QSFP28 ports
Downlink supported speeds 100-Mbps and 1-Gbps speeds
CPU 4 cores
System memory 24 GB
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP
USB ports 1
RS-232 serial ports 1
Power supplies (up to 2) 350W AC, 440W DC
Typical power (AC/DC) 178W
Maximum power (AC/DC) 287W
Input voltage (AC) 100 to 240V
Input voltage (High-Voltage AC [HVAC]) 90 to 305V
Input voltage (DC) -36V to -72V
Input voltage (High-Voltage DC [HVDC]) 192 to 400V
Frequency (AC) 50 to 60 Hz
Fans 3
Airflow Port-side intake and exhaust
Physical dimensions (H x W x D) 1.72 x 17.3 x 19.7 in. (4.4 x 43.9 x 49.9 cm)
Acoustics 67.5 dBA at 50% fan speed, 73.2 dBA at 70% fan speed, and 81.6 dBA at 100% fan speed
RoHS compliance Yes
MTBF 257,860 hours
Environmental properties
Operating temperature 32 to 104°F (0 to 40°C)
Nonoperating (storage) temperature –40 to 158°F (–40 to 70°C)
Humidity 5 to 95% (noncondensing)
Altitude 0 to 13,123 ft (0 to 4000m)
2 Class A FCC CFR47 Part 15 UL 60950-1 IEC 60950-1 EN 60950-1 WEEE RoHS BSMI CNS 13438 REACH EN 60825-1 GR-1089-CORE VCCI Class A GR-63-CORE NCC China RoHS AS/NZS CISPR 22 CAN/CSA-C22.2 No. 60950-1
OS Required JUNOS
Width 17.4 in
Depth 20.5 in
Height 1.7 in
Weight 21.83 lbs

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
