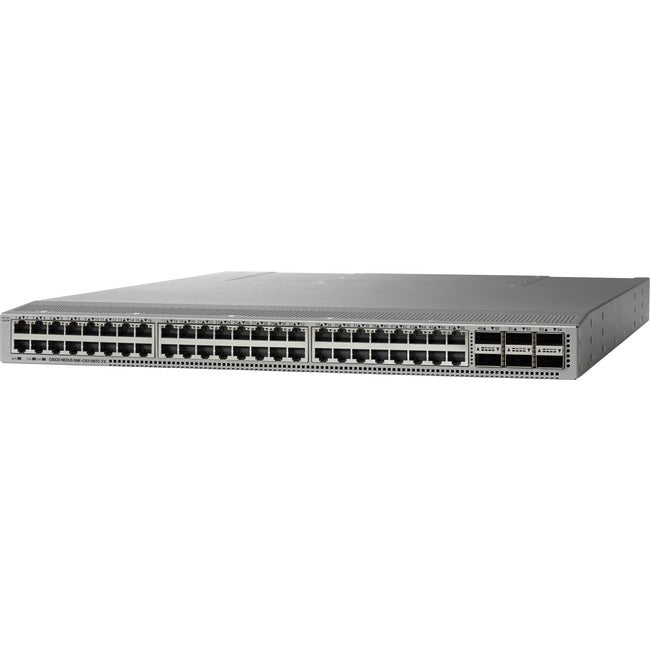

Cisco N9K-C93180YC-FX3 Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28
Roll over image to zoom in Click on image to zoom
Cisco N9K-C93180YC-FX3 Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28

Cisco N9K-C93180YC-FX3 Nexus 9300 with 48p 1/10G/25G SFP and 6p 40G/100G QSFP28

Condition:  refurbished     MPN:  N9K-C93108TC-FX3
Price:
$5,895.00
Stock:
In stock
View full product specifications

Overview

Feature Cisco Nexus 93108TC-FX3P Switch
Ports Downlinks: 48 x 100M/1/2.5/5/10G BASE-T multigigabit supported ports Uplinks: 6 x 40/100G QSFP28 ports
CPU 4 cores
System memory 32 GB capable with 16G defaulted and 16G available as upgradeable option
SSD drive 128 GB
System buffer 40 MB
Management ports 2 ports: 1 RJ-45 and 1 SFP
USB ports 1
RS-232 serial ports 1
Power supplies 1100W AC port-side intake and port-side exhaust 1900W AC port-side intake only
Switch Average Power (AC) 360W
Switch Maximum Power (AC) 530W
BTU/hr 1706
Frequency (AC) 50 to 60 Hz
Airflow Port-side intake and port-side exhaust
Physical dimensions (H x W x D) 1.72 x 17.2 x 18 in
Acoustics 70.1 dBA at 50% fan speed, 78.1 dBA at 70% fan speed, and 86 dBA at 100% fan speed
Mean Time Between Failures (MTBF) 283,100 hours
Cisco Nexus 93108TC-FX3P Switch without power supplies and fans 16lbs (7.25 kg)
Power supplies, 1100W AC 3.0 lb (1.36 kg)
Power supplies, 1900W AC 3.6 lb (1.63 kg)
Fans: NXA-FAN-35CFM-F or NXA-FAN-35CFM-B 0.26 lb (0.12 kg)
Minimum NX-OS image NXOS-9.3.5
Minimum ACI Image ACI-N9KDK9-15.1.3

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
