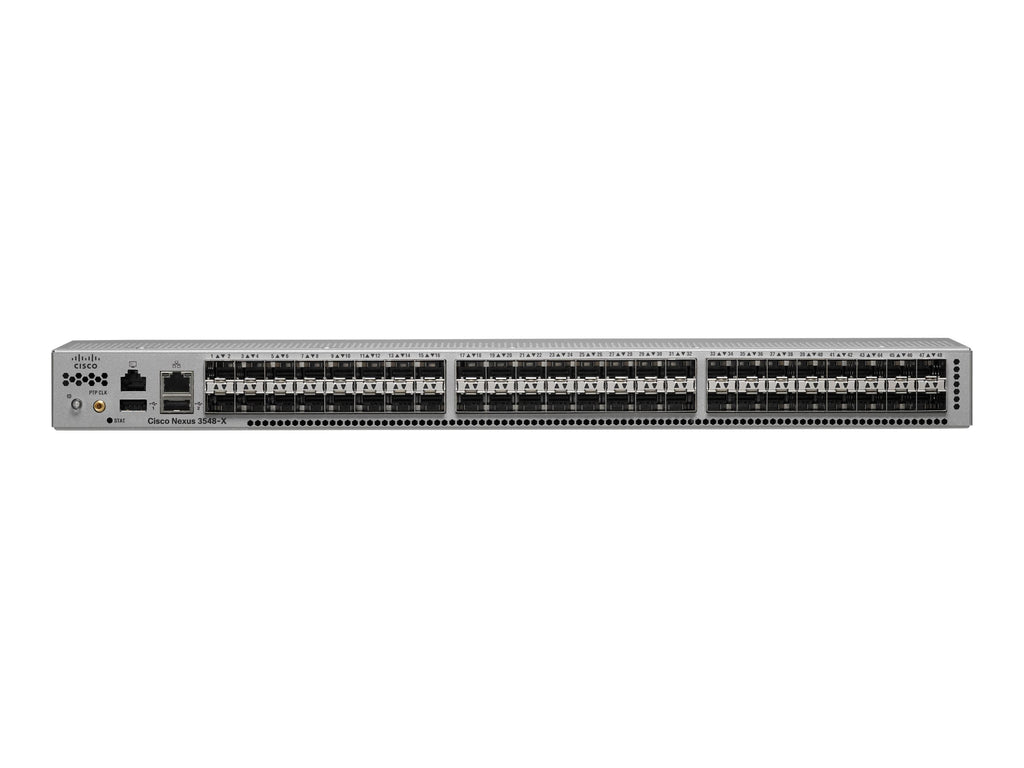

| Manufacturer | Cisco |
| Product Line | Nexus 3500 Platform (Nexus 3548) |
| Product Type | Managed Switch |
| Ports | 48x Fixed SFP+ (1 or 10 Gbps) |
| Sibling | N3K-C3524P-10G — Identical Hardware, 24 Ports Active via License, 480Gbps/360Mpps |
| Switching Capacity | 960 Gbps |
| Forwarding Rate | 720 Mpps |
| Jumbo Frames | Up To 9,216 Bytes |
| MAC Addresses (Normal/Warp Mode) | 64,000 / 8,000 |
| IPv4 Unicast Routes (Normal/Warp) | 24,000 / 4,000 |
| IPv4 Hosts (Normal/Warp) | 64,000 / 8,000 |
| VLANs | 4,096 |
| ACL Entries | 4,096 |
| Spanning Tree | RSTP: 512 Instances, MST: 64 Instances |
| EtherChannels | 24 (Up To 24 Ports Each) |
| Buffer | 18MB Total (6MB Shared Among 16 Ports) |
| System Memory / Boot Flash | 4GB / 2GB |
| Management Ports | 2x 10/100/1000 (Only 1 Active, No Plans To Enable Second) |
| Console Port | 1x RS-232 |
| USB Port | 1 |
| Timing Port | 1x 1-PPS (RF1.0/2.3 QuickConnect) |
| Power Supplies | 2x Redundant, AC or DC, Forward or Reversed Airflow |
| Input Voltage | 100-240VAC, 50-60Hz |
| Power Supply Efficiency | 89-91% at 220V |
| Typical/Max Power Consumption | 152W / 265W |
| Typical/Max Heat Dissipation | 519 / 904 BTU/hr |
| Cooling | 4x Individual Hot-Swappable Fans (3+1 Redundant) |
| Airflow | Port-Side Exhaust (Forward) or Port-Side Intake (Reversed), Field-Configurable |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10 to 85% Non-Condensing |
| Altitude | 0 to 10,000 ft |
| Dimensions (H x W x D) | 1.72 x 17.3 x 18.38 in |
| Weight | 17.4 lb (7.9 kg) |
| Operating System | Cisco NX-OS Software |
| Form Factor | 1U Rack Mountable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
