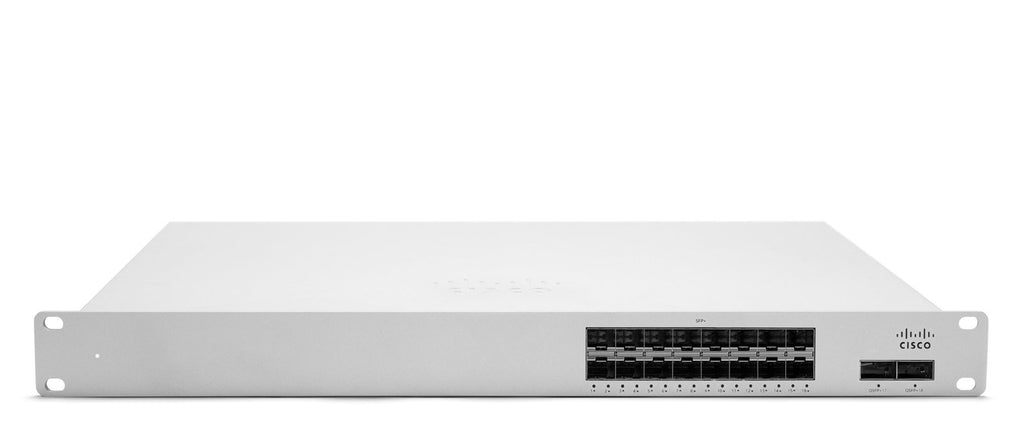

| Manufacturer | Cisco |
| Product Line | Meraki MS425 |
| Series | MS425-16 |
| Product Type | Cloud-Managed Layer 3 Fiber Aggregation Switch |
| Fiber Ports | 16x 10GBase SFP+ |
| Uplink/Stacking Ports | 2x 40G QSFP+ |
| Management Port | 1x RJ45 |
| Switching Capacity | 480 Gbps |
| Stacking Bandwidth | 160 Gbps; up to 8 stack members |
| MAC Address Table | 128,000 entries |
| Layer 3 Routing | OSPFv2; static routing; VRRP; DHCP server/relay |
| VLANs | 802.1q; up to 4,094 VLANs |
| Spanning Tree | RSTP/STP; broadcast storm control |
| Link Aggregation | 802.3ad LACP; up to 8 ports/aggregate; MLAG |
| QoS | 8 CoS queues (6 configurable); DSCP-to-CoS mapping; 802.1p |
| Additional Features | IGMP snooping; port mirroring; CDP/LLDP |
| Power Supply | Hot-swappable MA-PWR-250WAC included; second PSU slot (sold separately) |
| Power Consumption | 98W idle / 136W full load |
| MTBF | 284,423 hours |
| Operating Temperature | 0 to 40°C |
| Operating Humidity | 5% to 95% non-condensing |
| Fans | 3x pre-installed; field-replaceable; front-to-back airflow |
| Form Factor | 1U rack-mountable |
| Compliance | RoHS; FCC; CE; IC; CSA-US |
| Dimensions | 1.7 x 19.1 x 20.3 in |
| Weight | 13.7 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
