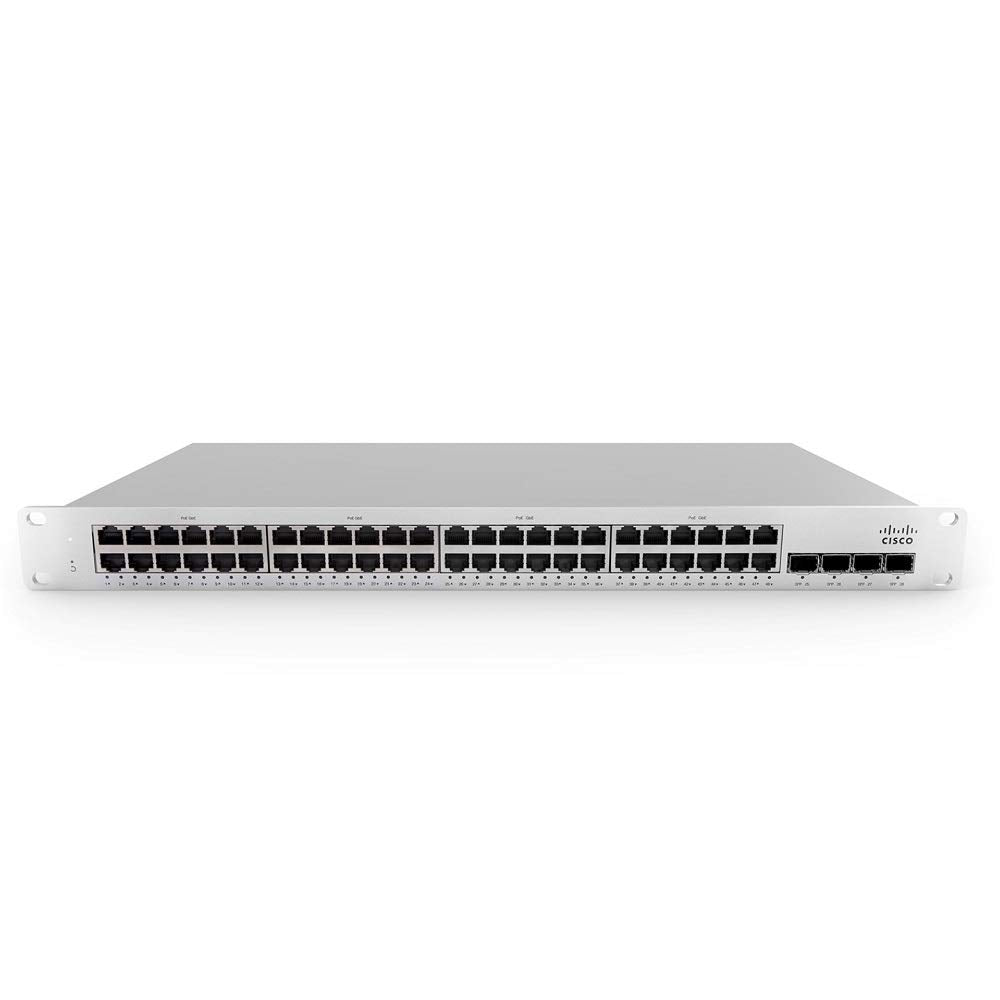

| MS210-48FP-HW Specification | |
| Interfaces | • 48 x 10/100/1000BASE-T Ethernet RJ45 with auto negotiation and crossover detection (auto-MDIX crossover) • 4 x 1GbE SFP uplink • 2 x stacking ports • RJ45 Management port |
| Forwarding rate | 77.38mpps |
| Switching capacity | 176 Gbps |
| Stacking Bandwidth | 80G (dual interface) |
| Available PoE Power | No |
| Idle / Full Load Power | 54 / 882 W |
| Power Supply Configuration | Fixed internal |
| Supported Power Supply | External RPS |
| What’s included | Mounting screw kit |
| Dimensions | 1.72” x 19.08” x 13.38” (4.38 x 48.46 x 34cm) |
| Weight | 9.63 lb (4.37 kg) |
| Management | • Managed via the Web with the Meraki cloud management platform • Integrated with Meraki Wireless and complete portfolio of IT products and solutions • Zero-touch remote provisioning (no staging needed) • Detailed historical per-port and per-client usage statistics • DHCP, client, and hostname fingerprinting • SNMPd and SYSLOG support for integration with other network management solutions • Automatic firmware upgrades with scheduling control |
| Layer 3 | • Static routing • DHCP Relay |
| Remote Diagnostics | • Email, SMS and Mobile push notification alerts • Cable testing and link failure detection with alerting • Live remote packet capture • Dynamic and interactive network discovery and topology • Combined event and configuration change logs with instant search |
| Power | • Power input: 100 - 240 VAC, 47-63 Hz • Power consumption: 15 - 882W • RPS interface: Requires RPS-2300 chassis |
| Stacking | • Physical stacking of up to 8 switches with 80 Gbps stack bandwidth on all models • Virtual Stacking supports thousands of switch ports in a single logical stack for unified management, monitoring, and configuration • Stacking-compatible with the MS225 |
| Ethernet Switching Capabilities | • 802.1p Quality of Service, 8 queues (w/ 6 configurable for DSCP-to-CoS mapping) • 802.1Q VLAN and trunking support for up to 4,094 VLANs • 802.1w, 802.1D Rapid Spanning Tree Protocol (RSTP, STP) • Broadcast storm control • 802.1ab Link Layer Discovery Protocol (LLDP) and Cisco Discovery Protocol (CDP) • 802.3ad Link aggregation with up to 8 ports per aggregate, Multichassis aggregates supported on stacked switches • Port mirroring • IGMP snooping for multicast filtering • MAC forwarding entries: 32K |
| Environment | • Operating temperature: -5°C to 50°C • Humidity: 5 to 95% non-condensing |
| Regulatory | • CSA-US (US, Canada) • FCC (USA) • IC (Canada) • CE (Europe) • RoHS • RCM (Australia/New Zealand) |
| Mounting | • Rack-mountable with included rack mount hardware • Front-to-back airflow • Feature fanless operation |
| Security | • Integrated two-factor authentication for Dashboard management • Role-based access control (RBAC) with granular device and configuration control • Corporate wide password policy enforcement • IEEE 802.1X RADIUS and MAB, hybrid authentication and RADIUS server testing • Multi-Domain/Multi-Host/Multi Authentication • Port security: Sticky MAC, MAC whitelisting • DHCP snooping, detection and blocking, Dynamic ARP Inspection • STP Enhancements: BPDU guard, Root guard, Loop guard • IPv4 and IPv6 ACLs |
| MTBF Ratings | 320,555 |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
