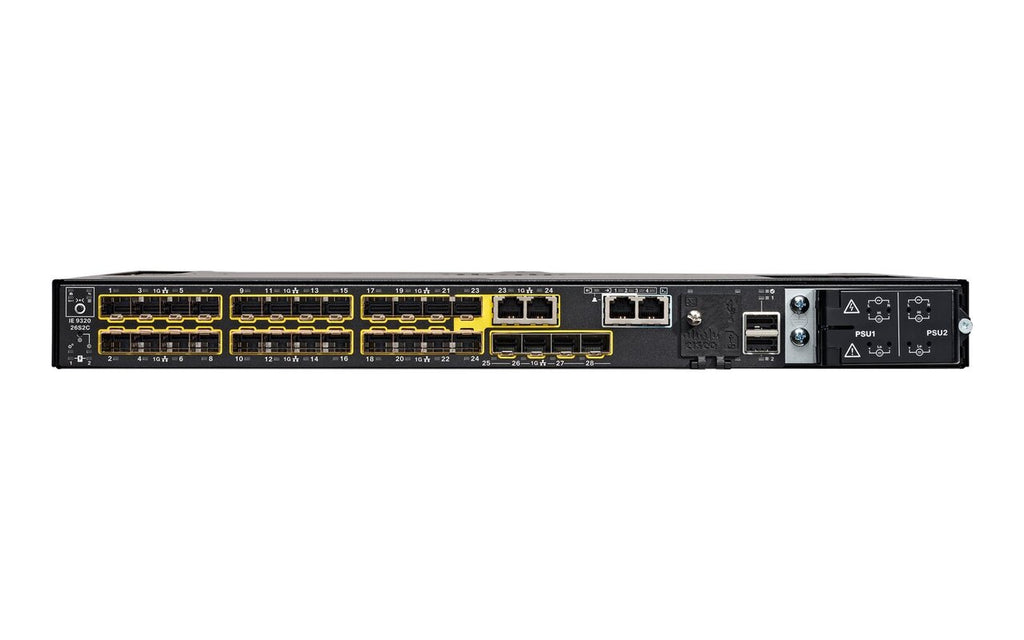

| Series | Catalyst IE9300 Rugged Series (IE9320) |
| Ports | 22x 100/1000M SFP downlink, 2x Dual-Media (SFP or RJ45) downlink, 4x 100/1000M SFP uplink (28 total) |
| Switching Bandwidth | 56 Gbps full-duplex |
| Forwarding Rate | 41.66 Mpps (64-byte packets) |
| Forwarding Bandwidth | 28 Gbps |
| Memory | 4GB DRAM |
| Flash | 8GB onboard, approximately 2.5GB user accessible |
| Power Supply Compatibility | PWR-RGD-AC-DC-H (150W), PWR-RGD-AC-DC-250 (250W), or PWR-RGD-AC-DC-400 (400W), ordered separately; dual redundant configuration supported |
| PoE | Not supported |
| Stacking | 2 stacking ports, up to 4-member stack |
| Operating Temperature | -40° to 75°C (-40° to 167°F) |
| License Tier | Network Essentials |
| Routing | Static routing, OSPF, up to 1000 routes |
| Security | Secure Boot, image signing, Cisco Trust Anchor module, MACsec-128 |
| Industrial Protocols | PROFINET, CIP |
| Dimensions | 1.72 x 17.5 x 14.0 in. (4.4 x 44.5 x 35.6 cm) |
| Weight | 12.2 lb (5.53 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
