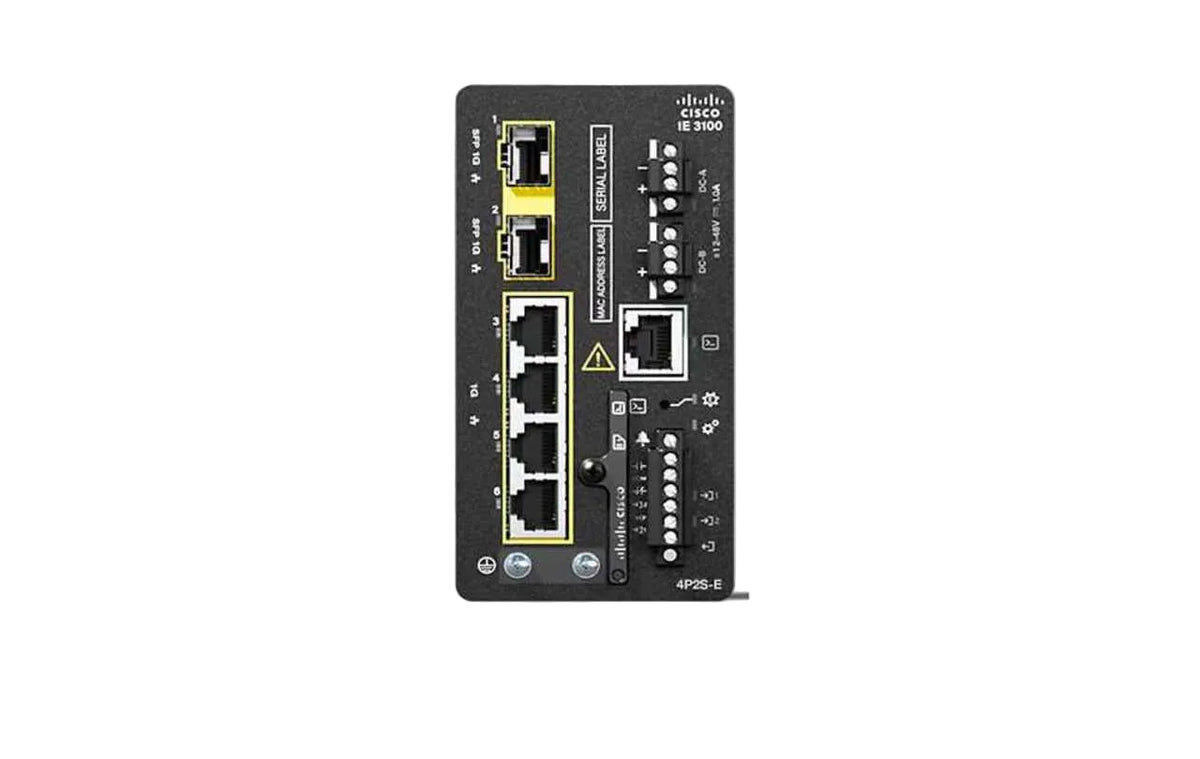

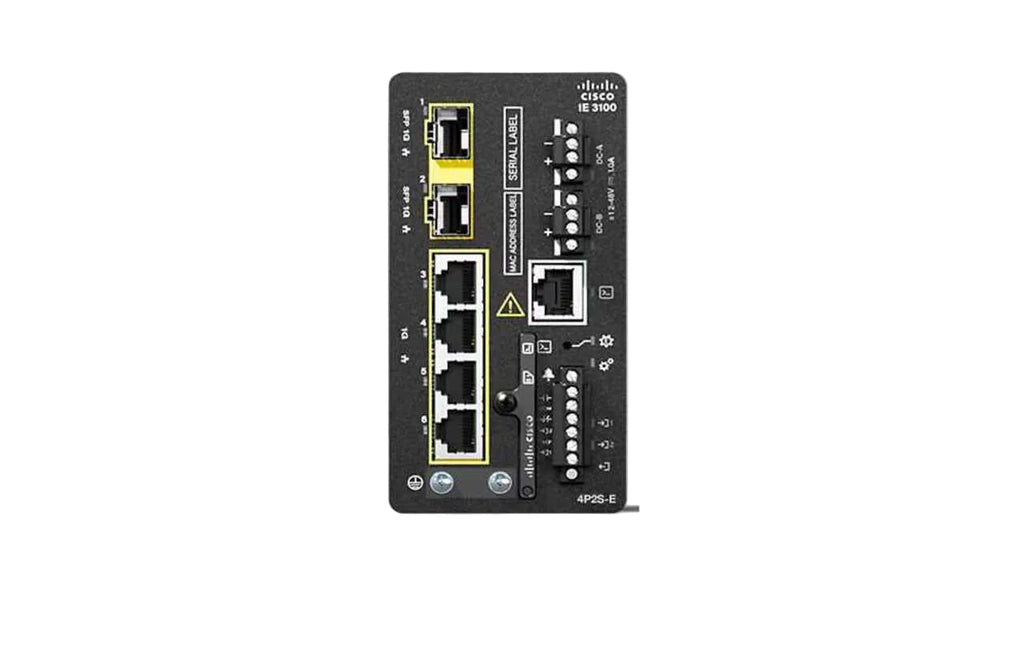

| Manufacturer | Cisco |
| Product Line | Catalyst IE3100 Rugged Series |
| Product Type | Ruggedized Industrial Switch |
| RJ-45 Ports | 4x 10/100/1000 PoE/PoE+ |
| SFP Ports | 2x 1GE Fiber |
| Total Ports | 6 |
| PoE Budget | 120W |
| License | Network Essentials |
| Sibling | IE-3100-4T2S-E, Same Port Config, No PoE, 1.6 lb; IE-3100-8P2C-E, 8-Port, 240W PoE Budget |
| Power Input | 12V to 54V Nominal, 9.6V to 60V Absolute, Dual DC Inputs |
| Maximum Input Current | 5.8A at 12V, 7.3A at 24V, 3.7A at 54V |
| Inrush Current | 80A For 1ms at 12V Input |
| IPv4 Indirect Routes | 2,000 |
| Spanning Tree Protocol Instances | 128 |
| DRAM | 4GB |
| Flash (User Accessible) | 1.5GB |
| Alarms | 2x Dry-Contact Alarm Inputs |
| Console Ports | 1x RS-232 (Via RJ-45), 1x Micro USB |
| Cooling | Fanless |
| Ingress Protection | IP30 |
| Dimensions (H x W x D) | 5.00 x 2.55 x 5.08 in |
| Weight | 2.0 lb (0.91 kg) |
| Mounting | DIN Rail |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
