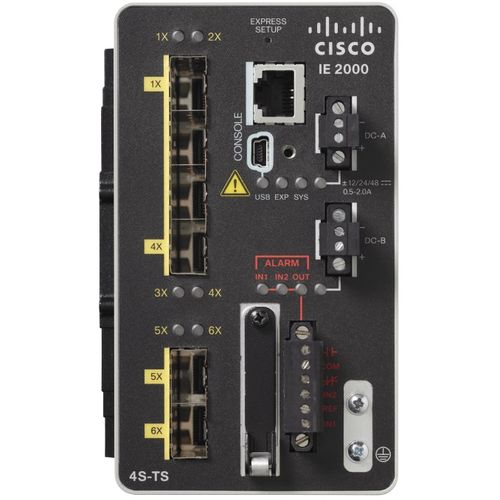

| IE-2000-4TS-L Specification Physical Specification Total Ports | 6 |
| RJ45 ports | 4 FE |
| SFP ports | 2 FE |
| Manufacturing license | LAN Lite |
| Hardware | 256 MB DRAM with ECC memory IEEE 1588v2 FPGA 64 MB on-board flash memory 1GB removable SD flash memory card (optional) Mini-USB connector |
| Alarm | Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay |
| Power consumption | 4-port downlink models: 9.5-15 W |
| Connectors and cabling | 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling |
| Dimensions (H x W x D) including DIN rail | IE-2000 6 ports (copper downlinks) chassis: 5.1”H x 2.95”W x 4.51”D in (130mm H x 74.9mm W x 115mm D) |
| Weight | IE-2000 6 ports chassis: 2.45 lb (1.11 kg) |
| IE2000 Software Features LAN Lite license | Baseline features |
| Layer 2 switching | IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol |
| Layer 2 switching (cont.) | (MRP) Ring (IEC 62439-2) |
| Security | SCP, SSH, SNMPv3, TACACS , RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session |
| Multicast | IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier |
| Management | Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog |
| Industrial Ethernet | EtherNet/IP, Profinet v2 |
| LAN Base license | Additional features |
| Layer 2 switching | VTPv3, EtherChannel, Voice VLAN, Flexlink |
| Security | IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm |
| Security (cont.) | Control, Trust Boundary, Access-List (ACL) |
| Quality of service | IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS |
| Management | Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM) |
| Industrial Ethernet | IEEE 1588 PTPv2 |
| IPv4 routing | IPv4 static routing |
| IPv6 routing | IPv6 host support, HTTP over IPv6, SNMP over IPv6 |
| Enhanced LAN Base | Additional features |
| Industrial management | Layer 2 switching with 1:1 static Network Address Translation (NAT) |
| IP Lite license | Additional features |
| IPv4 routing | RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode. |
| IPv6 Routing | IPv6 Static routing, OSPFv3 |
| Security | FIPS 140-2 |
| Embedded Event Manager | EEM feature enabled with IP Lite license |
| DNA Essentials | Additional features |
| Cisco DNA Center | Discovery, topology, inventory, software image management |
| Visibility | DNA assurance, Device 360 |
| Day-zero network bring-up automation | Cisco Network Plug-and-Play application |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
