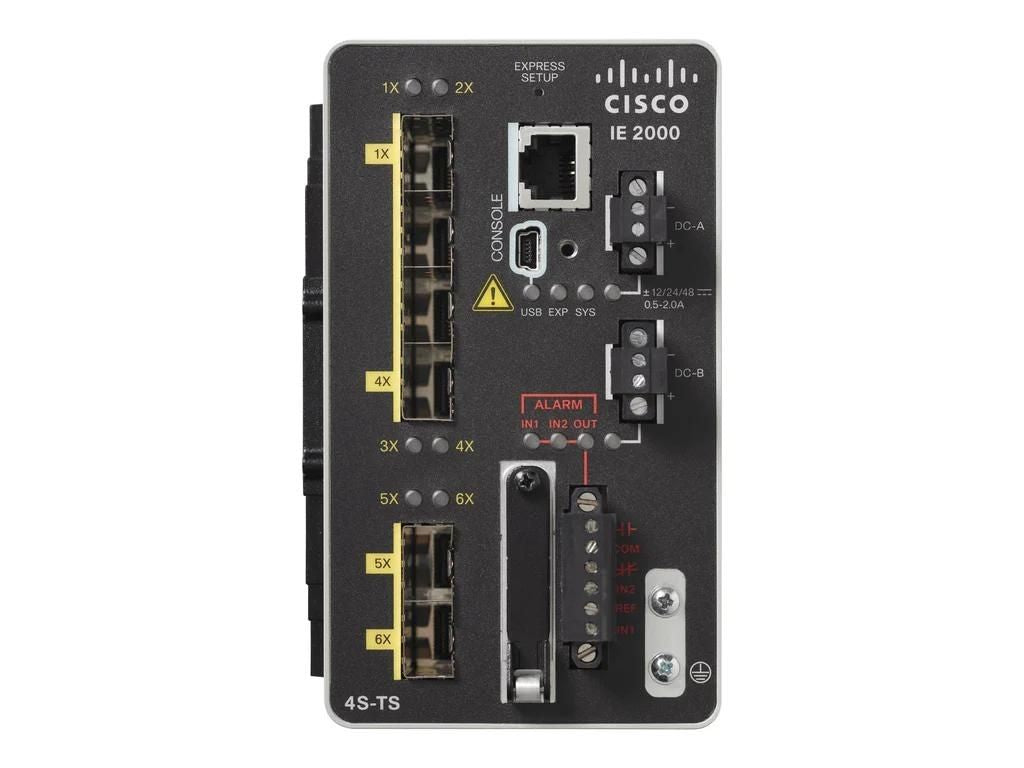

Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base) - New
Roll over image to zoom in Click on image to zoom
Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base) - New

Cisco IE-2000-4S-TS-G-B - IE2000 with 4 FE SFP ports and 2 GE SFP ports (Lan Base) - New

Condition:  new     MPN:  IE-2000-4S-TS-G-B
Price:
$1,998.00
Stock:
In stock
View full product specifications

Overview

IE-2000-4S-TS-G-B Specification
Physical Specification
Total Ports 6
SFP Ports 4 FE, 2 GE
Manufacturing license LAN Base
Hardware
  •   256 MB DRAM with ECC memory
  •   IEEE 1588v2 FPGA
  •   64 MB on-board flash memory
  •   1GB removable SD flash memory card (optional)
  •   Mini-USB connector
Alarm
  •   Alarm I/O: Two alarm inputs to detect dry contact open or close; one alarm output relay
Connectors and cabling
  •   10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
IE2000 Software Features
LAN Lite license Baseline features
Layer 2 switching IEEE 802.1, 802.3, 802.3at, 802.3af standard (see Table 8), VTPv2, NTP, UDLD, CDP, LLDP, Unicast MAC filter, Resilient Ethernet Protocol (REP), Media Redundancy Protocol (MRP) Ring (IEC 62439-2)
Security SCP, SSH, SNMPv3, TACACS , RADIUS Server/Client, MAC Address Notification, BPDU Guard, SPAN session
Multicast IGMPv1, v2, v3 Snooping, IGMP filtering, IGMP Querier
Management Fast Boot, Express Setup, Web Device Manager, CNA, Cisco Prime, LMS, MIB, SmartPort, SNMP, syslog
Industrial Ethernet EtherNet/IP, Profinet v2
LAN Base license Additional features
Layer 2 switching VTPv3, EtherChannel, Voice VLAN, Flexlink
Security IPv4 Port-Security, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, 802.1x, Guest VLAN. MAC Authentication Bypass, 802.1x Multi-Domain Authentication, Storm Control, Trust Boundary, Access-List (ACL)
Quality of service IPv4 Ingress Policing, Rate-Limit, Egress Queuing/Shaping, AutoQoS, PROFINET QoS
Management Port-Based DHCP, Storm Control - Unicast, Multicast, Broadcast, SPAN Sessions, RSPAN, DHCP Server, Customized TCAM/SDM Size Configuration, Embedded Event Manager (EEM)
Industrial Ethernet IEEE 1588 PTPv2
IPv4 routing IPv4 static routing
IPv6 routing IPv6 host support, HTTP over IPv6, SNMP over IPv6
Enhanced LAN Base Additional features
Industrial management Layer 2 switching with 1:1 static Network Address Translation (NAT)
IP Lite license Additional features
IPv4 routing RIP, OSPF, EIGRP, VRF Lite, PIM for L3 multicast routing including sparse (SM) and dense (DM) mode.
IPv6 Routing IPv6 Static routing, OSPFv3
Security FIPS 140-2
Embedded Event Manager EEM feature enabled with IP Lite license
DNA Essentials Additional features
Cisco DNA Center Discovery, topology, inventory, software image management
Visibility DNA assurance, Device 360
Day-zero network bring-up automation Cisco Network Plug-and-Play application

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
