| FPR2140-NGFW-K9 Specification | ||
| Product Number | FPR2140-NGFW-K9 | |

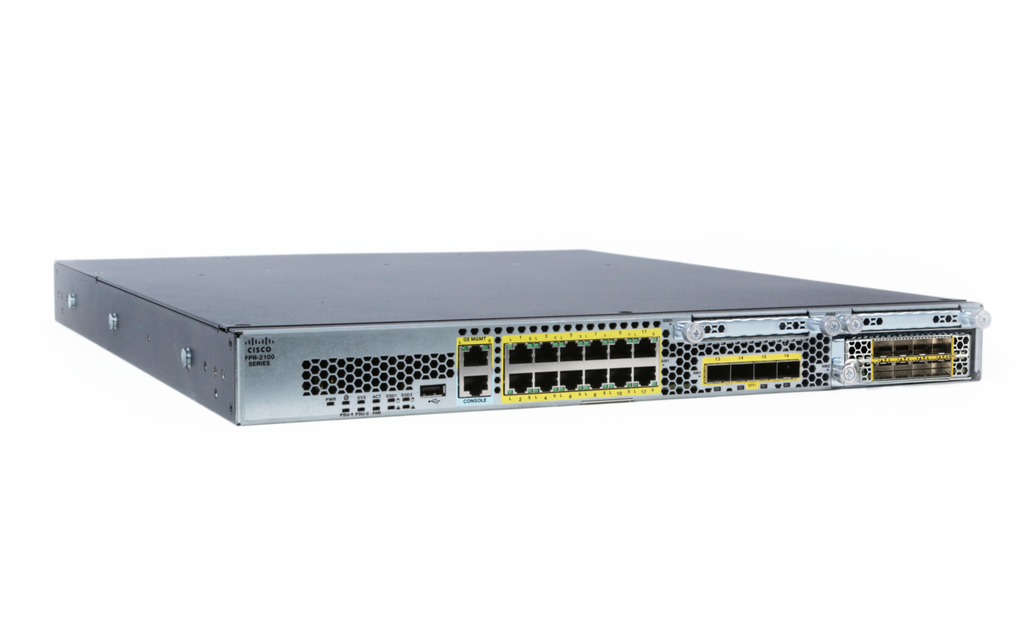

| Product Description | Cisco Firepower 2140 NGFW Appliance, 1RU, 1 x Network Module Bays | |
| Hardware Specifications | ||
| Dimensions (H x W x D) | 1.73 x 16.90 x 19.76 in. (4.4 x 42.9 x 50.2 cm) | |
| Form factor (rack units) | 1RU | |
| I/O module slots | 1 NM slot | |
| Integrated I/O | 12 x 10M/100M/1GBASE-T Ethernet interfaces (RJ-45), 4 x 10 Gigabit (SFP ) Ethernet interfaces | |
| Network modules | (FPR-NM-8X10G) 8 x 10 Gigabit Ethernet Enhanced Small Form-Factor Pluggable (SFP ) network module | |
| Maximum number of interfaces | Up to 24 total Ethernet ports (12x1G RJ-45, 4x10G SFP , and network module with 8x10G SFP ) | |
| Integrated network management ports | 1 x 10M/100M/1GBASE-T Ethernet port (RJ-45) | |
| Serial port | 1 x RJ-45 console | |
| USB | 1 x USB 2.0 Type-A (500mA) | |
| Storage | 1x 200 GB, 1x spare slot (for MSP) | |
| Power supplies | Configuration | Dual 400W AC. Single/dual 350W DC optional |
| AC input voltage | 100 to 240V AC | |
| AC maximum input current | < 6A at 100V | |
| AC maximum output power | 400W | |
| AC frequency | 50 to 60 Hz | |
| AC efficiency | >89% at 50% load | |
| DC input voltage | -48V to -60VDC | |
| DC maximum input current | < 12.5A at -48V | |
| DC maximum output power | 350W | |
| DC efficiency | >88% at 50% load | |
| Redundancy | 1 1 AC or DC with dual supplies | |
| Fans | 1 hot-swappable fan module (with 4 fans) | |
| Noise | 56 dBA @ 25C 77 dBA at highest system performance. | |
| Rack mountable | Yes. Mount rails included (4-post EIA-310-D rack) | |
| Weight | 21 lb (9.53 kg) 2 x power supplies, 1 x NM, 1 x fan module, 2x SSDs | |
| Temperature: operating | 32 to 104°F (0 to 40°C) | |
| Temperature: nonoperating | -4 to 149°F (-20 to 65°C) | |
| Humidity: operating | 10 to 85% noncondensing | |
| Humidity: nonoperating | 5 to 95% noncondensing | |
| Altitude: operating | 10,000 ft (max) | |
| Altitude: nonoperating | 40,000 ft (max) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
