| Brand | Cisco |
| Model | FMC2500-K9 |

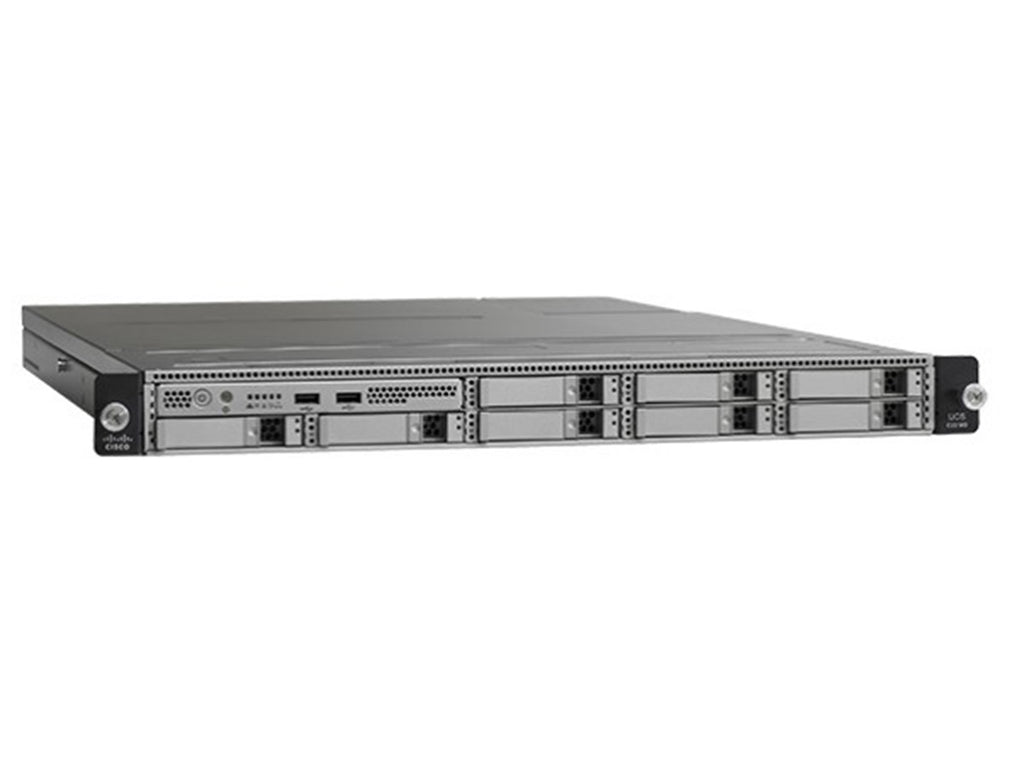

| Product Name | Firepower Management Center 2500 |
| Type | Network Security Management Appliance |
| Form Factor | 1RU |
| Maximum Managed Sensors | 300 |
| Maximum IPS Events | 60 million |
| Event Storage | 1.8 TB |
| Maximum Network Map Size | 150,000 hosts / 150,000 users |
| Maximum Flow Rate | 12,000 flows per second |
| CPU | 2 x Intel Xeon E5-2620 v4 (8-core) |
| Memory | 64 GB (eight 8 GB DDR4-2400 MHz RDIMMs) |
| Drives | Four 600 GB SAS, 2.5 in., 10K RPM, hot-swappable |
| Onboard Ethernet Ports | 2 x 10/100/1000 RJ-45 (eth0 is the default management interface) |
| SFP+ Ports | 2 x 10 Gbps (SFP modules sold separately) |
| Other Ports | 2 USB keyboard ports, VGA (serial console disabled by default) |
| High Availability | Yes |
| Secure Boot | Yes |
| Power Supplies | 2 x 770 W AC, hot-swappable, 1+1 redundant |
| Power Input | 100-240 VAC nominal (90-264 VAC min/max); 9.5 A max at 100 VAC; 4.5 A max at 208 VAC |
| Maximum Power | 770 W |
| Heat Output | 2626 BTU/hr |
| Spare Power Supply (sold separately) | FS-PWR-AC-779W= |
| Cooling | 6 fans, front to back airflow |
| Rack Mounting | Standard 19-in. (48.3 cm) 4-post EIA rack |
| Operating Temperature | 5 C to 35 C (41 F to 95 F); derate by 1 C per 305 m above sea level |
| Storage Temperature | -40 C to 65 C (-40 F to 149 F) |
| Humidity | 10% to 90% non-condensing |
| Operating Altitude | 0 to 10,000 ft |
| Storage Altitude | 0 to 40,000 ft |
| Dimensions (H x W x D) | 1.7 x 16.9 x 29.8 in (4.3 x 42.9 x 75.9 cm) |
| Weight | 34.1 lb (16.8 kg) |
| Shipping Weight | 39 lb (17.7 kg) |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
