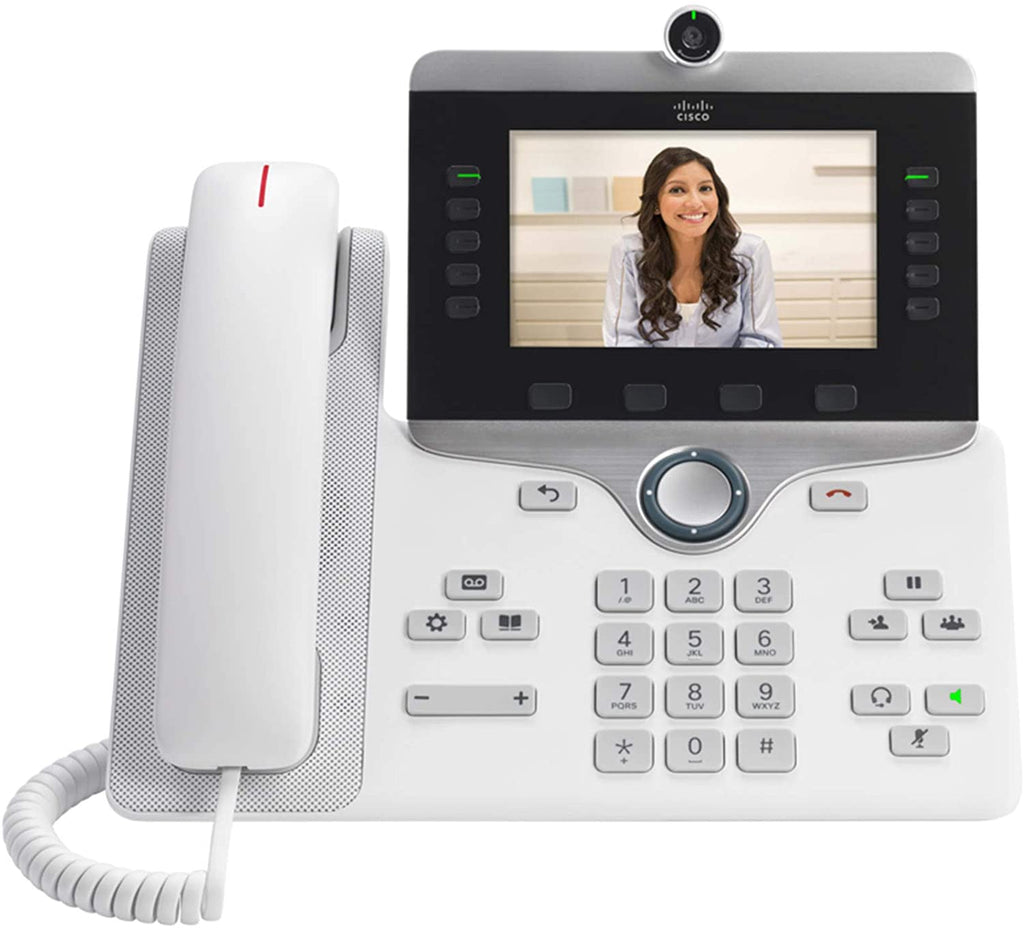

| Product Type | IP video phone |
|---|---|
| Integrated Components | Digital camera Bluetooth interface |
| Weight | 2.98 lbs |
| Body Color | White |
| Body Material | ABS polycarbonate |
| Cordless Phone Standard | IEEE 802.11a/b/g/n/ac (Wi-Fi) |
| Wireless Interface Provided | Bluetooth |
| Bluetooth Profiles | Hands-Free Profile (HFP) Phonebook Access Profile (PBAP) |
| Call Services | Voice Mail Caller ID Call Waiting Call Transfer Call Hold Message Waiting Capability |
| Key Expansion Module Max Qty | 3 |
| Dialer Type | Keypad |
| Dialer Location | Base |
| Conference Call Capability | Yes |
| Intercom | Yes |
| Speakerphone | Yes (digital duplex) |
| Voice Recording | Yes |
| Programmable Buttons Qty | 5 |
| Indicators | New message indicator |
| Additional Functions | Call timer Intercom |
| Additional Features | Music on hold |
| Main Features | Integrated Ethernet switch |
| VoIP | Yes |
| VoIP Protocols | SIP SDP |
| Voice Codecs | G.722 G.729a G.711u G.711a iLBC iSAC |
| Video Codecs | H.264 |
| Lines Supported | 5 lines |
| Quality of Service | IEEE 802.1Q (VLAN) IEEE 802.1p |
| IP Address Assignment | DHCP static |
| Security | 128-bit WEP 40-bit WEP WPA TKIP WPA2 IEEE 802.1X TLS |
| Power Over Ethernet (PoE) Support | Yes |
| Network Protocols | TFTP UDP Cisco Discovery Protocol (CDP) DNS HTTPS Link Layer Discovery Protocol (LLDP) SRTP Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED) RTCP RTP GARP |
| Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
| Compatible Software | Cisco Unified Communications Manager 8.5.1 or later Cisco Unified Communications Manager Express 10.0 or later |
| Network Features | Class 4 PoE |
| Type | LCD display - color |
| Display Location | Base |
| Diagonal Size | 5" |
| Display Resolution | 800 x 480 pixels |
| Color Depth | 24-bit (16.7 million colors) |
| Backlit | Yes |
| Camera Resolution | 1280 x 720 |
| Connections | Headset jack / RJ-9 ¦ 2 x USB / 4 pin USB Type A ¦ Audio line in/out / mini-phone 3.5 mm ¦ Electronic hook switch (EHS) |
| Hearing Aid Compatible | Yes |
| Placing / Mounting | Wall-mountable |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
