| Brand | Cisco |
| Model | ENCS5412/K9 |

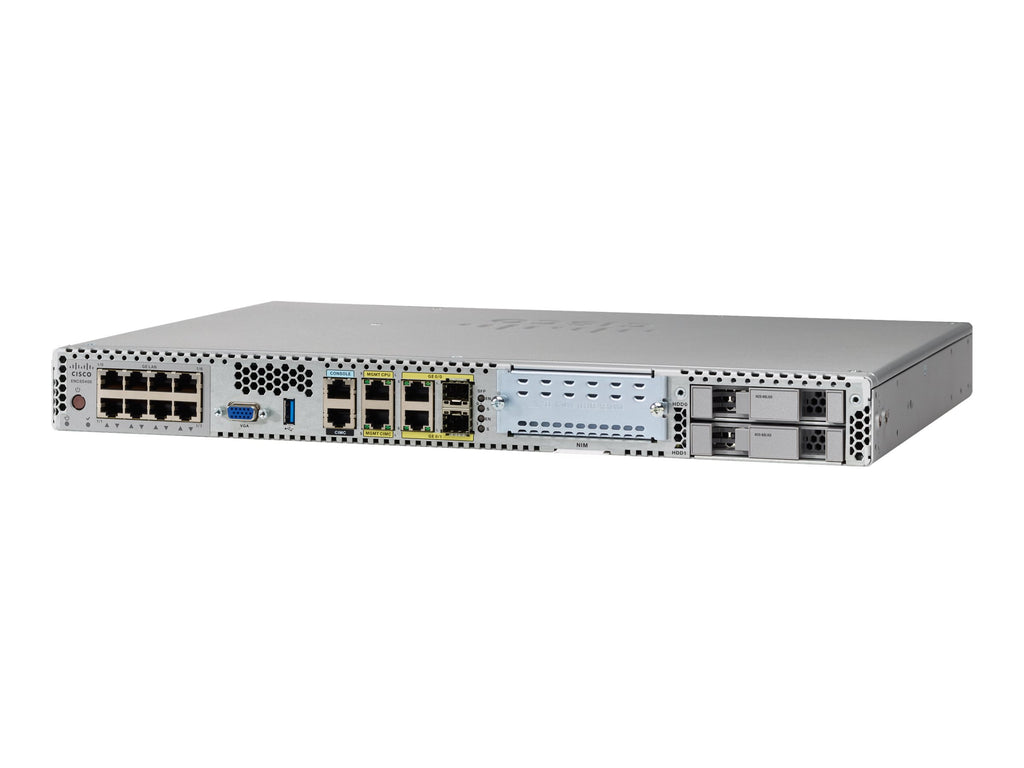

| Product Name | Cisco 5400 Enterprise Network Compute System, 12-Core |
| Series | Cisco 5000 Series Enterprise Network Compute System |
| Processor | Intel Xeon D-1557, 12-core, 1.5 GHz, 18 MB L2 cache |
| Memory | 2 DIMM slots, 8 GB, 16 GB or 32 GB ECC DDR4 modules, 64 GB maximum |
| Motherboard Storage | M.2 SATA, 64 GB default |
| Drive Bays | 2 small form factor bays: 7200-rpm SATA 1 TB or 2 TB, 10000-rpm SAS 1.8 TB, 10000-rpm SAS SED 1.2 TB, SATA SSD 480 GB or 960 GB |
| RAID Controller | Optional LSI MegaRAID SAS 3108 |
| WAN/LAN Ports | 2 x Gigabit Ethernet dual-mode (RJ-45 and SFP) |
| LAN Switch | Built-in 8-port Gigabit Ethernet |
| Management Port | 1 x Gigabit Ethernet for the x86 host |
| NIM Slots | 1, supports online insertion and removal |
| Supported NIM Types | LTE, T1/E1 data, asynchronous, T1/E1 voice, DSL, Gigabit Ethernet |
| USB Port | 1 x USB 2.0 Type A |
| Serial Console | RJ-45, up to 115.2 Kbps |
| Cisco IMC | Emulex Pilot-3 BMC, IPMI 2.0, VGA, USB 3.0 Type A, integrated KVM, 10/100/1000 RJ-45 management port |
| Hardware Offload | Optional Intel XL710 inter-VM traffic offload |
| Power Supply | Single internal supply, AC or PoE (PoE option supported on this model) |
| PoE Output | Universal PoE, up to 60 W per LAN port |
| AC Input | 100 to 240 VAC, 47 to 63 Hz, auto-ranging |
| Power Consumption | 125 W typical without modules, 180 W maximum on AC supply |
| Dimensions | 1.73 x 17.25 x 13.3 in (4.4 x 43.8 x 33.8 cm) |
| Rack Units | 1 RU |
| Weight | 13.0 lb (5.9 kg) without modules or external drives |
| Mounting | 19 in. rack, 23 in. rack or wall mount (optional) |
| Airflow | I/O side to bezel side |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Operating Humidity | 10% to 90% |
| Non-Operating Temperature | -4 to 158°F (-20 to 70°C) |
| Operating Altitude | 0 to 10,000 ft (0 to 3,050 m) worldwide except China; 0 to 6,560 ft (0 to 2,000 m) in China |
| Acoustic Noise | 45.2 dBA sound pressure typical, 61 dBA maximum |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
