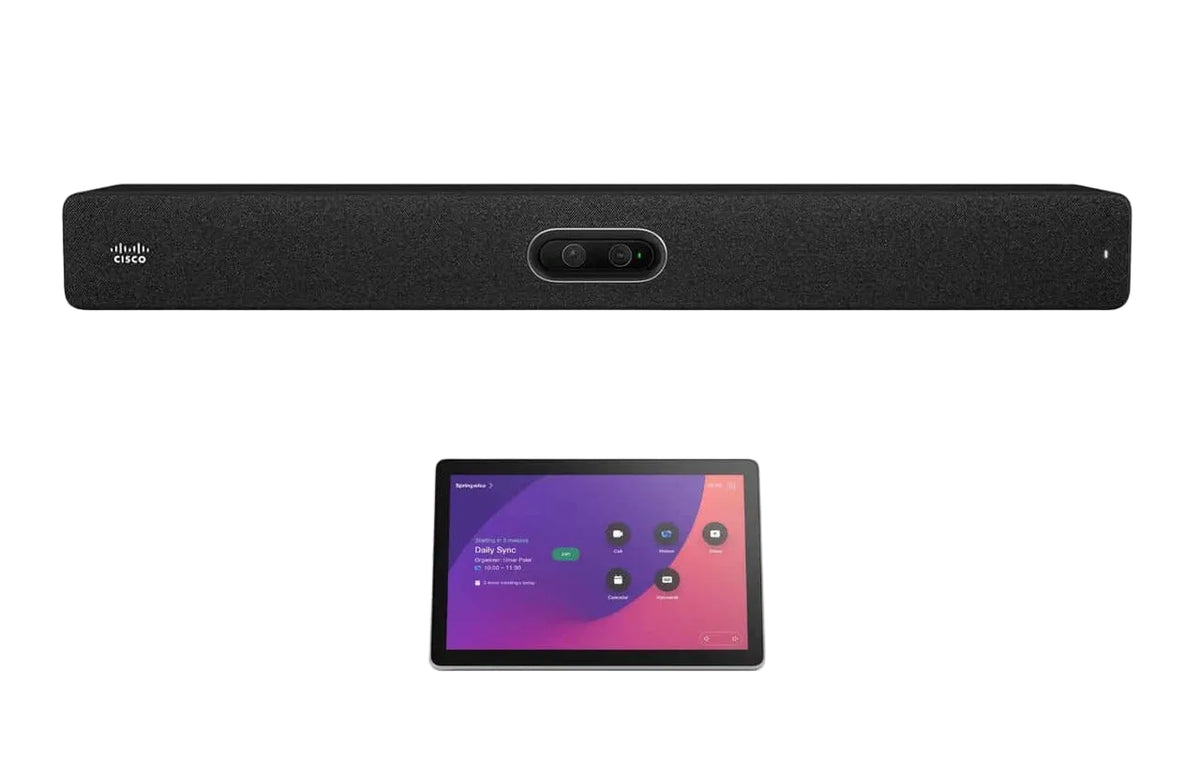

| Brand | Cisco |
| Model | CS-BAR-T-C-K9 |
| Series | Room Bar |
| Product Type | All-in-one video conferencing system |
| Finish | Carbon |
| Room Navigator | Table stand (CS-T10-TS-G) |
| Camera Sensor | 12MP, 1/2.3 in CMOS, fixed focus lens |
| Camera Frame Rate | 30 fps |
| Camera Zoom | 5x digital |
| Camera Aperture | f/2.5 |
| Field of View | 120 degrees horizontal, 95 degrees vertical |
| Camera Framing | Auto framing (face detect), speaker tracking, Frames camera mode |
| Image Control | Auto brightness and white balance, auto rotation when mounted upside down |
| Microphones | 4-element beamforming array plus front-facing microphones for speaker tracking |
| Microphone Coverage | Up to 5 people within 3 m, external microphone for larger rooms |
| Speakers | Stereo, 2 full-range drivers with directional audio |
| Speaker Frequency Response | 100 Hz to 20 kHz (+/-3 dB) |
| Maximum Output | 93 dB SPL |
| Audio Features | Acoustic echo cancellation, AI noise removal, automatic gain control, beamforming, de-reverberation, full duplex, full-band audio, self-hear, spatial audio, active lip sync, ultrasound technology |
| Video Codecs | H.263, H.264, AV1 |
| Audio Codecs | G.711, G.722, G.722.1, G.729, AAC-LD, Opus |
| Content Stream | H.239 (H.323), BFCP/SIP dual stream |
| Video Inputs | 1 x HDMI, 1 x USB-C (up to 3840 x 2160 at 30 fps, 1920 x 1080 at 60 fps) |
| Video Outputs | 2 x HDMI (up to 3840 x 2160 at 60 fps) |
| Live Video Encode and Decode | Up to 1920 x 1080 at 30 and 60 fps |
| Content Resolution | Up to 3840 x 2160 at 15 fps |
| Maximum Bandwidth | 20 Mbps |
| MultiSite | 3-way up to 1920 x 1080 at 30 fps, 4-way up to 1280 x 720 at 30 fps |
| Wireless Sharing | Webex App, Miracast, AirPlay, Teams Cast |
| Audio Inputs | 1 x HDMI, 1 x analog microphone, 1 x DisplayPort/USB-C, 1 x USB-A, 1 x PoE port for Cisco IP microphone, Bluetooth |
| Audio Outputs | 1 x DisplayPort/USB-C, 1 x USB-A, Bluetooth |
| Other Ports | 1 x USB 2.0 Type-A, 1 x micro-USB service port, factory reset pinhole |
| HDMI Control | Consumer Electronics Control (CEC) 2.0 |
| Ethernet | 1 x RJ-45 100/1000 Mbps LAN |
| Navigator Port | 1 x RJ-45 100/1000 Mbps with PoE for direct Room Navigator pairing |
| Wi-Fi | 802.11a/b/g/n/ac, 2.4 GHz and 5 GHz, 2x2 MIMO |
| Bluetooth | Bluetooth and Bluetooth Low Energy |
| IP Networking | IPv4 DHCP, IPv6 static and stateless auto-configuration, 802.1X, 802.1Q VLAN, 802.1p QoS/CoS, DiffServ, DNS, NTP, CDP, URI dialing, HTTP(S) proxy |
| Firewall Traversal | Cisco Expressway, H.460.18, H.460.19 |
| Security | HTTPS and SSH management, end-to-end encryption on Webex, SRTP with AES-128-GCM or AES-256-GCM, WPA3 and WPA3-Enterprise, H.235 v3 and AES, camera privacy cover |
| Software | RoomOS 11 or later (on-premises from RoomOS 10.19.3.0) |
| Platform Support | Native Webex meetings, interoperability with Microsoft Teams, Zoom and Google Meet, Microsoft Teams Rooms on Android |
| Power Input | 100 to 240 VAC, 50/60 Hz, 12 V DC, peak 86 W |
| Power Supply | PSU-12VDC-86W (12 V, 7.0 A, 86.1 W) |
| Power Consumption | 14.3 W active meeting, 8.2 W idle, 7 W networked standby |
| Mounting | Consolidated wall and screen mount, above or below the display, invertible for cable management |
| Package Contents | Room Bar unit, table-stand Room Navigator, 1.5 m HDMI 2.0 cable, 12 V power supply, camera privacy cover, 8 m flat Ethernet cable for Navigator, mounting kit |
| Dimensions (W x H x D) | 21 x 3.2 x 2.5 in (53.4 x 8.2 x 6.4 cm) |
| Weight | 3.3 lb (1.5 kg) |
| Operating Temperature | 32 to 95 F (0 to 35 C) |
| Operating Humidity | 10% to 90% RH |
| Storage Temperature | -4 to 140 F (-20 to 60 C) |
| Storage Humidity | 10% to 90% RH, non-condensing |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
