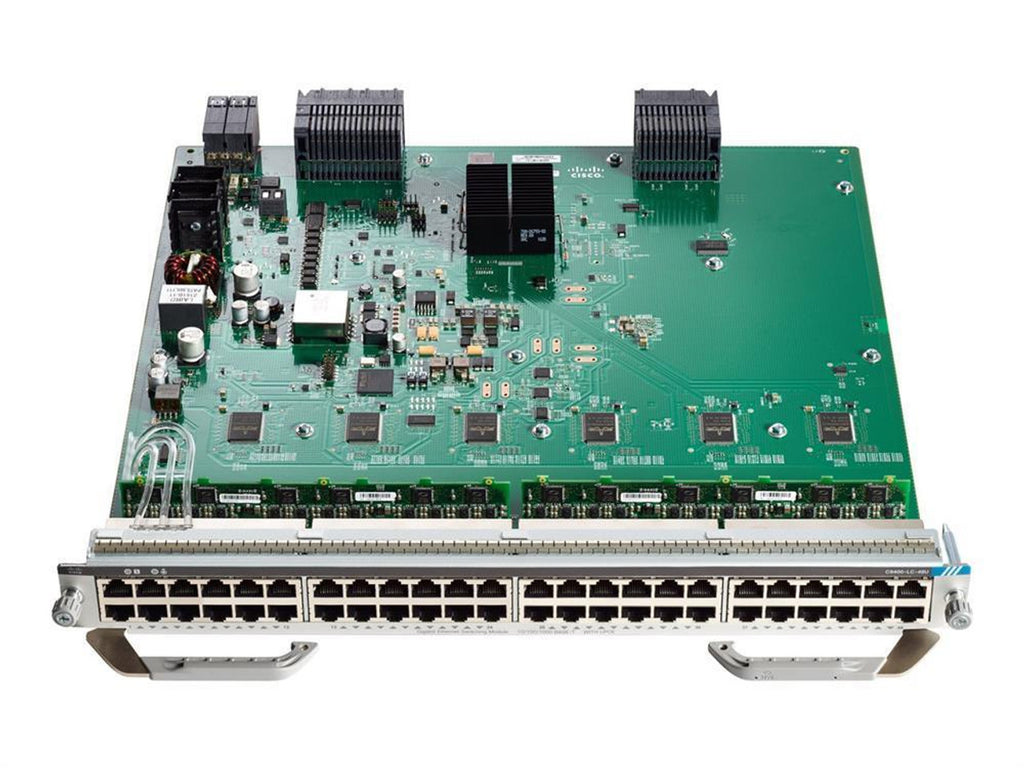

| Model | C9400-LC-48H |
| Series | Cisco Catalyst 9400 |
| Type | Line Card |
| 1GbE Ports | 48 x RJ-45 10/100/1000 Mbps |
| Forwarding Capacity | 48 Gbps per slot |
| MAC Address Table | 32,000 entries |
| Supported Chassis | Catalyst 9407R, 9410R |
| Routing Protocols | BGP, OSPF, OSPFv3, EIGRP, RIP, PIM, VRRP, HSRP |
| QoS | 8 queues per port, 802.1p, DSCP, DWRR, strict priority |
| Security | ACL, 802.1X, MACsec-256, DAI, IP Source Guard, CoPP |
| Multicast | IGMP Snooping v1/v2/v3, MLD Snooping, PIM-SM |
| VLANs | 4,094 |
| Jumbo Frames | 9,198 bytes |
| Management | CLI, SNMP v1/v2c/v3, NETCONF, RESTCONF, gNMI, DNA Center |
| High Availability | SSO, NSF, NSR via chassis supervisor |
| Mounting | Modular card, installs into Catalyst 9400 chassis |
| Dimensions (W x D x H) | 1.57 x 19.29 x 14.17 in |
| Weight | 5.95 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
