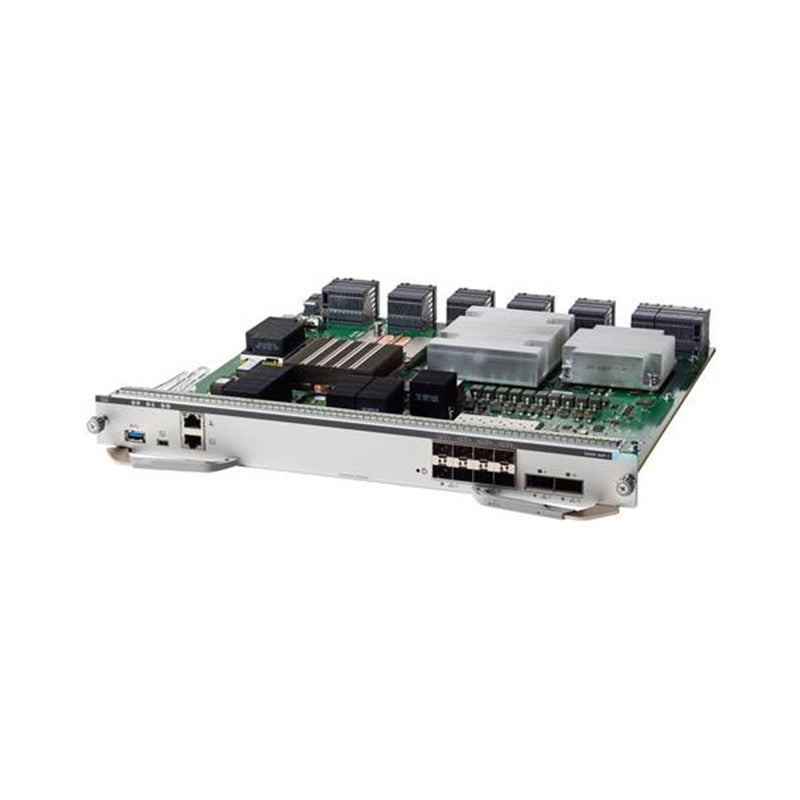

| SKU | C9400-SUP-1XL-Y |
| Series | Cisco Catalyst 9400 |
| Product Type | Supervisor Engine Module |
| Uplink Ports | 2 x 25G SFP28, 8 x 10G SFP+, 2 x 40G QSFP |
| Switching Capacity | 1.44 Tbps (IPv4) |
| Forwarding Rate | 900 Mpps |
| Bandwidth per Slot | 240 Gbps (C9404R), 120 Gbps (C9407R), 80 Gbps (C9410R) |
| ASIC | Cisco UADP 2.0 XL (3-ASIC configuration) |
| CPU | Intel x86, 2.4 GHz |
| Local Storage | Up to 960 GB SATA SSD (container-based app hosting) |
| Max System Port Density | 384 x 10/100/1000 RJ-45, 392 x 1G SFP, 392 x 10G SFP+ |
| PoE Support | UPOE (60W) / PoE+ (30W) on up to 384 ports simultaneously |
| NetFlow | Hardware-based FNF, up to 384,000 flows |
| ASIC Templates | Access, Core, SD-Access, NAT |
| Layer 2 Features | VLANs, MSTP, PVRST+, EtherChannel, StackWise Virtual |
| Layer 3 Features | IPv4/IPv6 dual-stack, MPLS, VRF-Lite, LISP, VXLAN/BGP-EVPN, multicast |
| High Availability | NSF/SSO, ISSU, StackWise Virtual (SVL), N+1/N+N PSU redundancy |
| Security | TrustSec/SGT, ETA, SUDI (MACsec not supported in hardware on supervisor ports) |
| MACsec | Not supported in hardware on supervisor ports |
| Programmability | NETCONF/YANG, streaming telemetry, on-box Python, model-driven APIs, app hosting |
| Management | Cisco DNA Center, CLI, SD-Access |
| Compatible Chassis | C9404R, C9407R, C9410R |
| Compatible Line Cards | C9400-LC-48U, -48T, -48UX, -24XS, -48P, -24S, -48S, -48H, -48HN |
| Dimensions (H x W x D) | 1.60 x 14.90 x 14.60 in. |
| Weight | 10.00 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
