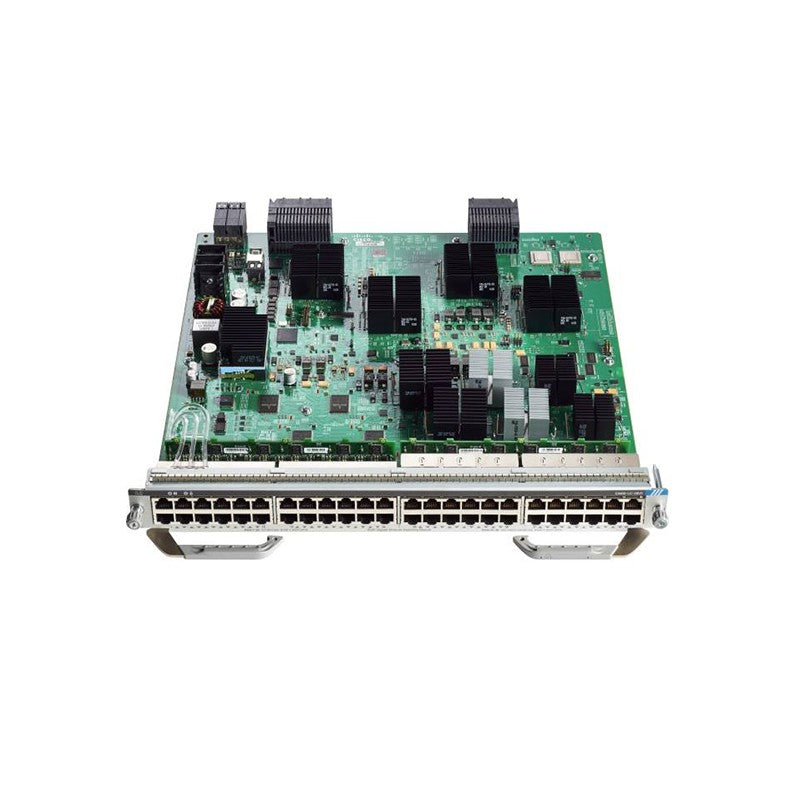

| Brand | Cisco |
| Model | C9400-LC-48UX |
| Series | Cisco Catalyst 9400 Series Switches |
| Cisco Product Description | Cisco Catalyst 9400 Series 48-Port UPOE with 24-port Multigigabit and 24-port 10/100/1000 Mbps |
| Product Type | Modular line card |
| Ports | 48 RJ-45: 24 multigigabit and 24 x 10/100/1000 |
| Multigigabit Ports | 24 x 100M/1G/2.5G/5G/10GBASE-T RJ-45 |
| Gigabit Ports | 24 x 10/100/1000 RJ-45 |
| Multigigabit Cabling | Category 5e and 6 for 100M to 5G, Category 6 for 10G |
| PoE Standards | IEEE 802.3af, IEEE 802.3at, Cisco pre-standard UPOE |
| Power per Port | 15 W (PoE), 30 W (PoE+), 60 W (UPOE) on all 48 ports |
| PoE Cable Distance | Up to 100 m over UTP |
| Port Capacity | Nonblocking at up to 1000 Mbps on all ports |
| Bandwidth per Slot, C9400-SUP-1 | 80 Gbps (C9404R, C9407R, C9410R), 3.3:1 oversubscription |
| Bandwidth per Slot, C9400-SUP-1XL and C9400-SUP-1XL-Y | 240 Gbps (C9404R, 1.1:1), 120 Gbps (C9407R, 2.2:1), 80 Gbps (C9410R, 3.3:1) |
| Bandwidth per Slot, C9400X-SUP-2 | 240 Gbps (C9404R, C9407R, C9410R), 1.1:1 oversubscription |
| Bandwidth per Slot, C9400X-SUP-2XL | 240 Gbps usable by this card on 480 Gbps slots (C9404R, C9407R, C9410R), 1.1:1 oversubscription |
| Multigigabit Standards | IEEE 802.3bz, IEEE 802.3an |
| Encryption | IEEE 802.1AE MACsec-256 in hardware |
| Jumbo Frames | Layer 2 to Layer 4, up to 9216 bytes |
| Energy Efficiency | IEEE 802.3az Energy Efficient Ethernet on the 10/100/1000 ports |
| Per-Port Power Measurement | Yes |
| Per-Port Maximum Power Setting | Yes |
| Cisco Phone Discovery | Yes |
| Time Synchronization | Hardware ready for IEEE 1588 and IEEE 802.1AS |
| Slot Usage | One slot, any non-supervisor slot |
| Compatible Supervisors | C9400-SUP-1, C9400-SUP-1XL, C9400-SUP-1XL-Y, C9400X-SUP-2, C9400X-SUP-2XL |
| Ports per Chassis (min / max) | C9404R 48 / 96; C9407R 48 / 240; C9410R 48 / 384 |
| Status LED | Green: diagnostics passed and operational; amber: booting, running diagnostics or disabled; red: non-port test failed; off: disabled or no power |
| Locate LED | Blue: module is receiving a beacon |
| Port Link LED | Green: link up, blinking with activity; amber: administratively down, blinking if link is faulty; alternating green and amber: error packets; off: no link |
| Maximum Rated Power | 240 W |
| Typical Power Draw | About 40 to 75% of maximum rated power |
| MTBF | 469,550 hours |
| Dimensions (H x W x D) | 1.6 x 14.92 x 14.57 in (4.06 x 37.90 x 37.00 cm) |
| Operating Temperature | 23 to 113 F (-5 to 45 C), up to 6,000 ft (1800 m) |
| Storage Temperature | -40 to 158 F (-40 to 70 C) |
| Relative Humidity | 10 to 95%, noncondensing |
| Operating Altitude | -60 to 3000 m |
| Certifications | EMC: 47 CFR Part 15, CISPR22 Class A; safety: UL 60950-1, IEC 60950-1 |
| Related Models | C9400-LC-48U (48 x 10/100/1000, UPOE), C9400-LC-48HX (48 multigigabit, UPOE+ 90 W), C9400-LC-48P (PoE+), C9400-LC-48T (no PoE) |
