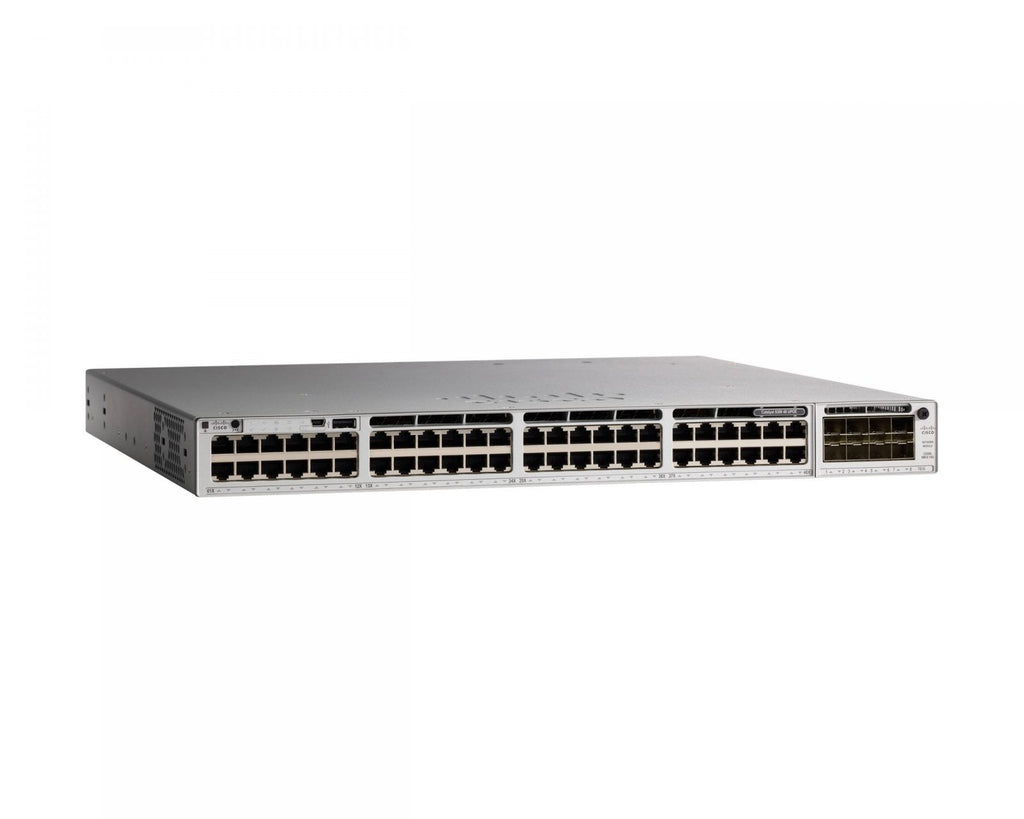

| Manufacturer | Cisco |
| Product Line | Cisco Catalyst |
| Series | Catalyst 9300L |
| Product Type | Stackable Managed Switch |
| Ports | 48 x 10/100/1000 PoE+ RJ45 + 4 x 1G/10G SFP+ fixed uplinks |
| PoE Standard | IEEE 802.3af / 802.3at (PoE+) — up to 30W per port |
| PoE Budget | 505W (primary PSU) / 720W (with secondary PSU) |
| PoE Features | Perpetual PoE, Fast PoE |
| Switching Capacity | 176 Gbps (496 Gbps with stacking) |
| Forwarding Rate | 130.95 Mpps (369.05 Mpps with stacking) |
| MAC Address Table | 32,000 entries |
| VLANs | 4,000 |
| IPv4 Routes | 32,000 (24,000 direct + 8,000 indirect) |
| IPv6 Routes | 16,000 |
| Multicast Routes | 8,000 |
| ACL Scale | 5,120 entries |
| FNF Entries | 64,000 flows |
| Stacking | StackWise-320 — up to 8 C9300L switches, 320 Gbps; C9300L-STACK-KIT required (sold separately) |
| Layer 3 | OSPFv2/v3, EIGRP, BGP, VRF-Lite, MPLS, VXLAN EVPN, PIM-SM/SSM |
| Security | MACsec 256-bit, TrustSec SGT, 802.1X, DHCP snooping, IP Source Guard, CoPP, Trustworthy Systems |
| License | Network Advantage |
| DRAM | 8 GB |
| Flash | 16 GB |
| Operating System | Cisco IOS XE |
| Power Supply | 1x PWR-C1-715WAC-P included — 2 slots, second PSU optional |
| Fans | 3 (field-replaceable, N+1 redundancy) |
| Form Factor | 1U rack-mountable |
| Dimensions | 1.73 x 17.50 x 17.70 in. |
| Weight | 15.46 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
