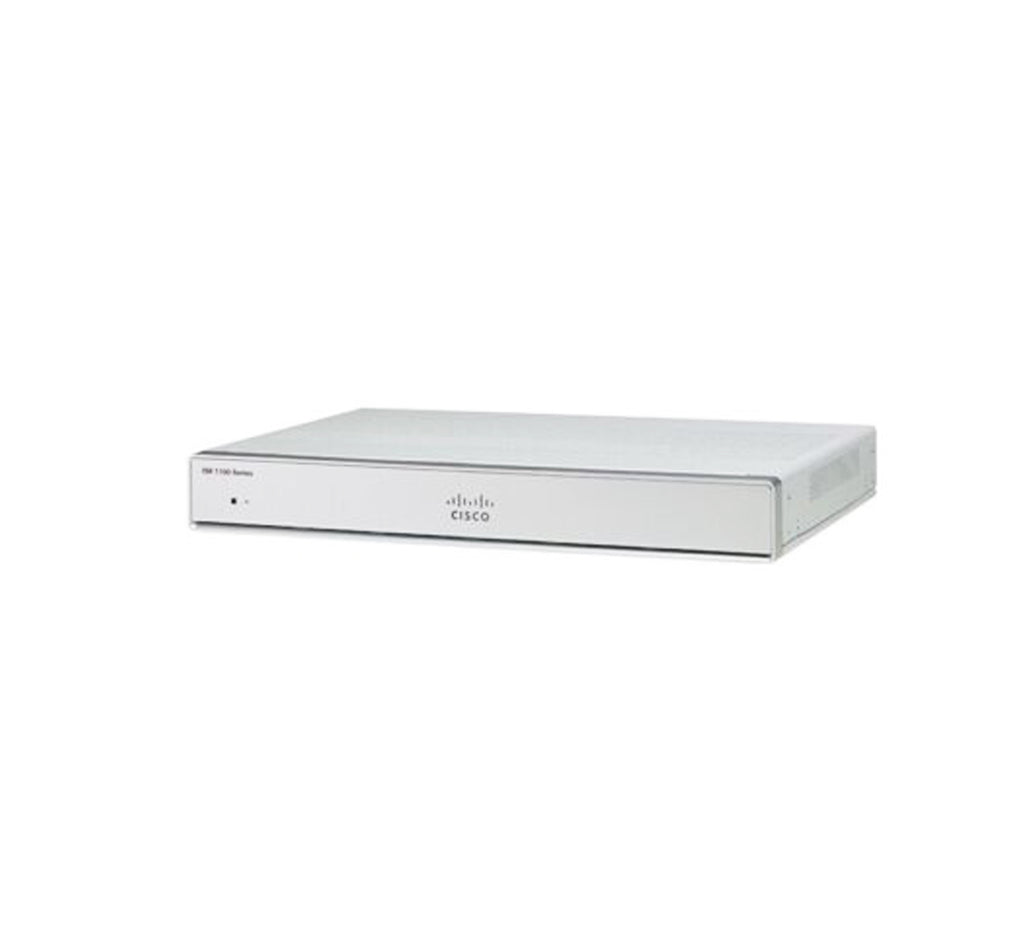

Cisco C1111-4P 4 Ports Dual GE WAN Ethernet Router - New
Roll over image to zoom in Click on image to zoom
Cisco C1111-4P 4 Ports Dual GE WAN Ethernet Router - New

Cisco C1111-4P 4 Ports Dual GE WAN Ethernet Router - New

Condition:  new     MPN:  C1111-4P
Price:
$606.00
Stock:
In stock
View full product specifications

Overview

C1111-4P Specification
Description ISR 1100 4 Ports Dual GE WAN Ethernet Router
Physical Properties
Dimensions (H x W x D) Non-LTE models: H x W X D = 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) (includes rubber feet)
Weight with AC PS (w/o modules) 5.5 Lbs. (2.5 kg) maximum
AC Input Power
Input voltage Universal 100 to 240 VAC
Frequency 50-60 Hz
Input current PoE not enabled: 0.82A maximum PoE enabled: 1.55A Maximum
Surge current 90 A peak and less than 8 Arms per half cycle
Ports
Micro USB Port One RJ-45: Separate console port
USB port USB 3.0 Type A host port USB devices supported: USB flash memory
Console port One USB 5-pin micro Type B: Console management connectivity
10/100/1000 Gigabit Ethernet Two GE ports allocated among RJ45 and SFP as: One combo port with 10/100/1000RJ-45 Ethernet port or SFP Ethernet port (labeled GE0/0/0) One dedicated 10/100/1000RJ-45 Ethernet port (labeled GE0/0/1)
Wireless VLANs 32 (encrypted and non-encrypted VLANs)
Wireless specifications 2x2 .11ac Wave 2
Default and maximum DRAM 4GB
Default and maximum flash 4GB
Inline PoE 4 ports for -8P PIDs, 2 ports for -4P PIDs 802.3af-compliant PoE or 802.3at-compliant PoE
Acoustic for Cisco 1100 Series ISRs Not Applicable - Fanless design
Approvals and compliance Emission 47 CFR Part 15   CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 A1: 2015 KN35: 2015 TCVN 7317: 2003
Environmental
Operating humidity 5 to 85% relative humidity
Operating temperature 32 to 104°F (0 to 40°C) Sea Level; 32 to 77°F (0°C to 25°C) at 10,000 ft 1.5°C derating per 1000 ft
Altitude in China 0-6560 ft (0-2000 m)
Altitude in all other countries 0-10,000 ft (0-3050 m)
Transportation and Storage
Nonoperating temperature -40 to 158°F (-40 to 70°C)
Nonoperating humidity 5 to 95% relative humidity (noncondensing)
Nonoperating altitude 0 to 15,000 ft (0 to 4570m)

  • We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
  • Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
