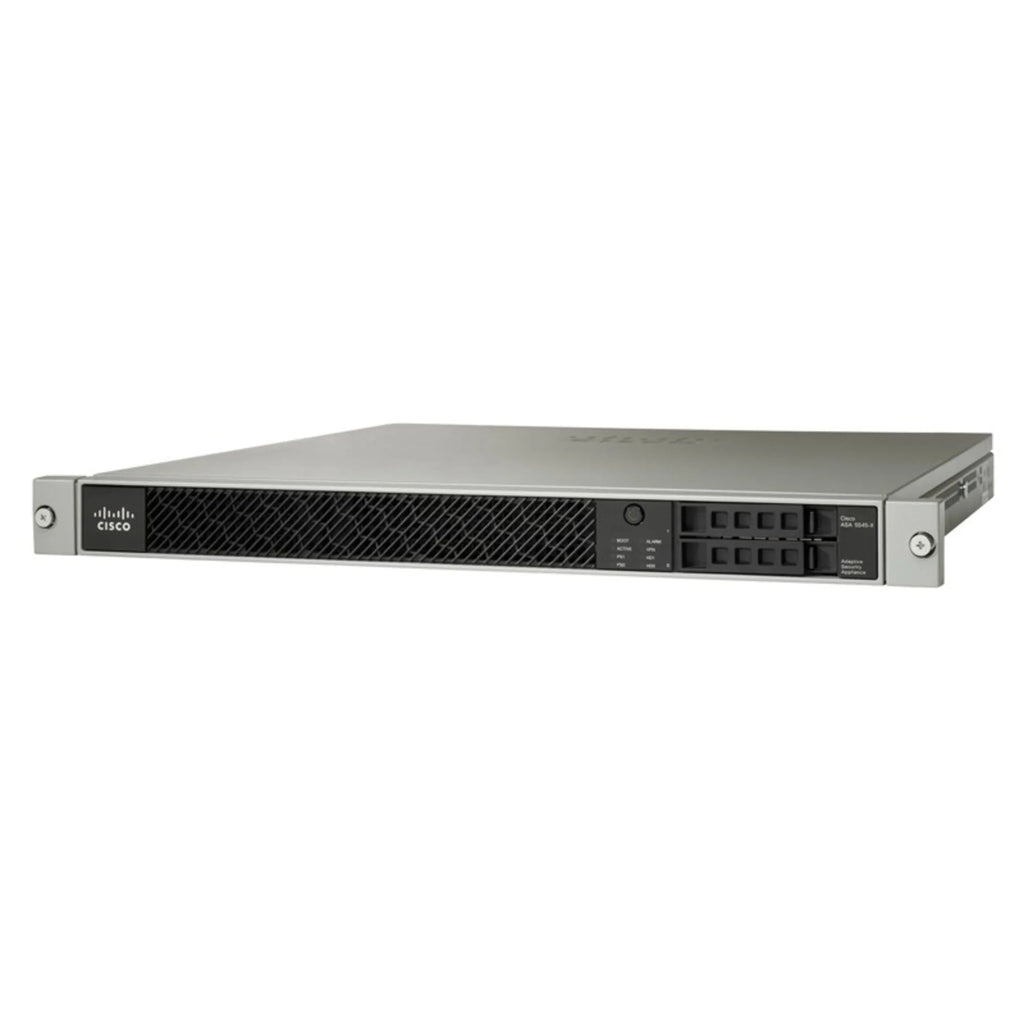

| Product | ASA5555-K8 |
| Device Type | Security appliance |
| Rack Units | 1U |
| Width | 16.9 in |
| Depth | 19.1 in |
| Height | 1.7 in |
| Weight | 16.75 lbs |
| RAM | 16 GB |
| Form Factor | Rack-mountable |
| Ports | 8 |
| Connectivity | Wired |
| Data Link Protocol | Gigabit Ethernet |
| Performance |
Firewall throughput: 4 Gbps VPN throughput (3DES/AES): 700 Mbps Connection rate: 50,000 connections/sec IPS throughput: 1.3 Gbps |
| Capacity |
IPsec VPN peers: 5,000 SSL VPN peers: 2 Concurrent sessions: 1,000,000 VLANs: 500 Security contexts: 2 |
| Status Indicators | Power, HDD activity, active, alarm |
| Features | Firewall, VPN, VLAN, High Availability |
| Encryption | DES |
| Expansion Slots | 1 total / 1 free |
| Interfaces |
8 × 1000Base-T RJ-45 1 × 1000Base-T management RJ-45 1 × management RJ-45 2 × USB 2.0 Type-A |
| Rack Mount Kit | Included |
| Certifications | FCC Part 15 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CISPR 22, EN55022 Class A, EN55024, ICES-003, VCCI, C-Tick |
| Power Supply | Internal |
| Installed Power Supplies | 1 |
| Max Power Supplies | 2 |
| Power Redundancy | Optional |
| Input Voltage | AC 120/230 V (50/60 Hz) |
| Power Output | 400 W |
| Software Included | Drivers & Utilities |
| Operating Temperature | 23°F to 104°F |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
