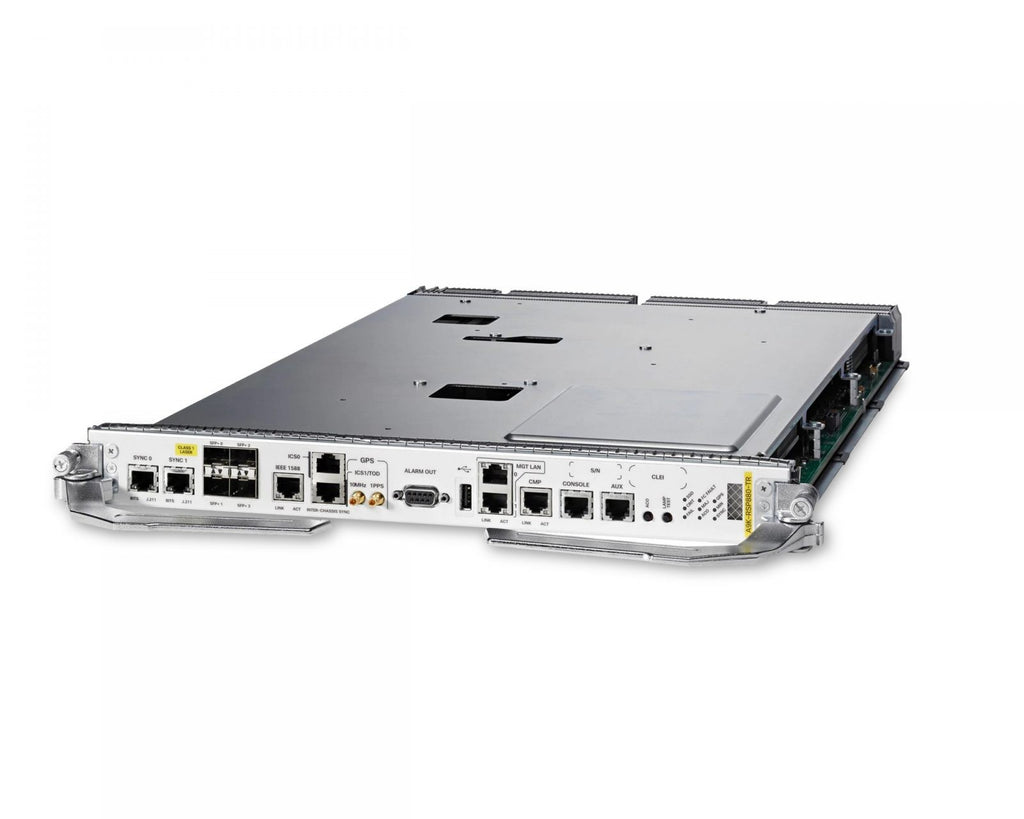

| Manufacturer | Cisco |
| Model | A9K-RSP880-LT-SE |
| Series | ASR 9000 |
| Module Type | Route Switch Processor 880-LT (Service Edge Optimized) |
| Switch Fabric Capacity | 880 Gbps |
| Memory | 32 GB ECC-protected DRAM |
| Flash | 8 GB |
| Storage | 2 x 128 GB SSD |
| Redundancy | 1+1 RSP redundancy (NSF/NSR, no single point of failure) |
| Operating System | Cisco IOS XR |
| Chassis Compatibility | ASR 9006, 9010, 9904, 9906, 9910 |
| Line Card Compatibility | 2nd through 5th generation ASR 9000 line cards (SE and TR variants) |
| Timing | SyncE, IEEE 1588v2 PTP (dedicated Ethernet port), BITS (centralized) |
| GPS | ToD (RS-232/422), 1PPS, 10 MHz in/out |
| Management Interfaces | 2 x 1000BASE-T RJ-45 LAN Management, Console port (RJ-45), Auxiliary port (RJ-45), RS-232/422, USB 2.0 Type-A |
| Status Indicators | Power, HDD activity, Status, Alarm LEDs |
| Routing Protocols | BGP, OSPF, OSPFv3, IS-IS, EIGRP, RIP, Static Routing, Segment Routing |
| MPLS | LDP, RSVP-TE, MPLS TE-FRR, P2MP-TE, Segment Routing |
| VPN Services | L2VPN, L3VPN, EVPN, VPLS, MC-LAG, IRB, mVPN |
| QoS | Hierarchical QoS (H-QoS), service intelligence, traffic prioritization |
| High Availability | NSF/NSR, SMU hitless patching, FPD upgrades, distributed route processing |
| Compliance | NEBS Level 3 (SR-3580, GR-1089-CORE, GR-63-CORE), ETSI, RoHS |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Humidity | 10% to 90% (non-condensing) |
| Dimensions (H x W x D) | 1.6 x 15.9 x 24.6 in |
| Weight | 20.39 lbs |
Overview
- We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
- Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
