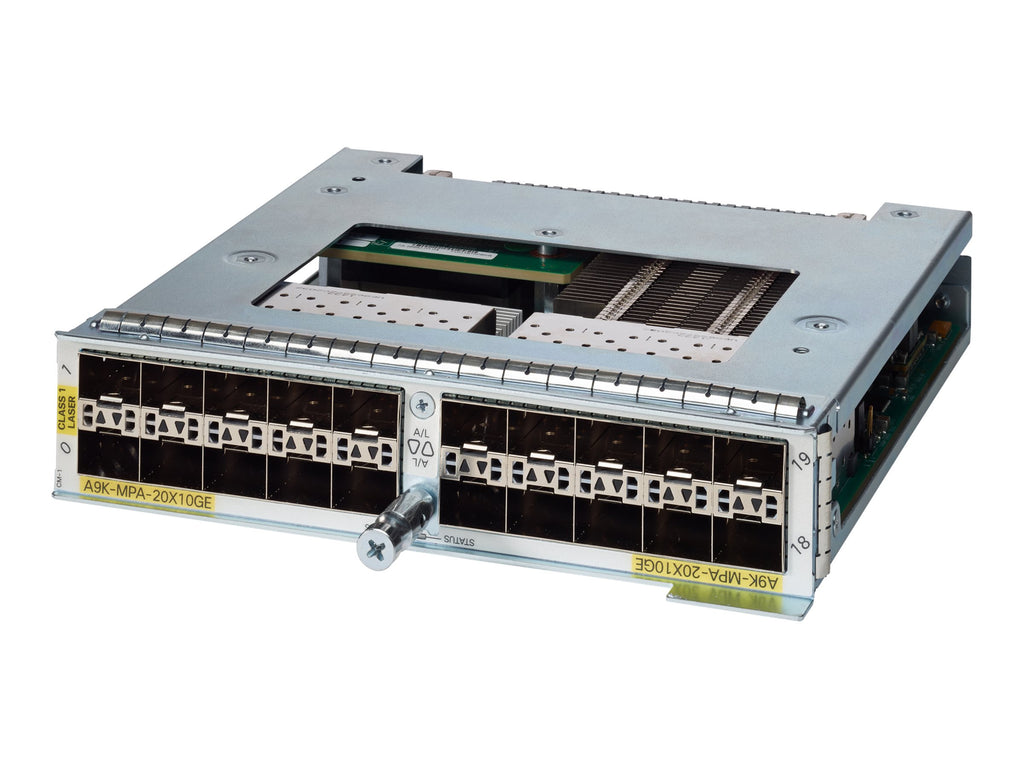

CISCO A9K-MPA-20X10GE MODULE 20-PORT 10-GIGABIT PORT ADAPTER ASR 9000

Roll over image to zoom in Click on image to zoom

Cisco Ethernet Modular Port Adapter – Expansion module – 10 Gigabit SFP x 20 – for ASR 9006 – 9010 – 9904 – 9910 – 9912 – 9922

Device Type	Expansion module
Form Factor	Plug-in module
Ports	10 Gigabit SFP x 20
Connectivity Technology	Wired
Data Link Protocol	10 Gigabit Ethernet
Data Transfer Rate	10 Gbps
Features	Flow control full duplex capability layer 3 switching layer 2 switching MPLS support Quality of Service (QoS) NetFlow
Compliant Standards	IEEE 802.3x IEEE 802.3ah IEEE 802.1ag ITU-T G.709
Interfaces	20 x 10Gb Ethernet - SFP
Compliant Standards	NEBS level 3 FCC Class A certified ETSI CISPR 22 Class A EN 61000-3-2 EN55022 VCCI Class A ITE EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 AS/NZ 3548 Class A ICES-003 Class A EN 61000-4-5 EN 61000-4-11 Laser Class 1 EN 61000-4-8 UL 60950-1 IEC 60950-1 EN 60950-1 EN 60825 FDA CSA C22.2 No. 60950-1 BSMI Class A GR-1089-CORE EN 300 386
Width	6.4 in
Depth	6.7 in
Height	1.4 in
Weight	34.92 oz

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
