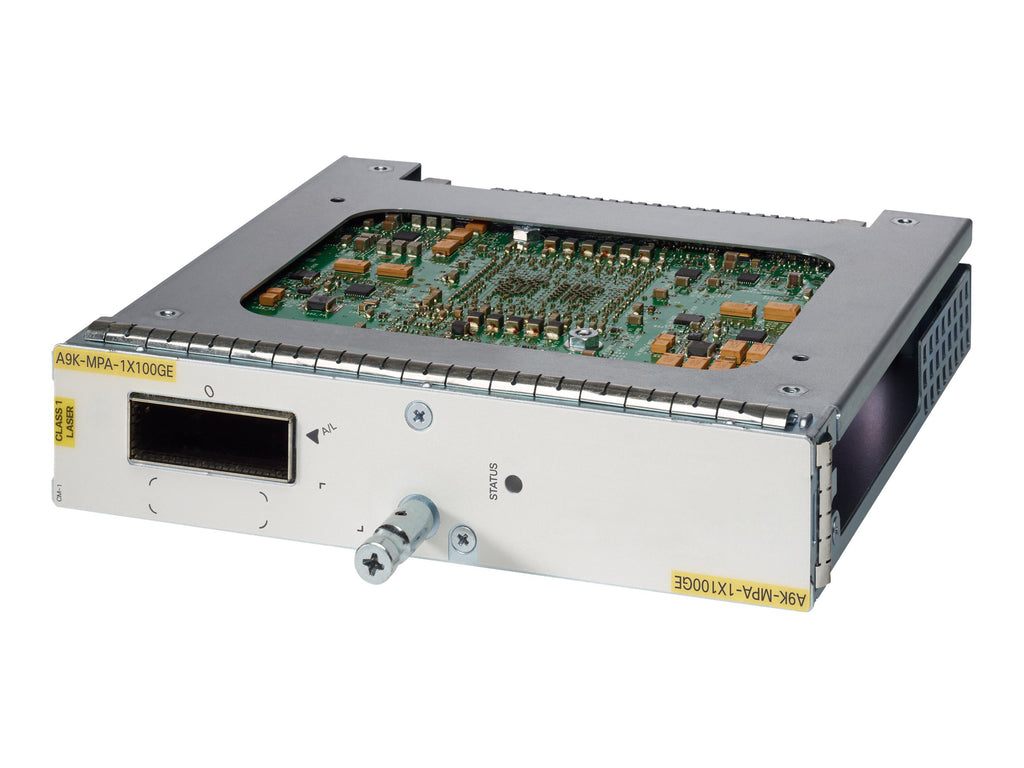

CISCO A9K-MPA-1X100GE ASR 9000 1-PORT 100-GIGABIT ETHERNET MODULAR PORT ADAPTER

Roll over image to zoom in Click on image to zoom

CISCO A9K-MPA-1X100GE

The Cisco ASR 9000 Series 400G and 200G Modular Line Cards provide customers with a highly flexible solution. They support multiple combinations of Ethernet ports, all in a single slot of the Cisco ASR 9000 Series Aggregation Services Routers (ASR 9000 Series). These modular line cards have two open bays (bay 0 and bay 1) for plugging in ASR 9000 Series Modular Port Adapters (MPA), which gives network operators the flexibility to choose the ideal port density, speed, and optic based on their network requirements. With ASR 9000 Series modular line cards and the MPA portfolio, Cisco continues to focus on investment protection, along with consistent feature support, broad interface availability, and the latest technology. The latest additions to the MPA portfolio include the Cisco ASR 9000 Series 20-Port 10GE Modular Port Adapter, the 2-Port 100GE Modular Port Adapter, the 1-port 100G and 2-port 100G Modular Port Adapter and the MACSec enabled 32 port 1GE Modular Port Adapter.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Device Type	Expansion module
Form Factor	Plug-in module
Ports	100 Gigabit Ethernet x 1
Connectivity Technology	Wired
Data Link Protocol	100 Gigabit Ethernet
Data Transfer Rate	100 Gbps
Features	Flow control full duplex capability layer 3 switching layer 2 switching MPLS support Quality of Service (QoS) NetFlow Virtual Circuit Connectivity Verification (VCCV)
Compliant Standards	IEEE 802.3ah IEEE 802.1ag
Interfaces	1 x 100Gb Ethernet - CFP2
Compliant Standards	NEBS level 3 FCC Class A certified ETSI CISPR 22 Class A EN 61000-3-2 EN55022 VCCI Class A ITE EN 61000-3-3 EN55024 EN50082-1 EN 61000-6-1 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6 AS/NZ 3548 Class A ICES-003 Class A EN 61000-4-5 EN 61000-4-11 Laser Class 1 EN 61000-4-8 UL 60950-1 IEC 60950-1 EN 60950-1 EN 60825 FDA CSA C22.2 No. 60950-1 BSMI Class A GR-1089-CORE EN 300 386 ITU Y.1731
Width	6.4 in
Depth	6.7 in
Height	1.4 in
Weight	32.1 oz

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
