CISCO A99-RSP-TR 9900 ROUTE PROCESSOR

Roll over image to zoom in Click on image to zoom

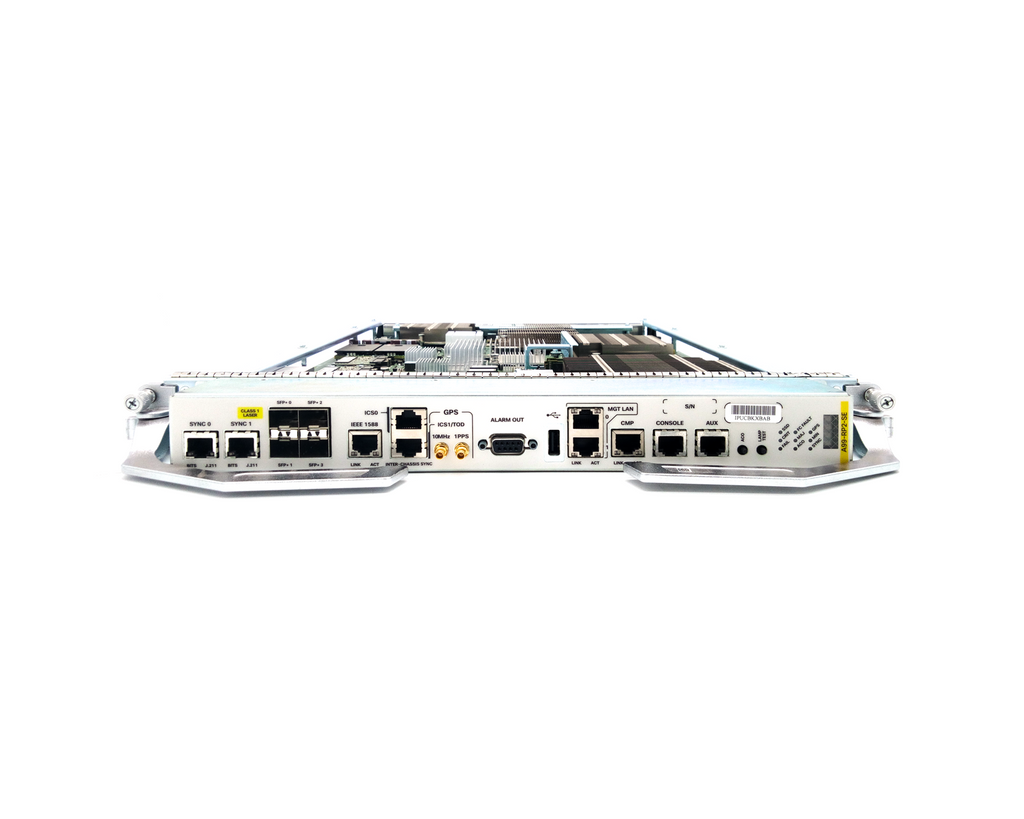

Cisco A99-RSP-TR

Cisco A99-RSP-TR is the Cisco ASR 9900 Route Processor 2 is the next-generation system processor for the Cisco ASR 9912 Router and ASR 9922 Router chassis, supporting the high-density 100 Gigabit Ethernet line cards. The Cisco ASR 9900 Route Processor 2 is designed with a system architecture to accommodate new programmable deployment models and convergence of Layer 2 and Layer 3 services as required by today's service providers in wireline, data-center-interconnect (DCI), and Radio Access Network (RAN) aggregation applications.

Cisco A99-RSP-TR brings the time-tested and robust carrier-class capabilities of Cisco IOS XR Software to the Carrier Ethernet edge. The operating system supports true software process modularity, and it allows each process to run in separate protected memory, including each routing protocol, along with multiple instances of control, data, and management planes supported. The software also supports distributed route processing.

The Cisco ASR 9900 RSP is designed to deliver the high scalability, performance, and fast convergence required for today's and tomorrow's demanding video, cloud, and mobile services. These features provide exceptional scale, service flexibility, and high availability.

Customer Support

We commit to providing excellence in customer service. We are available 24/7, highly responsive, transparent and offer product, transaction and logistics support.
Our philosophy is to be a part of the solution for our clients, so please contact us with any questions or concerns. Check our feedback rating to see what others thought about their experience with us. We look forward to offering you a Five Star member service.

For more information please visit our support page.

Technical Specifications

Internal Memory

● Control of up to seven switch fabrics (two located on the RSP and five on dedicated switch fabric cards) ● ASR 9910 and ASR 9906 RSP for Packet Transport 16 Gb (product number: A99-RSP-TR): 16-GB Error-Correcting Code (ECC)-protected DRAM ● ASR 9910 and ASR 9906 RSP for Service Edge 32 Gb (product number: A99-RSP-SE): 32-GB ECC-protected DRAM ● Solid-state drive: Two 32-GB SSDs ● 8-GB embedded USB ● USB 2.0 Type A receptacle

Timing System

● Timing: Two independent clock source connections ● IEEE 1588 support: Copper 10-Mbps and 100-Mbps RJ-45 Ethernet port

GPS

● ToD (RS-422 and RS-232) ● 1-pps RS-422 or 1.0/2.3 50-ohm RF connector ● 10-MHz in/out 1.0/2.3 50-ohm RF connector

Management

● Two 100/1000BASE-T (RJ-45) LAN management ports ● One console port ● One auxiliary port

Alarms

● Alarm outputs: Critical alarm (CR), Major alarm (MJ), and Minor alarm (MN)

LEDs

● Amber Alarm Cutoff (ACO) and lamp test ● System Synchronization alarm (SYNC) ● GPS ● Fabric-card fault indicator ● SSD

We perform an intensive quality control process on all our products. Units (unless sealed in the original manufacturer’s packaging) are fully tested and certified by our technicians. We run and record diagnostics on serial and operating systems, ensuring they function to the industry standard.
Unless the listing specifies otherwise, this product comes with a 1 Year Warranty for the original purchaser as enduser of the equipment, applicable to items sold in the United States only. All others sales are supported by a 90 day extended warranty.
